Best MS Flanges Manufacturer in India.
Get durable mild steel flanges directly from the manufacturer! Contact us now for a free quote!

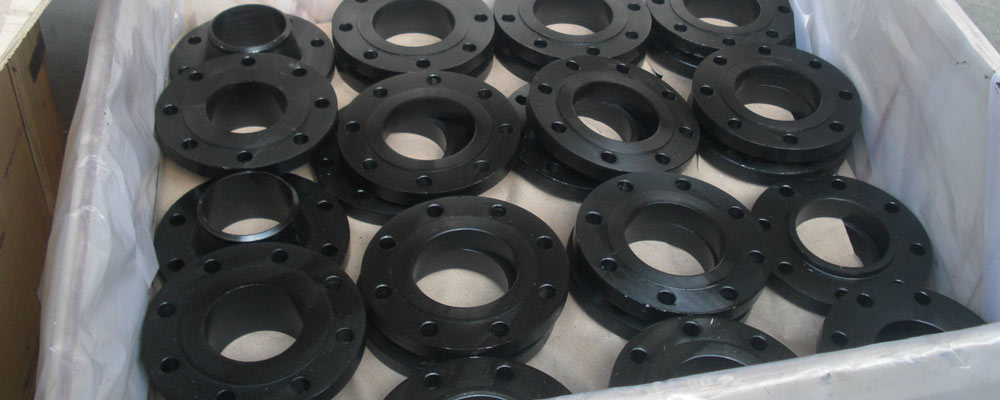

MS Flanges
MS Pipe Flanges, MS Puddle Flange, MS Threaded Flange, MS Blind Flange, MS Slip On Flange, MS Flanges Manufacturer in Mumbai.
Rajdhan Metal is one of the prominent manufacturers, exporters and suppliers of mild steel flanges in Mumbai, India. Our company has established itself as reputable throughout this industry to offer quality products and services to our clients. These qualities have helped us to establish ourselves as a leading supplier and distributor of MS flanges across industries.
MS flanges which stands for Mild Steel flanges are used within the piping systems. These are used to join pipes, valves, pumps and other equipment in a way that provides a leakage proof joint. MS flanges are usually strong, cheap and can be used in various applications, making them popular.
India's Top Leading MS Flanges Manufacturer in Mumbai, India
Our MS flanges are available in many different categories to cater to the requirements of a client. The product range offered by us comprises MS Slip-On Flange used in low pressure systems that can be easily installed; MS Blind Flange used to blind off the ends of piping systems for a tight seal; MS Threaded Flange used in place of Welded Flange, where it is not possible to weld; and MS Puddle Flange that helps prevent water leakage through wall openings.
Our MS flanges are accurately made and meet the set quality specifications. They are made of high-quality mild steel material, and are thus durable and can be used in various industries; they are resistant to corrosion, and therefore can last a long time; they are relatively cheap, but not of low quality. MS flanges are used in many industries, for example, industrial piping in manufacturing industries, water supply system in the oil and gas industries as pipe connectors for the transportation of oil and gas, and construction industries for structural purposes due to their strength and durability.
We also offer our clients the MS flange weight chart as well as the MS flange price list. We have affordable prices for our products depending on the size and type, for instance, the 6-inch MS flange price. We are one of the topmost MS flange manufacturers in Mumbai and India and ensure to provide our customers with genuine mild steel pipe flanges.
MS Flanges Specifications
| Size | 1/2″ to 60″, DN 15 to DN 1500 | |
| Face Type | Flat Face Flange (FF) Raised Face Flange (RF) Ring Joint Flange (RTJ) Lap Joint Flange Male and Female Flange (M&F) Large and Small Tongue and Groove Flange (T&G) |
|
| Surface Treatment | Anti-Rust Oil, Painting ( Black, Yellow), Galvanizing, Power Coating | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500, 2500 lbs |
| DIN | PN6, PN10, PN16, PN25, PN40 | |
| GOST | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| EN1092-1 | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K | |
| BS4504 | PN6, PN10, PN16, PN25, PN40 | |
| Size | ANSI | 1/2″ – 80″ |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN1092-1 | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS4504 | DN15-DN2000 | |
| Certification | EN 10204 3.1 Mill Test Report | |
| Usage | Used for the connection of all kinds of piping systems to convey the water, steam, air, gas and oil | |
| Package | Plywood Pallet, Wooden Pallet, Wooden Case etc. | |
| Delivery | Within 7 Days, For Production QTY’s within 15-25 Days | |
Call us to get latest MS Flanges prices in Mumbai, Maharashtra
MS Flanges Price List
For final MS Flanges Price List Please Call on +91 9892523354 or drop an Email to [email protected]
| 3 inch class 150 MS Flanges slip on flange | FOB Price: US $4-5 / Piece |
| dn80 pn25 MS Flanges rf slip on flange | FOB Price: US $0.18-15 / Piece |
| slip on MS Flanges | FOB Price: US $5-9 / Kilogram |
| astm a694 high yield Ms soff Flange | FOB Price: US $1200-1500 / Ton |
| astm a350 low temperature Ms sortj Flange | FOB Price: US $2.5-400 / Piece |
| astm a105 class 1500lbs sorf Flange | FOB Price: US $900-2000 / Ton |
| asme b16.5 high yield cs slip on Flanges | FOB Price: US $2000-4000 / Ton |
| Ms sortj flange manufacturer | FOB Price: US $4.37-5.22 / Kilogram |
| Ms a105 raised face slip on flange | FOB Price: US $0.14-1800 / Piece |
| high quality Ms rfso flanges | FOB Price: US $0.12-1400 / Piece |
| Ms slip on welding flanges | FOB Price: US $0.13-1100 / Piece |
| low temperature steel a350 lf3 sorf flange | FOB Price: US $0.4-900 / Piece |
| ansi b16.5 ms class 900 slip-on flanges | FOB Price: US $0.10-2000 / Piece |
| astm a350 lf6 ltcs slip on pipe flanges | FOB Price: US $0.9-800 / Piece |
MS Flanges Dimensions Chart
| Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Diameter | Outside Daimeter (O.D.) | BC (Circle Of Bolt) | Raised Face (R) |
RF (Raised Face) |
H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) |
Bolts Holes Numbers |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.88 | 3.75 | 2.62 | 1.38 | .063 | 1.50 | 0.88 | 0.50 | 0.82 | 0.62 | 4 |
| 3/4 | 1.09 | 4.62 | 3.25 | 1.69 | .063 | 1.88 | 1.00 | .056 | 0.94 | 0.75 | 4 |
| 1 | 1.36 | 4.88 | 3.50 | 2.00 | .063 | 2.12 | 1.06 | 0.63 | 1.00 | 0.75 | 4 |
| 1-1/4 | 1.70 | 5.25 | 3.88 | 2.50 | .063 | 2.50 | 1.06 | 0.69 | 1.00 | 0.75 | 4 |
| 1-1/2 | 1.95 | 6.12 | 4.50 | 2.88 | .063 | 2.75 | 1.19 | 0.75 | 1.13 | 0.88 | 4 |
| 2 | 2.44 | 6.50 | 5.00 | 3.62 | .063 | 3.31 | 1.31 | 0.82 | 1.25 | 0.75 | 8 |
| 2-1/2 | 2.94 | 7.50 | 5.88 | 4.12 | .063 | 3.94 | 1.50 | 0.94 | 1.44 | 0.88 | 8 |
| 3 | 3.57 | 8.25 | 6.62 | 5.00 | .063 | 4.62 | 1.69 | 1.06 | 1.63 | 0.88 | 8 |
| 3-1/2 | 4.07 | 9.00 | 7.25 | 5.50 | .063 | 5.25 | 1.75 | 1.13 | 1.69 | 0.88 | 8 |
| 4 | 4.57 | 10.00 | 7.88 | 6.19 | .063 | 5.75 | 1.88 | 1.19 | 1.82 | 0.88 | 8 |
| 5 | 5.66 | 11.00 | 9.25 | 7.31 | .063 | 7.00 | 2.00 | 1.32 | 1.94 | 0.88 | 8 |
| 6 | 6.72 | 12.50 | 10.62 | 8.50 | .063 | 8.12 | 2.06 | 1.38 | 2.00 | 0.88 | 12 |
| 8 | 8.72 | 15.00 | 13.00 | 10.62 | .063 | 10.25 | 2.44 | 1.56 | 2.38 | 1.00 | 12 |
| 10 | 10.88 | 17.50 | 15.25 | 12.75 | .063 | 12.62 | 2.62 | 1.82 | 2.56 | 1.12 | 16 |
| 12 | 12.88 | 20.50 | 17.75 | 15.00 | .063 | 14.75 | 2.88 | 1.94 | 2.82 | 1.25 | 16 |
| 14 | 14.14 | 23.00 | 20.25 | 16.25 | .063 | 16.75 | 3.00 | 2.06 | 2.94 | 1.25 | 20 |
| 16 | 16.16 | 25.50 | 22.50 | 18.50 | .063 | 19.00 | 3.25 | 2.19 | 3.19 | 1.38 | 20 |
| 18 | 18.18 | 28.00 | 24.75 | 21.00 | .063 | 21.00 | 3.50 | 2.32 | 3.44 | 1.38 | 24 |
| 20 | 20.20 | 30.50 | 27.00 | 23.00 | .063 | 23.12 | 3.75 | 2.44 | 3.69 | 1.38 | 24 |
| 22 | 22.22 | 33.00 | 29.25 | 25.25 | .063 | 25.25 | 4.00 | 2.57 | 3.94 | 1.63 | 24 |
| 24 | 24.25 | 36.00 | 32.00 | 27.25 | .063 | 27.62 | 4.19 | 2.69 | 4.13 | 1.62 | 24 |
MS Flanges Pressure Rating
| Slip On Flange | Pressure And Temperature Ratings | ||||||
| Temperature °F | Class 150 As Per ASME B16.5 | Class 300 As Per ASME B16.5 | Class 400 As Per ASME B16.5 | Class 600 As Per ASME B16.5 | Class 900 As Per ASME B16.5 | Class 1500 As Per ASME B16.5 | Class 2500 As Per ASME B16.5 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
