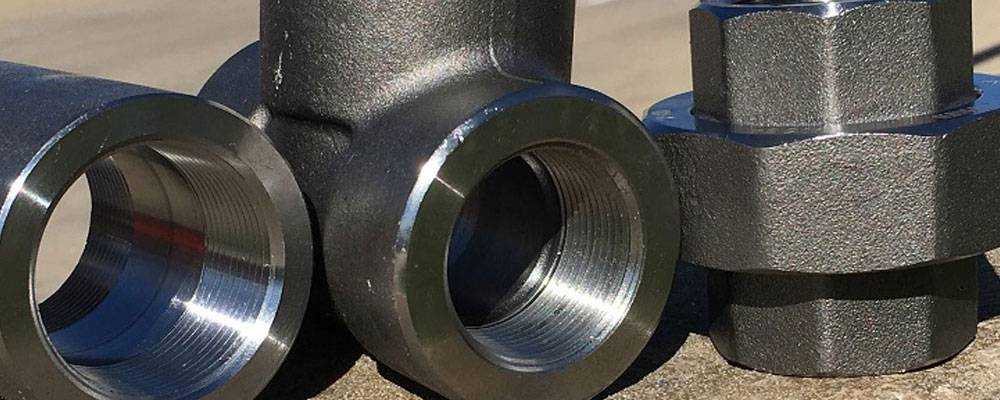

Carbon Steel Forged Fittings

Best Carbon Steel Forged Fittings Manufacturers in India.

Rajdhan Metal has established itself as an esteemed manufacturer of carbon steel forged fittings in India, offering our clients vast types of fittings at cost-effective factory rates. We adhere to stringent manufacturing processes using top-grade raw materials without compromising productivity in our production process.

Table of Content

Carbon Steel Forged Fittings Specifications
Carbon Steel Forged Pipe Fittings Manufacturing Standards
Types of Carbon Steel Forged Pipe Fittings
Carbon Steel Forged Fittings Price List
Carbon Steel Forged Fittings Dimensions
Carbon Steel Forged Fitting Pressure Rating
Specialized in Following ASME B16.11 Forged Carbon Steel Fittings
Carbon Steel Forged Fittings Weight Chart

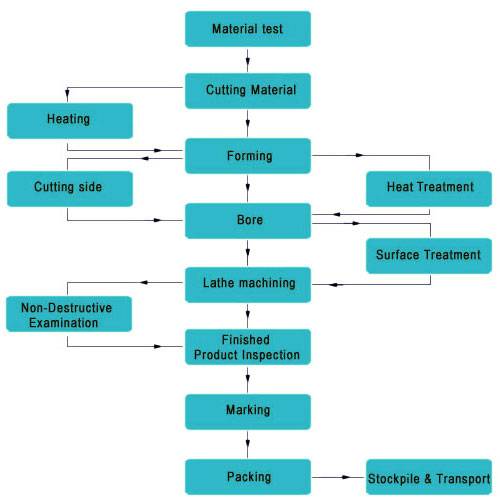

Carbon Steel Forged Fittings Manufacturing Process
Forged Carbon Steel Pipe Fittings Industrial Applications

Manufacturing of Forged Fitting in Factory

Supplier of ASME B16.11 Carbon Steel Forged Elbows, Tees, Couplings, and Unions at Factory Prices in Mumbai.

Forged Fittings are pipe components designed to ensure secure, leak-free connections. Made of carbon steel material, our forged pipe fittings offer superior performance and reliability. They come in various shapes and sizes such as bends, crosses, elbows and tees, with sizes typically ranging from 1/8" to 4". Their flexibility makes them suitable for numerous applications.

Our Forged Carbon Steel Fittings are suitable for high-pressure and high-temperature environments such as those found in oil and gas industry facilities or power generation plants, providing different pressure ratings (from the lower Class 2000 to the higher Class 9000) to meet any individual customer needs.

We ensure every forged fitting is meticulously labeled with vital details such as specifications, grade, and heat number, aiding easy identification and compliance with industry standards. Our commitment to quality extends to robust packaging materials and safeguarding fittings during transport. Ordering is streamlined; connect with our sales team via phone, email, or website for product options, specs, and pricing assistance.

Carbon Steel Forged Fittings Specifications

Specifications	ASTM A105 / ASME SA105 / A350 LF 2
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Thread	NPT, BSPT, BSPP
Types	Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating	Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Carbon Steel Forged Pipe Fittings Manufacturing Standards

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross	2000LB	Threaded	1/4''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
BS3799	Hex Nipple	3000LB/6000LB	Threaded	1/8''~2''x1/2''
	Bosses	3000LB	Threaded	1/8''~2''
	Bosses	6000LB	Threaded	1/8''~4''
	Pipe Nipple	40/STD/80/XS /160/XXS	See Below Note1	1/8''~6''
Material Grade	Carbon Steel	ASTM / ASME A/SA 105（N）
	Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
	High Yield Carbon Steel	ASTM / ASME A/SA694 F52 F56 F60, F65, F70
Thread	NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

Types of Carbon Steel Forged Pipe Fittings

Carbon Steel Socket weld Fittings

Carbon Steel 90 Deg Socket weld Elbow

Carbon Steel 45 Deg Socket weld Elbow

Carbon Steel Socket weld Equal Tee

Carbon Steel Socket weld Unequal Tee

Carbon Steel Socket weld Equal Cross

Carbon Steel Socket weld Unequal Cross

Carbon Steel Socket weld Cap

Carbon Steel Socket weld Union

Carbon Steel Socket weld Full Coupling

Carbon Steel Socket weld Half Coupling

Carbon Steel Socket weld Reducing Coupling

CS Socket weld Reducing Coupling

Carbon Steel Threaded Fittings

Carbon Steel 90 Deg Threaded Elbow

Carbon Steel 45 Deg Threaded Elbow

Carbon Steel Threaded Equal Tee

Carbon Steel Threaded Unequal Tee

Carbon Steel Threaded Equal Cross

Carbon Steel Threaded Unequal Cross

Carbon Steel Threaded Cap

Carbon Steel Threaded Union

Carbon Steel Threaded Full Coupling

Carbon Steel Threaded Half Coupling

Carbon Steel Threaded Reducing Coupling

Carbon Steel Hex Nipple

Carbon Steel Hex Head Plug

Carbon Steel Hex Head Bushing

Carbon Steel Swage Nipple

Check Price List and Dimensions of Black Forged Steel Fittings.

Carbon Steel Forged Fittings Price List

Products	Types	Forged Fitting Size	Price
CARBON STEEL FORGED FITTINGS SEMIFINISHED(PIPE FITTINGS OF IRON &STEEL)SIZE:24-900-WN-RF-1.125 WT-SC-B16.5-DRILLED-F65	45° Elbow	1/4 in x 1/4 in	$6.65
		3/8 in x 3/8 in	$8.00
		1/2 in x 1/2 in	$16.13
		3/4 in x 3/4 in	$18.97
CARBON STEEL FORGED FITTINGS 1.5 150# WNRF SOLID, A105 (PIPE FITTINGS)	90° Elbow	1/2 in x 1/2 in	$12.52
		3/4 in x 3/4 in	$22.59
		1 in x 1 in	$23.07
		1 1/4 in x 1 1/4 in	$59.67
CARBON STEEL FITTINGS 1/2 PLUG HEX HEAD B16.11-A105 GALV MTE - FORGED	Cap	1/4 in	$5.54
		3/8 in	$6.46
		1/2 in	$6.75
		3/4 in	$8.55
CARBON STEEL FITTINGS 1CAP B16.11 3000# A 105 FT - FORGED	Cross	1/2 in x 1/2 in x 1/2 in x 1/2 in	$30.13
		3/4 in x 3/4 in x 3/4 in x 3/4 in	$43.80
		1 in x 1 in x 1 in x 1 in	$73.47
		1 1/4 in x 1 1/4 in x 1 1/4 in x 1 1/4 in	$46.22
CARBON STEEL PIPE FITTING - FORGED FLANGES MATERIAL Q235B (FLANGES CL150 SORF WITH HUB SIZE 18 TOTAL PCS 50)	Tee	3/8 in x 3/8 in x 3/8 in	$13.87
		1/2 in x 1/2 in x 1/2 in	$18.47
		3/4 in x 3/4 in x 3/4 in	$30.30
		1 in x 1 in x 1 in	$30.39
PIPE FITTING CARBON STEEL GR SA350 LF2 WELDOLET CS CL1 FORGED 2X16SCH 80/XS MSS SP-97/ASME B31.1/B31.3(4PCS)	Coupling	1/8 in x 1/8 in	$5.43
		1/4 in x 1/4 in	$6.44
		3/8 in x 3/8 in	$8.39
		1/2 in x 1/2 in	$12.77
		3/4 in x 3/4 in	$17.67
CARBON STEEL GR SA350 LF2 CONCENTRIC SWAGE NIPPLE CS CL1 FORGED 2X/12SCH160XSCH160 BLE(1PCS)	Half Coupling	1/8 in x 1/8 in	$3.66
		1/4 in x 1/4 in	$4.25
		3/8 in x 3/8 in	$4.24
		1/2 in x 1/2 in	$6.14
		3/4 in x 3/4 in	$8.86
LF2 ELBOW CS CL1 FORGED 1/2CLS 6000 90 DEG SW ASME B16.11(6PCS)	Union	1/8 in x 1/8 in	$12.60
		1/4 in x 1/4 in	$14.96
		3/8 in x 3/8 in	$18.60
		1/2 in x 1/2 in	$20.14
CARBON STEEL GR SA350 LF2 ELBOW CS CL1 FORGED 1/2CLS 3000 90 DEG SW ASME B16.11(6PCS)	Hex Bushing	1/4 in x 1/8 in	$8.99
		3/8 in x 1/8 in	$10.81
		3/8 in x 1/4 in	$11.78

Carbon Steel Forged Fittings Dimensions

SIZE	CENTER TO END 90 ELBOW, TEE AND CROSS A		CENTER TO END 45 ELBOW C		OUTSIDE DIAMETER OF BAND H		MINIMUM WALL THICKNESS G		THREAD LENGTH MINIMUM		END TO END W	END TO END W₂	END TO END CAPS P		OUTSIDE DIAMETER COUPLING, CAP D		END THICKNESS MIN CAP G
	CLASS		CLASS		CLASS		CLASS		THREAD LENGTH MINIMUM		3000 & 6000	3000 & 6000	CLASS		CLASS		CLASS
	3000	6000	3000	6000	3000	6000	3000	6000	B	L2	3000 & 6000	3000 & 6000	3000	6000	3000	6000	3000	6000
6	21	25	17	19	22	25	3.18	6.35	6.4	6.7	32	16	19	22	16	22	4.8	6.4
8	25	28	19	22	25	33	3.30	6.60	8.1	10.2	35	17	25	27	19	25	4.8	6.4
10	28	33	22	25	33	38	3.51	6.98	9.1	10.4	48	24	32	27	22	32	4.8	6.4
15	33	38	25	28	38	46	4.09	8.15	10.9	13.6	48	24	32	33	28	38	6.4	7.9
20	38	44	28	33	46	56	4.32	8.53	12.7	13.9	51	25	37	38	35	44	6.4	7.9
25	44	51	33	35	56	62	4.98	9.93	14.7	17.3	60	30	41	43	44	57	9.7	11.2
32	51	60	35	43	62	75	5.28	10.59	17.0	18.0	67	33	44	46	57	64	9.7	11.2
40	60	64	43	44	75	84	5.56	11.07	17.8	18.4	79	39	44	48	64	76	11.2	12.7
50	64	83	44	52	84	102	7.14	12.09	19.0	19.2	86	43	48	51	76	92	12.7	15.7
65	83	95	52	64	102	121	7.65	15.29	23.6	28.9	92	46	60	64	92	108	15.7	19.0
80	95	106	64	79	121	146	8.84	16.64	25.9	30.5	108	54	65	68	108	127	19.0	22.4
100	114	114	79	79	152	152	11.18	18.67	27.7	33.0	121	60	68	75	140	159	22.4	28.4

Carbon Steel Forged Fitting Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature		Class
		150	300
			1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
(oF)	(oC)		1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
-20 to 150	-29 to 66	300	2000	1500	1000
200	93	265	1785	1350	910
250	121	225	1575	1200	825
300	149	185	1360	1050	735
350	177	150	1150	900	650
400	204	-	935	750	560
450	232	-	725	600	475
500	260	-	510	450	385
550	288	-	300	300	300

Looking for Carbon Steel Forged Fittings in India? Get free quote from Rajdhan Metal is one of the renowned manufacturers and stockist of B16.11 forged fitting at best price.

Specialized in Following ASME B16.11 Forged Carbon Steel Fittings

Carbon Steel Forged Elbow for Piping Connection
Carbon Steel Socket Weld Union
Carbon Steel 3000 LB Socket Weld Cap
Buy Carbon Steel Square Head Plug
Carbon Steel Screwed Fittings Suppliers
Carbon Steel Industrial Forged Fittings
Carbon Steel Class 6000 Forged Fittings
ASME B16.11 Carbon Steel Threaded Plug
Carbon Steel NPT Threaded Street Elbow
Galvanized Carbon Steel Forged Fitting
Low Temperature Carbon Steel Forged Fitting
Stockists of Carbon Steel BSPT Elbow
ASTM A350 LF2 Low Temperature Steel Forged Fittings

Class 3000, SW, 2 Inch Carbon Forged Steel Fittings
Carbon Steel Threaded Square Plug
Carbon Steel Socket weld Boss Wholesaler
Carbon Steel Threaded Adapter Stockholder
CS Class 6000 Socket Weld Fittings
Carbon Steel 45 Degree NPT Elbow
Carbon Steel Forged Equal Cross
Manufacturers of CS NPT Threaded Pipe Fittings
Carbon Steel BSP Threaded Forged Fittings
Exporter of Carbon Steel Forged Cap
BS3799 CS Swage Nipples Dealer
CS High Pressure Forged Fittings
Carbon Steel Reducer Inserts Distributor

Carbon Steel Forged Fittings Weight Chart

Carbon Steel Socketweld Forged Fittings

Size Product		2”	1/4”	3/8”	3/4”	1”	1/2”	1/8”	3”	1-1/4”	4”	1-1/2”	2-1/2”
Cap	3000	0.96	0.04	0.07	0.16	0.25	0.10	0.03	2.74	0.45	4.24	0.59	1.43
Cap	6000	1.41	0.08	0.10	0.23	0.36	0.16	0.05		0.64		0.94
90 Elbow	3000	1.68	0.08	0.12	0.33	0.53	0.22	0.09	5.38	0.84	10.95	1.08	3.20
90 Elbow	6000	3.28	0.15	0.29	0.73	1.17	0.40	0.10		1.48		2.79
Tee	3000	2.04	0.09	0.15	0.42	0.65	0.29	0.13	5.90	1.04	13.92	1.35	3.98
Tee	6000	3.95	0.20	0.43	0.94	1.49	0.56	0.14		1.93		3.37
45 Elbow	3000	1.35	0.07	0.11	0.28	0.42	0.20	0.08	5.10	0.69	9.41	0.80	2.53
45 Elbow	6000	2.09	0.14	0.26	0.57	0.92	0.36	0.09		1.11		2.01
Full Coupling	3000	0.86	0.05	0.07	0.17	0.29	0.13	0.04	1.78	0.45	2.85	0.59	1.40
Full Coupling	6000	1.62	0.07	0.114	0.27	0.44	0.204	0.05		0.60		1.11
Cross	3000	2.25	0.13	0.20	0.47	0.73	0.35	0.16	6.69	1.12	14.58	1.58	4.37
Cross	6000	4.42	0.26	0.45	1.07	1.75	0.67	0.17		2.26		3.96
Half Coupling	3000	1.09	0.05	0.07	0.21	0.30	0.13	0.04	2.10	0.34	3.71	0.66	1.63
Half Coupling	6000	1.92	0.09	0.12	0.31	0.51	0.21	0.06		0.75		1.25
Red Coupling	3000	0.97	0.05	0.07	0.19	0.27	0.13	0.04	1.88	0.49	3.31	0.59	1.42
Red Coupling	6000	2.12			0.33	0.65	0.24			0.75		1.20
Union	3000	2.16	0.28	0.25	0.49	0.81	0.35	0.28	5.15	1.10	11.59	1.61	3.50

Carbon Steel Threaded Forged Fittings

Size Product		1/4”	1/2”	2”	3/4”	1/8”	4”	1”	1-1/2”	3/8”	1-1/4”	2-1/2”	3”
45 Elbow	2000	0.08	0.20	1.41	0.27	0.09	8.96	0.41	0.82	0.10	0.68	3.46	5.44
	3000	0.12	0.34	2.23	0.56	0.09	8.96	0.94	2.05	0.24	1.03	3.71	5.97
	6000	0.27	0.63	4.37	1.07	0.11	11.36	1.27	2.54	0.39	2.24	7.01	14.16
90 Elbow	2000	0.08	0.25	1.70	0.35	0.10	10.21	0.53	1.06	0.13	0.82	3.14	4.81
	3000	0.14	0.43	2.92	0.69	0.10	14.85	1.14	2.63	0.29	1.42	5.99	8.88
	6000	0.33	0.80	7.31	1.31	0.17	15.76	1.61	3.79	0.45	2.93	9.88	17.73
Tee	2000	0.12	0.31	2.16	0.43	0.13	14.74	0.69	1.39	0.17	1.07	4.11	6.12
	3000	0.20	0.56	3.53	0.92	0.13	19.13	1.49	3.27	0.38	1.76	6.99	10.19
	6000	0.45	0.98	7.88	1.65	0.20	18.53	2.17	4.71	0.63	3.74	13.11	21.70
Cross	2000	0.14	0.39	2.65	0.54	0.17	16.35	0.83	1.75	0.21	1.26	5.26	7.58
Cross	3000	0.26	0.72	4.27	1.06	0.17	21.93	1.79	3.93	0.44	2.13	8.51	12.45
Half Coupling	3000	0.02	0.06	0.70	0.10	0.02	3.11	0.23	0.54	0.03	0.34	1.13	1.68
Half Coupling	6000	0.06	0.16	1.70	0.24	0.07	5.02	0.45	0.96	0.09	0.55	2.10	3.05
Round Head Plug		0.45	0.12	1.47	0.20	0.02	6.24	0.34	0.79	0.07	0.55	2.34	3.26
Red Coupling	3000	0.05	0.13	1.37	0.19	0.05	5.44	0.39	0.99	0.06	0.68	2.07	3.08
Red Coupling	6000	0.06	0.31	3.40	0.41	0.08	10.04	0.85	1.81	0.18	1.05	4.20	6.10
Full Coupling	3000	0.04	0.13	1.40	0.19	0.05	6.28	0.45	1.07	0.06	0.81	2.29	3.38
Full Coupling	6000	0.13	0.34	2.87	0.50	0.08	10.04	0.87	1.94	0.20	1.09	4.20	6.10
Cap	3000	0.04	0.11	1.09	0.18	0.02	4.84	0.37	0.72	0.05	0.62	2.22	3.50
Cap	6000	0.06	0.26	2.23	0.40	0.06		0.71	0.77	0.09	0.59
Street Elbow	3000	0.11	0.31	2.91	0.53	0.13		1.02	2.01	0.22	1.13
Union	3000	0.28	0.34	2.43	0.48	0.28	12.00	0.77	1.63	0.24	1.03	3.63	5.27
Square Head Plug		0.01	0.05	0.63	0.09	0.01	3.83	0.16	0.38	0.03	0.27	0.96	1.53
Hex Nipple	3000	0.04	0.09	1.03	0.15	0.03	4.00	0.47	0.62	0.05	0.45	1.51	2.22
Hex Head Plug		0.03	0.07	1.03	0.14	0.01	5.20	0.22	0.59	0.05	0.44	1.80	2.60
Hex Head Bushing		0.01	0.03	0.45	0.05		3.20	0.09	0.34	0.01	0.25	0.60	1.16

Carbon Steel Forged Fittings Manufacturing Process

Carbon Steel Forged Fittings are made by making a piece of carbon steel by heating it to an extreme temperature and then giving a shape using the dies or hammers. The forging process, by virtue of proper grain structure alignment, ensures that the steel cords are stronger and more endearing than the ones emanating from other manufacturing methods. Two main forging processes are used: open-die forging and closed-die forging. The steel is placed between two flat dies in closed-die forging while the metal is shaped by a hammer or press. The mentioned approach is suited for large or basically form-shaped fixtures. Closest-die forging includes putting the steel in a die during shaping.

Forged Carbon Steel Pipe Fittings Industrial Applications

Oil & Gas Industry
Power Plants
Refinery Industry
Petrochemical
Marine Industry
Fire Fighting
HVAC & MEP

Looking for Carbon Steel Forged Fittings manufacturer in India? We Sell High quality Forged Pipe Fitting at Low Prices! We also accept custom forging based on client drawings and designs.
