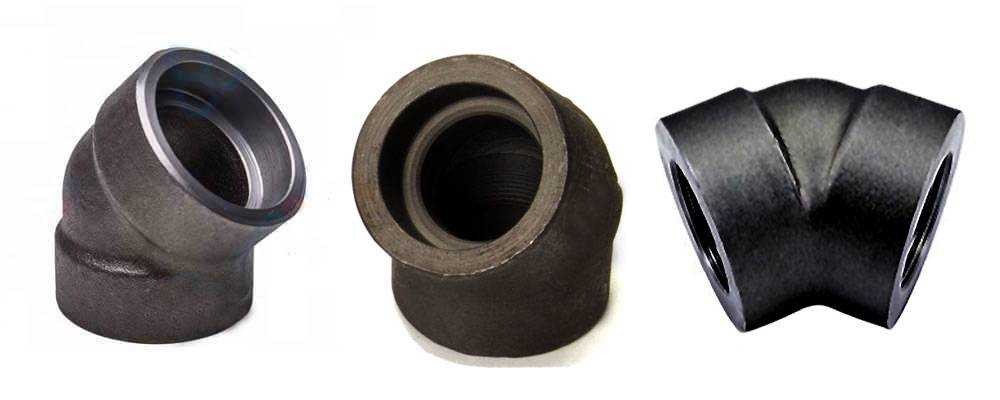

Carbon Steel Socket weld 45 Deg Elbow
A Carbon Steel 45 Deg Socket Weld Elbow is a pipe connector that joins two pipes at an angle of 45 degrees. It is made of carbon steel, which is suitable for use in areas that don't need resistant materials for high corrosion or extreme temperatures. The installation involves welding the pipe into a socket attached to the elbow. This makes the flow of liquids or gases turn gently, which is useful in tight spaces and high-pressure situations.
We are Rajdhan Metal, we take pleasure in being a leading manufacturer and supplier of Carbon Steel Socket Weld 45 Degree Elbows in India offering customers excellent quality and competitive prices. The SW Elbows we offer are designed to meet the various requirements of different industries that require high-pressure pipe systems. Constructed with a high degree of precision, every weld socket forged elbow is a testimony to the highest quality of craftsmanship and compliance with performance.
CS 45 ° Socket welding Elbow, ANSI B16.11 Carbon Steel SW 45 Degree Elbow Manufacturers in India, Forged Socket Weld 45 Deg Elbows Supplier in Mumbai.
- Carbon Steel 45 Deg Socket weld Elbow Specifications
- Carbon Steel 45 Degree Socket weld Elbow Dimensions
- Specialized in Following ASME B16.11 Carbon Steel Socket Weld 45 Deg Elbow
- Carbon Steel Socket weld 45 Deg Elbow Price List
- Forged Carbon Steel SW 45 Deg Elbow Weight Chart
- Carbon Steel Socket weld 45 Degree Elbow Industrial Application
Best deals on socket weld 45 degree pipe elbow manufacturers in India, Check B16.11 45 degree elbow dimensions.
Our high-grade forged carbon steel elbow are manufactured to strict ASTM A105 as well ASME B16.11 standards, which ensures an exact fitting and seamless performance for your piping needs. Our carbon steel forged standard components offer high-temperature and ambient endurance, with a higher durability which makes them a top option for professionals and engineers working in the field.
Carbon Steel Forged Socket Weld 45 Degree Elbow is made using top-quality materials and advanced technology according to industry standards, with sturdy tensile structures with incredible dimensional precision. It is capable of enduring the weight of heavy loads without suffering damages or breaking. Its corrosion and pitting cracking resistance is astounding because it focuses on the resistance to cracking corrosion.
Our socket welding elbow offers a robust solution for controlling the flow of fluid without compromising the integrity of the system. Available in a variety of sizes and rated for classes 3000, 9000 and 6000 applications, accommodating an extensive variety of pressure needs.
- Quality Assurance: Every elbow is tested thoroughly to ensure maximum endurance and leak-proof performance.
- Size Variety: Available in a variety of sizes, ranging from 1/4 inch up to 2 inches and beyond, our elbows can be fitted effortlessly in any size pipe.
- Customization Solutions that are custom-made to meet the specific requirements of your system.
- Delivery Excellence: Located in India we ensure prompt delivery throughout the region with a superior customer service experience.
CS Forged Socket Weld 45 degree pipe elbow is employed by many industries, such as chemical and pharmaceutical, pulp and paper power generation, and water treatment. Their tough design gives sufficient impact resistance even when temperatures are lower. Additionally the forged fittings are high pressure capacities, which makes them ideal for use in oil and gas.
We conduct rigorous checks and tests on every ASME B16.11 Forged Socket weld 45 degree Elbows batches. We ensure that you get quality products that are backed by quality certifications. Our knowledge and experience enables us to provide fittings that are custom that meet your needs. From different pressure ratings to a variety of sizes, we are able to customize our products to meet your specifications. Work with us to achieve quality and reliability in any of your pipe projects.
Carbon Steel 45 Deg Socket weld Elbow Specifications
| Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″ |
| Types | Socketweld Fittings |
| Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Rajdhan Metal offers high-quality and cost-effective carbon steel socket weld 45 degree elbows in India. View 45 degree elbow price list.
Carbon Steel 45 Degree Socket weld Elbow Dimensions

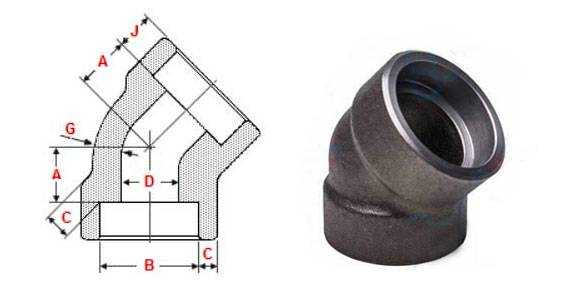

Socket Weld 45 Degree Elbow Drawing
NPS 1/2 to 4 – Class 3000 Socket Weld 45 Degree Elbow Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
| B | J | D | C | G | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 |
NPS 1/2 to 2 – Class 6000 Socket Weld 45 Degree Elbow Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
| B | J | D | C | G | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 |
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 |
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 |
Supplies of Black Forged Steel SW 45-Degree Elbow in Mumbai, India.
Specialized in Following ASME B16.11 Carbon Steel Socket Weld 45 Deg Elbow
- CS Socket weld 45 Deg Elbow in Mumbai
- 1" Galvanised Carbon Steel Socket weld 45° Elbow
- Low Temperature Steel A350 LF2 SW 45 Deg Elbow
- Buy Black Steel 2" Socket weld 45 Degree Elbow
- Carbon Steel 45 Degree Socket Weld Elbow
- Black Iron 45 Deg Socket-weld Elbow Stockist
- Carbon Steel 45 Deg Socket weld Forged Elbow
- ASME B16.11 CS Socket welding 45 deg. Elbow
- 45 Deg Carbon Steel SW Elbow for Piping Connection
- Carbon Steel SW 45 Degree Elbow Stockholder
- Carbon Steel Class 6000 45 Deg. Pipe SW Elbow
- 3000lb, Carbon Steel SW Elbow 45 Deg
- Stockists of Carbon Steel 45° Socket Weld Elbows
- Low Carbon Steel 45 Deg Socket weld Elbow
- Carbon Steel 45 Deg SW Elbows Suppliers
- Carbon Steel Industrial Forged Socketweld 45 Deg Elbow
- Carbon Steel Socket weld 45° Elbows Trader
- Carbon Steel 45 Degree Elbow Socket weld
- Manufacturers of CS Socket weld 45 Deg Elbows
- High Carbon Steel S/W 45 Deg Elbows 6000#
- Carbon Steel Socket weld Forged 45 Deg Elbows
- Carbon Steel Forged Socket Weld Elbow 45 Degree
- CS High Pressure Forged Socket weld 45 Deg Elbow
- Carbon Steel Socket welding 45° elbow Wholesaler
- Cast Iron 45 Deg Socket weld Elbow Dealer
- Exporter of Carbon Steel Socket Weld Elbow 45 Deg
- Socket Weld Forged Carbon Steel 45 Degree Elbow
- ASME B16.11 Black Steel 45 Degree SW Elbow Fitting
- Carbon Steel Socket weld 45 Degree Elbow in India
- Carbon Steel Black 45 Deg Socket Welding Elbow
- Black Iron 45 Degree SW Elbow Distributor
- Carbon Steel Socket Weld 45 Elbow Stock
- Carbon Steel ASTM A105 45 Deg. Socket weld Elbow
- Carbon Steel SW Elbow 45 Degree Supplier
Carbon Steel Socket weld 45 Deg Elbow Price List
| Socket weld 45 degree Elbow Price | 45 Deg Socket weld Elbow Price in India | 45° Socket weld Elbow Price in USD | 45° Socket weld Elbow Price in UAE Dirham |
| ASTM A105 CS FORGED SW 45 DEGREE ELBOW, 1/2 NPS, CL3000# | INR 1,312 / Unit | USD $ 15.77 /Unit | UAE Dirham 64.23 |
| 45° ELBOW: 1 NPS, 2″Socket Weld Elbow, ASTM A105, CARBON STEEL, ASME B16.11 | INR 834 / Unit | USD $ 10.45 / Unit | UAE Dirham 42.18 |
| SOCKET WELDING 45 DEGREE ELBOW CARBON STEEL MATERIAL | INR 7,192 / Unit | USD $ 100.10 / Unit | UAE Dirham 400.56 |
| 45 DEGREE ELBOW WITH SOCKET WELD END, 45DEGREE, DIA. 16MM X 1/2 | INR 2,245 / Unit | USD $ 32.09 / Unit | UAE Dirham 128.82 |
Forged Carbon Steel SW 45 Deg Elbow Weight Chart
| Type | Forged Socket Welding Fitting
ANSI B16.11 - BS 3799 Classes 3000 - 6000 - 9000 LBS Weight (kg) |
|||||||||||
| 45° Elbows | 3000 | 0.078 | 0.100 | 0.192 | 0.250 | 0.380 | 0.580 | 0.830 | 1.15 | 2.05 | 3.40 | 9.00 |
| 6000 | 0.120 | 0.240 | 0.300 | 0.530 | 0.860 | 1.07 | 1.90 | 2.35 | 3.00 | 6.00 | 10.30 | |
| 9000 | 0.600 | 1.18 | 1.55 | 2.40 | 3.45 | 3.55 | ||||||
Rajdhan Metal offers high-quality carbon steel 45 degree socket weld elbows, as a leading supplier, exporter, stockist, and distributor - contact us today for more information.
FAQs
-
What is a 45 degree pipe elbow used for?A 45 Deg Socket Weld Elbow is a forged pipe fitting that changes the direction of piping by 45 degrees. It's designed for use in various high-pressure piping systems, and the socket weld aspect helps to ensure a strong, durable bond.
-
Is special equipment needed to install the socket weld elbow?Installing a socket weld elbow typically requires a welding setup suitable for carbon steel. You'll need a welding machine, electrodes, and possibly a die grinder for any post-weld cleanup. It is highly recommended that only qualified personnel perform welding tasks.
-
Can the elbow be used in an outdoor environment?Yes, the Carbon Steel 45 Deg Socket Weld Elbow can be used outdoors. However, it may require coating or painting to protect against corrosion, depending on environmental conditions.
-
Are custom sizes available for this product?We typically offer a range of standard sizes. For custom sizing needs, please reach out to our sales department to discuss your project's specifications and availability.
-
Does the SW elbow conform to specific industry standards?Our 45 Deg Socket Weld Elbow conforms to ASME B16.11, which covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged fittings.
-
Can I return the socket weld elbow if it doesn't fit my application?We accept returns under certain conditions. If the elbow is unused and in its original condition, returns may be possible. Please contact customer service for direct assistance with returns.
