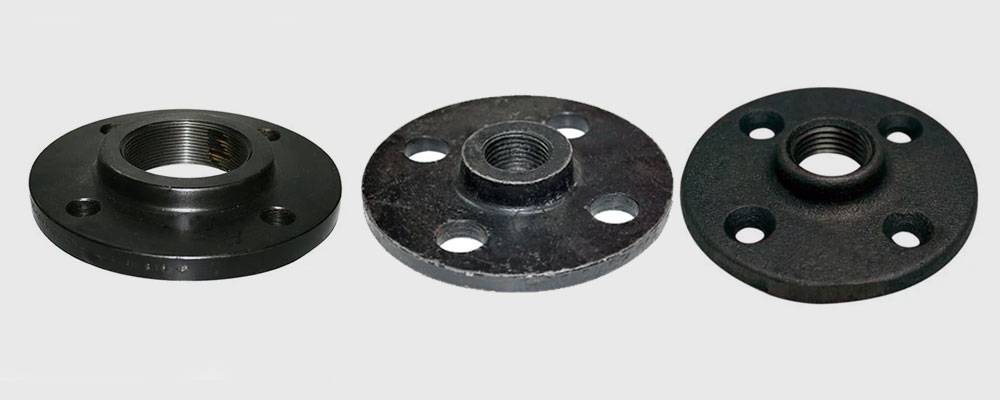

Rajdhan Metal is a notable supplier and manufacturer of high-quality Carbon Steel Threaded / Screwed Flanges in India. We offer our customers with an option of customise these flanges to better suit their requirements. Carbon Steel Threaded / Screwed Flanges can be customised according to their size, dimensions and surface finish.
There is no hub or drilling centre in a Carbon Steel Threaded / Screwed Flanges. The ends of hydraulic and piping systems are sealed with the help of these flanges. They are bolted, which makes it simple to repair and clean them. These flanges are inexpensive but extremely dependable and effective over an extended length of time. The zinc coating on the Threaded Flange provides them with improved defence in various stress-induced conditions. They are created in accordance with all national and international norms. The carbon content is higher in the threaded flange made of carbon steel. This makes it possible for these flanges to have exceptional strength and toughness. In order to create the Flange Threaded Type and all of our other products, our reliable professionals use the most up-to-date technology and premium raw materials. Carbon Steel Threaded / Screwed Flanges display excellent corrosion resistance in a variety of environments.
The ability to connect to a pipe without welding is the most notable aspect of these Flanges. Carbon Steel Threaded / Screwed Flanges can be fitted to pipes with external threads since the bore has threads. Carbon Steel Threaded / Screwed Flanges are cheap and ideal for small pipes and used in low-pressure applications. In highly combustible industries where welding is risky, they are quite helpful. With our excellent products and exceptional services, we are qualified to meet the demanding requirements of a variety of sectors.
Specifications | ASTM A105, A694, A350 / ASME SA105, SA694, SA350 |
Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Size | 1/2" (15 NB) to 48" (1200NB) |
Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
BS | BS4504, BS4504, BS1560, BS10 |
Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Call us to get the latest price list for Carbon Steel Threaded Flanges in Mumbai, Maharashtra. We have special offers available for CS Screwed Flange with the best price.

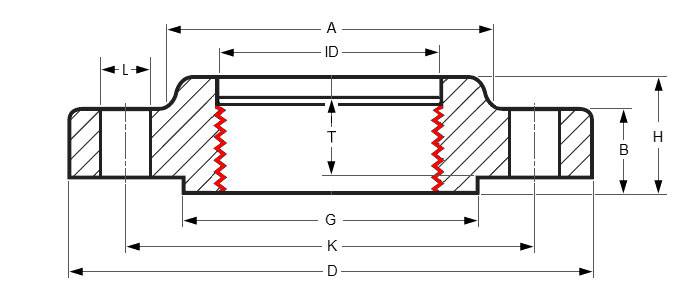

Rated Diameter |
d1 | Flange | Neck | Raised face | Screws | Weight of a flange (7,85 Kg/dm3) |
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thread | D | b | k | h1 | d3 | d4 | f | Number | Thread | d2 | Kg | ||
15 | 21,3 | R 1/2 | 80 | 12 | 55 | 20 | 30 | 40 | 2 | 4 | M 10 | 11 | 0,373 |
20 | 26,9 | R 3/4 | 90 | 14 | 65 | 24 | 40 | 50 | 2 | 4 | M 10 | 11 | 0,59 |
25 | 33,7 | R 1 | 100 | 14 | 75 | 24 | 50 | 60 | 2 | 4 | M 10 | 11 | 0,743 |
32 | 42,4 | R 1 1/4 | 120 | 14 | 90 | 26 | 60 | 70 | 2 | 4 | M 12 | 14 | 1,05 |
40 | 48,3 | R 1 1/2 | 130 | 14 | 100 | 26 | 70 | 80 | 3 | 4 | M 12 | 14 | 1,2 |
50 | 60,3 | R 2 | 140 | 14 | 110 | 28 | 80 | 90 | 3 | 4 | M 12 | 14 | 1,37 |
65 | 76,1 | R 2 1/2 | 160 | 14 | 130 | 32 | 100 | 110 | 3 | 4 | M 12 | 14 | 1,92 |
80 | 88,9 | R 3 | 190 | 16 | 150 | 34 | 110 | 128 | 3 | 4 | M 16 | 18 | 2,82 |
100 | 114,3 | R 4 | 210 | 16 | 170 | 38 | 130 | 148 | 3 | 4 | M 16 | 18 | 3,19 |
125 | 139,7 | R 5 | 240 | 18 | 200 | 40 | 160 | 178 | 3 | 8 | M 16 | 18 | 4,47 |
150 | 165,1 | R 6 | 265 | 18 | 225 | 44 | 185 | 202 | 3 | 8 | M 16 | 18 | 5,3 |
Rated Diameter |
d1 | Flange Diemnsion | Neck | Raised face | Screws Dimension |
Weight of a flange (7,85 Kg/dm3) |
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thread | D | b | k | h1 | d3 | d4 | f | Number | Thread | d2 | Kg | ||
15 | 21,3 | R 1/2 | 95 | 14 | 65 | 20 | 35 | 45 | 2 | 4 | M 12 | 14 | 0,613 |
20 | 26,9 | R 3/4 | 105 | 16 | 75 | 24 | 45 | 58 | 2 | 4 | M 12 | 14 | 0,91 |
25 | 33,7 | R 1 | 115 | 16 | 85 | 24 | 52 | 68 | 2 | 4 | M 12 | 14 | 1,1 |
32 | 42,4 | R 1 1/4 | 140 | 16 | 100 | 26 | 60 | 78 | 2 | 4 | M 16 | 18 | 1,6 |
40 | 48,3 | R 1 1/2 | 150 | 16 | 110 | 26 | 70 | 88 | 3 | 4 | M 16 | 18 | 1,78 |
50 | 60,3 | R 2 | 165 | 18 | 125 | 28 | 85 | 102 | 3 | 4 | M 16 | 18 | 2,43 |
65 | 76,1 | R 2 1/2 | 185 | 18 | 145 | 32 | 105 | 122 | 3 | 4 | M 16 | 18 | 3,18 |
80 | 88,9 | R 3 | 200 | 20 | 160 | 34 | 118 | 138 | 3 | 8 | M 16 | 18 | 4,12 |
100 | 114,3 | R 4 | 220 | 20 | 180 | 38 | 140 | 158 | 3 | 8 | M 16 | 18 | 4,47 |
125 | 139,7 | R 5 | 250 | 22 | 210 | 40 | 168 | 188 | 3 | 8 | M 16 | 18 | 6,13 |
150 | 165,1 | R 6 | 285 | 22 | 240 | 44 | 195 | 212 | 3 | 8 | M 20 | 22 | 7,92 |

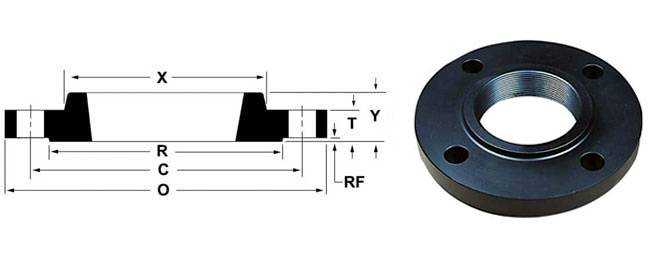

Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Hub | Length Through Hub | Thread Length Threaded Min. | Bore | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approximate Weight kgs |
---|---|---|---|---|---|---|---|---|---|---|---|
NPS | O | R | tf | X | Y | T | B | W | I | n | |
1/2 | 90 | 34.9 | 9.6 | 30 | 14 | 16 | 22.2 | 60.3 | 15.9 | 4 | 0.41 |
3/4 | 100 | 42.9 | 11.2 | 38 | 14 | 16 | 27.7 | 69.9 | 15.9 | 4 | 0.59 |
1 | 110 | 50.8 | 12.7 | 49 | 16 | 17 | 34.5 | 79.4 | 15.9 | 4 | 0.82 |
1 1/4 | 115 | 63.5 | 14.3 | 59 | 19 | 21 | 43.2 | 88.9 | 15.9 | 4 | 0.99 |
1 1/2 | 125 | 73.0 | 15.9 | 65 | 21 | 22 | 49.5 | 98.4 | 15.9 | 4 | 1.28 |
2 | 150 | 92.1 | 17.5 | 78 | 24 | 25 | 61.9 | 120.7 | 19.1 | 4 | 2.01 |
2 1/2 | 180 | 104.8 | 20.7 | 90 | 27 | 29 | 74.6 | 139.7 | 19.1 | 4 | 3.41 |
3 | 190 | 127.0 | 22.3 | 108 | 29 | 30 | 90.7 | 152.4 | 19.1 | 4 | 3.88 |
3 1/2 | 215 | 139.7 | 22.3 | 122 | 30 | 32 | 103.4 | 177.8 | 19.1 | 8 | 4.80 |
4 | 230 | 157.2 | 22.3 | 135 | 32 | 33 | 116.1 | 190.5 | 19.1 | 8 | 5.45 |
5 | 255 | 185.7 | 22.3 | 164 | 35 | 36 | 143.8 | 215.9 | 22.2 | 8 | 6.22 |
6 | 280 | 215.9 | 23.9 | 192 | 38 | 40 | 170.7 | 241.3 | 22.2 | 8 | 7.57 |
8 | 345 | 269.9 | 27.0 | 246 | 43 | 44 | 221.5 | 298.5 | 22.2 | 8 | 12.42 |
10 | 405 | 323.8 | 28.6 | 305 | 48 | 49 | 276.2 | 362.0 | 25.4 | 12 | 16.47 |
12 | 485 | 381.0 | 30.2 | 365 | 54 | 56 | 327.0 | 431.8 | 25.4 | 12 | 26.80 |
14 | 535 | 412.8 | 33.4 | 400 | 56 | 57 | 359.2 | 476.3 | 28.6 | 12 | 35.21 |
16 | 595 | 469.9 | 35.0 | 457 | 62 | 64 | 410.5 | 539.8 | 28.6 | 16 | 44.61 |
18 | 635 | 533.4 | 38.1 | 505 | 67 | 68 | 461.8 | 577.9 | 31.8 | 16 | 49.19 |
20 | 700 | 584.2 | 41.3 | 559 | 71 | 73 | 513.1 | 635.0 | 31.8 | 20 | 62.62 |
24 | 815 | 692.2 | 46.1 | 663 | 81 | 83 | 616.0 | 749.3 | 34.9 | 20 | 88.23 |
Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Hub | Length Through Hub | Thread Length Threaded Min. | Bore | Counter-bore Threaded Flange, Min. | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approxi-mate Weight kgs |
---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS | O | R | tf | X | Y | T | B | Q | W | I | n | |
1/2 | 95 | 34.9 | 12.7 | 38 | 21 | 16 | 22.2 | 23.6 | 66.7 | 15.9 | 4 | 0.65 |
3/4 | 115 | 42.9 | 14.3 | 48 | 24 | 16 | 27.7 | 29.0 | 82.6 | 19.1 | 4 | 1.08 |
1 | 125 | 50.8 | 15.9 | 54 | 25 | 18 | 34.5 | 35.8 | 88.9 | 19.1 | 4 | 1.39 |
1 1/4 | 135 | 63.5 | 17.5 | 64 | 25 | 21 | 43.2 | 44.4 | 98.4 | 19.1 | 4 | 1.74 |
1 1/2 | 155 | 73.0 | 19.1 | 70 | 29 | 23 | 49.5 | 50.3 | 114.3 | 22.2 | 4 | 2.49 |
2 | 165 | 92.1 | 20.7 | 84 | 32 | 29 | 61.9 | 63.5 | 127.0 | 19.1 | 8 | 2.90 |
2 1/2 | 190 | 104.8 | 23.9 | 100 | 37 | 32 | 74.6 | 76.2 | 149.2 | 22.2 | 8 | 4.35 |
3 | 210 | 127.0 | 27.0 | 117 | 41 | 32 | 90.7 | 92.2 | 168.3 | 22.2 | 8 | 5.89 |
3 1/2 | 230 | 139.7 | 28.6 | 133 | 43 | 37 | 103.4 | 104.9 | 184.2 | 22.2 | 8 | 7.48 |
4 | 255 | 157.2 | 30.2 | 146 | 46 | 37 | 116.1 | 117.6 | 200.0 | 22.2 | 8 | 9.77 |
5 | 280 | 185.7 | 33.4 | 178 | 49 | 43 | 143.8 | 144.4 | 235.0 | 22.2 | 8 | 12.31 |
6 | 320 | 215.9 | 35.0 | 206 | 51 | 47 | 170.7 | 171.4 | 269.9 | 22.2 | 12 | 16.07 |
8 | 380 | 269.9 | 39.7 | 260 | 60 | 51 | 221.5 | 222.2 | 330.2 | 25.4 | 12 | 24.07 |
10 | 445 | 323.8 | 46.1 | 321 | 65 | 56 | 276.2 | 276.2 | 387.4 | 28.6 | 16 | 34.38 |
12 | 520 | 381.0 | 49.3 | 375 | 71 | 61 | 327.0 | 328.6 | 450.8 | 31.8 | 16 | 49.80 |
14 | 585 | 412.8 | 52.4 | 425 | 75 | 64 | 359.2 | 360.4 | 514.4 | 31.8 | 20 | 70.12 |
16 | 650 | 469.9 | 55.6 | 483 | 81 | 69 | 410.5 | 411.2 | 571.5 | 34.9 | 20 | 89.56 |
18 | 710 | 533.4 | 58.8 | 533 | 87 | 70 | 461.8 | 462.0 | 628.6 | 34.9 | 24 | 108.10 |
20 | 775 | 584.2 | 62.0 | 587 | 94 | 74 | 513.1 | 512.8 | 685.8 | 34.9 | 24 | 134.87 |
24 | 915 | 692.2 | 68.3 | 702 | 105 | 83 | 616.0 | 614.4 | 812.8 | 41.3 | 24 | 202.58 |
Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Hub | Length Through Hub | Thread Length Threaded Min. | Bore | Counter-bore Threaded Flange, Min. | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approxi-mate Weight kgs |
---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS | O | R | tf | X | Y | T | B | Q | W | I | n | |
1/2 | 95 | 34.9 | 14.3 | 38 | 22 | 16 | 22.2 | 23.6 | 66.7 | 15.9 | 4 | 0.74 |
3/4 | 115 | 42.9 | 15.9 | 48 | 25 | 16 | 27.7 | 29.0 | 82.6 | 19.1 | 4 | 1.21 |
1 | 125 | 50.8 | 17.5 | 54 | 27 | 18 | 34.5 | 35.8 | 88.9 | 19.1 | 4 | 1.56 |
1 1/4 | 135 | 63.5 | 20.7 | 64 | 29 | 21 | 43.2 | 44.4 | 98.4 | 19.1 | 4 | 2.11 |
1 1/2 | 155 | 73.0 | 22.3 | 70 | 32 | 23 | 49.5 | 50.6 | 114.3 | 22.2 | 4 | 2.97 |
2 | 165 | 92.1 | 25.4 | 84 | 37 | 29 | 61.9 | 63.5 | 127.0 | 19.1 | 8 | 3.64 |
2 1/2 | 190 | 104.8 | 28.6 | 100 | 41 | 32 | 74.6 | 76.2 | 149.2 | 22.2 | 8 | 5.26 |
3 | 210 | 127.0 | 31.8 | 117 | 46 | 35 | 90.7 | 92.2 | 168.3 | 22.2 | 8 | 7.08 |
3 1/2 | 230 | 139.7 | 35.0 | 133 | 49 | 40 | 103.4 | 104.9 | 184.2 | 25.4 | 8 | 8.99 |
4 | 275 | 157.2 | 38.1 | 152 | 54 | 42 | 116.1 | 117.6 | 215.9 | 25.4 | 8 | 14.83 |
5 | 330 | 185.7 | 44.5 | 189 | 60 | 48 | 143.8 | 144.4 | 266.7 | 28.6 | 8 | 24.46 |
6 | 355 | 215.9 | 47.7 | 222 | 67 | 51 | 170.7 | 171.4 | 292.1 | 28.6 | 12 | 28.78 |
8 | 420 | 269.9 | 55.6 | 273 | 76 | 58 | 221.5 | 222.2 | 349.2 | 31.8 | 12 | 43.77 |
10 | 510 | 323.8 | 63.5 | 343 | 86 | 66 | 276.2 | 276.2 | 431.8 | 34.9 | 16 | 71.35 |
12 | 560 | 381.0 | 66.7 | 400 | 92 | 70 | 327.0 | 328.6 | 489.0 | 34.9 | 20 | 84.95 |
14 | 605 | 412.8 | 69.9 | 432 | 94 | 74 | 359.2 | 360.4 | 527.0 | 38.1 | 20 | 100.05 |
16 | 685 | 469.9 | 76.2 | 495 | 106 | 78 | 410.5 | 411.2 | 603.2 | 41.3 | 20 | 141.69 |
18 | 745 | 533.4 | 82.6 | 546 | 117 | 80 | 461.8 | 462.0 | 654.0 | 44.5 | 20 | 175.13 |
20 | 815 | 584.2 | 88.9 | 610 | 127 | 83 | 513.1 | 512.8 | 723.9 | 44.5 | 24 | 222.87 |
24 | 940 | 692.2 | 101.6 | 718 | 140 | 93 | 616.0 | 614.4 | 838.2 | 50.8 | 24 | 313.75 |
Nominal Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flanges Min. | Diameter of Hub | Length Through Hub | Thread Length Threaded Min. | Bore | Counter-bore Threaded Flange, Min., | Diameter of Bolt Circle | Diameter of Bolt Holes | Number of Bolts | Approxi-mate Weight kgs |
---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS | O | R | tf | X | Y | T | B | Q | W | I | n | |
1/2 | 120 | 34.9 | 22.3 | 38 | 32 | 23 | 22.2 | 23.6 | 82.6 | 22.2 | 4 | 1.73 |
3/4 | 130 | 42.9 | 25.4 | 44 | 35 | 26 | 27.7 | 29.0 | 88.9 | 22.2 | 4 | 2.33 |
1 | 150 | 50.8 | 28.6 | 52 | 41 | 29 | 34.5 | 35.8 | 101.6 | 25.4 | 4 | 3.48 |
1 1/4 | 160 | 63.5 | 28.6 | 64 | 41 | 31 | 43.2 | 44.4 | 111.1 | 25.4 | 4 | 4.00 |
1 1/2 | 180 | 73.0 | 31.8 | 70 | 44 | 32 | 49.5 | 50.3 | 123.8 | 28.6 | 4 | 5.54 |
2 | 215 | 92.1 | 38.1 | 105 | 57 | 39 | 61.9 | 63.5 | 165.1 | 25.4 | 8 | 9.79 |
2 1/2 | 245 | 104.8 | 41.3 | 124 | 64 | 48 | 74.6 | 76.2 | 190.5 | 28.6 | 8 | 13.82 |
3 | 240 | 127.0 | 38.1 | 127 | 54 | 42 | 90.7 | 92.2 | 190.5 | 25.4 | 8 | 11.51 |
4 | 290 | 157.2 | 44.5 | 159 | 70 | 48 | 116.1 | 117.6 | 235.0 | 31.8 | 8 | 19.52 |
5 | 350 | 185.7 | 50.8 | 190 | 79 | 54 | 143.8 | 144.4 | 279.4 | 34.9 | 8 | 32.14 |
6 | 380 | 215.9 | 55.6 | 235 | 86 | 58 | 170.7 | 171.4 | 317.5 | 31.8 | 12 | 41.04 |
8 | 470 | 269.9 | 63.5 | 298 | 102 | 64 | 221.5 | 222.2 | 393.7 | 38.1 | 12 | 70.97 |
10 | 545 | 323.8 | 69.9 | 368 | 108 | 72 | 276.2 | 276.2 | 469.9 | 38.1 | 16 | 100.32 |
12 | 610 | 381.0 | 79.4 | 419 | 117 | 77 | 327.0 | 328.6 | 533.4 | 38.1 | 20 | 133.26 |
14 | 640 | 412.8 | 85.8 | 451 | 130 | 83 | 359.2 | 360.4 | 558.8 | 41.3 | 20 | 152.57 |
16 | 705 | 469.9 | 88.9 | 508 | 133 | 86 | 410.5 | 411.2 | 616.0 | 44.5 | 20 | 185.15 |
18 | 785 | 533.4 | 101.6 | 565 | 152 | 89 | 461.8 | 462.0 | 685.8 | 50.8 | 20 | 256.28 |
20 | 855 | 584.2 | 108.0 | 622 | 159 | 93 | 513.1 | 512.8 | 749.3 | 54.0 | 20 | 315.13 |
24 | 1040 | 692.2 | 139.7 | 749 | 203 | 102 | 616.0 | 614.4 | 901.7 | 66.7 | 20 | 603.79 |
Pipe Size
(NPS) |
Outside Diameter of Flange
A |
Diameter of Raised Face
B |
Thickness of Flange
C |
Diameter of Hub at Base
J |
Length of Hub
L |
Minimum Thread Length
N |
Number of Bolt Holes
|
Approx. Weight
(Lbs.) |
---|---|---|---|---|---|---|---|---|
1/2 | 3 1/2 | 1 3/8 | 7/16 | 1 3/16 | 5/8 | 5/8 | 4 | 2 |
3/4 | 3 7/8 | 1 11/16 | 1/2 | 1 1/2 | 5/8 | 5/8 | 4 | 2 |
1 | 4 1/4 | 2 | 9/16 | 1 15/16 | 11/16 | 11/16 | 4 | 2 |
1 1/4 | 4 5/8 | 2 1/2 | 5/8 | 2 5/16 | 13/16 | 13/16 | 4 | 3 |
1 1/2 | 5 | 2 7/8 | 11/16 | 2 9/16 | 7/8 | 7/8 | 4 | 3 |
2 | 6 | 3 5/8 | 3/4 | 3 7/16 | 1 | 1 | 4 | 5 |
2 1/2 | 7 | 4 1/8 | 7/8 | 3 9/16 | 1 1/8 | 1 1/8 | 4 | 7 |
3 | 7 1/2 | 5 | 15/16 | 4 1/4 | 1 3/16 | 1 3/16 | 4 | 8 |
3 1/2 | 8 1/2 | 5 1/2 | 15/16 | 4 13/16 | 1 1/4 | 1 1/4 | 8 | 11 |
4 | 9 | 6 3/16 | 15/16 | 5 5/16 | 1 5/16 | 1 5/16 | 8 | 13 |
5 | 10 | 7 5/16 | 15/16 | 6 7/16 | 1 7/16 | 1 7/16 | 8 | 15 |
6 | 11 | 8 1/2 | 1 | 7 9/16 | 1 9/16 | 1 9/16 | 8 | 19 |
8 | 13 1/2 | 10 5/8 | 1 1/8 | 9 11/16 | 1 3/4 | 1 3/4 | 8 | 30 |
10 | 16 | 12 3/4 | 1 3/16 | 12 | 1 15/16 | 1 15/16 | 12 | 43 |
12 | 19 | 15 | 1 1/4 | 14 3/8 | 2 3/16 | 2 3/16 | 12 | 64 |
14 | 21 | 16 1/4 | 1 3/8 | 15 3/4 | 2 1/4 | 2 1/4 | 12 | 85 |
16 | 23 1/2 | 18 1/2 | 1 7/16 | 18 | 2 1/2 | 2 1/2 | 16 | 93 |
18 | 25 | 21 | 1 9/16 | 19 7/8 | 2 11/16 | 2 11/16 | 16 | 120 |
20 | 27 1/2 | 23 | 1 11/16 | 22 | 2 7/8 | 2 7/8 | 20 | 155 |
22 | 29 1/2 | 25 1/4 | 1 13/16 | 24 | 3 1/8 | 3 1/8 | 20 | 159 |
24 | 32 | 27 1/4 | 1 7/8 | 26 1/8 | 3 1/4 | 3 1/4 | 20 | 210 |
Drilling | ||||||||
---|---|---|---|---|---|---|---|---|
Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Height1(H) | Nbr | Holes | Dia.(C) |
1/2″ | 90 | 9.6 | 35.05 | 30 | 14 | 4 | 15.87 | 60.3 |
3/4″ | 100 | 11.2 | 42.92 | 38 | 14 | 4 | 15.87 | 69.9 |
1″ | 110 | 12.7 | 50.80 | 49 | 16 | 4 | 15.87 | 79.4 |
1 1/4″ | 115 | 14.3 | 63.50 | 59 | 19 | 4 | 15.87 | 88.9 |
1 1/2″ | 125 | 15.9 | 73.15 | 65 | 21 | 4 | 15.87 | 98.4 |
2″ | 150 | 17.5 | 91.94 | 78 | 24 | 4 | 19.05 | 120.7 |
2 1/2″ | 180 | 20.7 | 104.65 | 90 | 27 | 4 | 19.05 | 139.7 |
3″ | 190 | 22.3 | 127.00 | 108 | 29 | 4 | 19.05 | 152.4 |
3 1/2″ | 215 | 22.3 | 139.70 | 122 | 30 | 8 | 19.05 | 177.8 |
4″ | 230 | 22.3 | 157.22 | 135 | 32 | 8 | 19.05 | 190.5 |
5″ | 255 | 22.3 | 185.67 | 164 | 35 | 8 | 22.22 | 215.9 |
6″ | 280 | 23.9 | 215.90 | 192 | 38 | 8 | 22.22 | 241.3 |
8″ | 345 | 27.0 | 269.75 | 246 | 43 | 8 | 22.22 | 298.5 |
10″ | 405 | 28.6 | 323.85 | 305 | 48 | 12 | 25.40 | 362.0 |
12″ | 485 | 30.2 | 381.00 | 365 | 54 | 12 | 25.40 | 431.8 |
14″ | 535 | 33.4 | 412.75 | 400 | 56 | 12 | 28.57 | 476.3 |
16″ | 595 | 35.0 | 469.90 | 457 | 62 | 16 | 28.57 | 539.8 |
18″ | 635 | 38.1 | 533.40 | 505 | 67 | 16 | 31.75 | 577.9 |
20″ | 700 | 41.3 | 584.20 | 559 | 71 | 20 | 31.75 | 635.0 |
24″ | 815 | 46.1 | 692.15 | 663 | 81 | 20 | 34.92 | 749.3 |
Drilling | |||||||||
---|---|---|---|---|---|---|---|---|---|
Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Dia.(A) | Height1(H) | Nbr | Holes | Dia.(C) |
1/2″ | 95 | 12.7 | 35.05 | 38 | 23.6 | 21 | 4 | 15.87 | 66.7 |
3/4″ | 115 | 14.3 | 42.92 | 48 | 29.0 | 24 | 4 | 19.05 | 82.6 |
1″ | 125 | 15.9 | 50.80 | 54 | 35.8 | 25 | 4 | 19.05 | 88.9 |
1 1/4″ | 135 | 17.5 | 63.50 | 64 | 44.4 | 25 | 4 | 19.05 | 98.4 |
1 1/2″ | 155 | 19.1 | 73.15 | 70 | 50.3 | 29 | 8 | 22.22 | 114.3 |
2″ | 165 | 20.7 | 91.94 | 84 | 63.5 | 32 | 8 | 19.05 | 127.0 |
2 1/2″ | 190 | 23.9 | 104.65 | 100 | 76.2 | 37 | 8 | 22.22 | 149.2 |
3″ | 210 | 27.0 | 127.00 | 117 | 92.2 | 41 | 8 | 22.22 | 168.3 |
3 1/2″ | 230 | 28.6 | 139.70 | 133 | 104.9 | 43 | 8 | 22.22 | 184.2 |
4″ | 255 | 30.2 | 157.22 | 146 | 117.6 | 46 | 8 | 22.22 | 200.0 |
5″ | 280 | 33.4 | 185.67 | 178 | 144.4 | 49 | 8 | 22.22 | 235.0 |
6″ | 320 | 35.0 | 215.90 | 206 | 171.4 | 51 | 12 | 22.22 | 269.9 |
8″ | 380 | 39.7 | 269.75 | 260 | 222.2 | 60 | 12 | 25.40 | 330.2 |
10″ | 445 | 46.1 | 323.85 | 321 | 276.2 | 65 | 16 | 28.57 | 387.4 |
12″ | 520 | 49.3 | 381.00 | 375 | 328.6 | 71 | 16 | 31.75 | 450.8 |
14″ | 585 | 52.4 | 412.75 | 425 | 360.4 | 75 | 20 | 31.75 | 514.4 |
16″ | 650 | 55.6 | 469.90 | 483 | 411.2 | 81 | 20 | 34.92 | 571.5 |
18″ | 710 | 58.8 | 533.40 | 533 | 462.0 | 87 | 24 | 34.92 | 628.6 |
20″ | 775 | 62.0 | 584.20 | 587 | 512.8 | 94 | 24 | 34.92 | 685.8 |
24″ | 915 | 68.3 | 692.15 | 702 | 614.4 | 105 | 24 | 41.27 | 812.8 |
Drilling | |||||||||
---|---|---|---|---|---|---|---|---|---|
Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Dia.(A) | Height1(H) | Nbr | Holes | Dia.(C) |
1/2″ | 95 | 14.3 | 35.05 | 38 | 23.6 | 22 | 4 | 15.87 | 66.7 |
3/4″ | 115 | 15.9 | 42.92 | 48 | 29.0 | 25 | 4 | 19.05 | 82.6 |
1″ | 125 | 17.5 | 50.80 | 54 | 35.8 | 27 | 4 | 19.05 | 88.9 |
1 1/4″ | 135 | 20.7 | 63.50 | 64 | 44.4 | 29 | 4 | 19.05 | 98.4 |
1 1/2″ | 155 | 22.3 | 73.15 | 70 | 50.6 | 32 | 4 | 22.22 | 114.3 |
2″ | 165 | 25.4 | 91.94 | 84 | 63.5 | 37 | 8 | 19.05 | 127.0 |
2 1/2″ | 190 | 28.6 | 104.65 | 100 | 76.2 | 41 | 8 | 22.22 | 149.2 |
3″ | 210 | 31.8 | 127.00 | 117 | 92.2 | 46 | 8 | 22.22 | 168.3 |
3 1/2″ | 230 | 35.0 | 139.70 | 133 | 104.9 | 49 | 8 | 25.40 | 184.2 |
4″ | 275 | 38.1 | 157.22 | 152 | 117.6 | 54 | 8 | 25.40 | 215.9 |
5″ | 330 | 44.5 | 185.67 | 189 | 144.4 | 60 | 8 | 28.57 | 266.7 |
6″ | 355 | 47.7 | 215.90 | 222 | 171.4 | 67 | 12 | 31.75 | 292.1 |
8″ | 420 | 55.6 | 269.75 | 273 | 222.2 | 76 | 12 | 31.75 | 349.2 |
10″ | 510 | 63.5 | 323.85 | 343 | 276.2 | 86 | 16 | 34.92 | 431.8 |
12″ | 560 | 66.7 | 381.00 | 400 | 328.6 | 92 | 20 | 34.92 | 489.0 |
14″ | 605 | 69.9 | 412.75 | 432 | 360.4 | 94 | 20 | 38.10 | 527.0 |
16″ | 685 | 76.2 | 469.90 | 495 | 411.2 | 106 | 20 | 41.27 | 603.2 |
18″ | 745 | 82.6 | 533.40 | 546 | 462.0 | 117 | 20 | 44.45 | 654.0 |
20″ | 815 | 88.9 | 584.20 | 610 | 512.8 | 127 | 24 | 44.45 | 723.9 |
24″ | 940 | 101.6 | 692.15 | 718 | 614.4 | 140 | 24 | 47.62 | 838.2 |
CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
DIA A |
30 | 38 | 38 | 38 | 38 | 43 |
DIA D |
90 | 95 | 95 | 120 | 120 | 135 |
THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | 30.2 |
11.2 | 14.3 | 20.7 | 28.7 | 28.7 | 36.6 | |
DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
H | 14 | 21 | 22 | 32 | 32 | 40 |
15.6 | 22.6 | 28.4 | 38.4 | 38.4 | 46.4 | |
NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
Stud Bolts Diameter x Length | ||||||
DIA (in) |
1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
Len mm |
55 | 65 | 75 | 110 | 110 | 120 |
CLASS | 150 | 300 | 600 | 900 | 1500 | 2500 |
DIA A |
38 | 48 | 48 | 44 | 44 | 51 |
DIA D |
100 | 115 | 115 | 130 | 130 | 140 |
THK B |
11.2 | 14.3 | 15.9 | 25.4 | 25.4 | 31.8 |
12.8 | 15.9 | 22.3 | 31.8 | 31.8 | 38.2 | |
DIA G |
42.9 | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 |
DIA K |
69.9 | 82.6 | 82.6 | 88.9 | 88.9 | 95.2 |
H | 14 | 24 | 25 | 35 | 35 | 43 |
15.6 | 25.6 | 31.4 | 41.4 | 41.4 | 49.4 | |
NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
DIA L |
15.9 | 19.1 | 19.1 | 22.2 | 22.2 | 22.2 |
Stud Bolts Diameter x Length | ||||||
DIA (in) |
1/2 | 5/8 | 5/8 | 3/4 | 3/4 | 3/4 |
Len mm |
65 | 75 | 90 | 115 | 115 | 125 |
CLASS | 150 | 300 | 600 | 900 | 1500 | 2500 |
DIA A |
49.2 | 54 | 54 | 52 | 52 | 57 |
DIA D |
110 | 125 | 125 | 150 | 150 | 160 |
THK B |
12.7 | 15.9 | 17.5 | 28.6 | 28.6 | 35 |
14.3 | 17.5 | 23.9 | 35 | 35 | 41.4 | |
DIA G |
50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 |
DIA K |
79.4 | 88.9 | 88.9 | 101.6 | 101.6 | 108 |
H | 16 | 25 | 27 | 41 | 41 | 48 |
17.6 | 26.6 | 33.4 | 47.4 | 47.4 | 54.4 | |
NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
DIA L |
15.9 | 19.1 | 19.1 | 25.4 | 25.4 | 25.4 |
Stud Bolts Diameter x Length | ||||||
DIA (in) |
1/2 | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 |
Len mm |
65 | 75 | 90 | 125 | 125 | 140 |
CLASS | 150 | 300 | 600 | 900 | 1500 | 2500 |
DIA A |
59 | 64 | 64 | 64 | 64 | 73 |
DIA D |
115 | 135 | 135 | 160 | 160 | 185 |
THK B |
14.3 | 17.5 | 20.7 | 28.6 | 28.6 | 38.1 |
15.9 | 19.1 | 27.1 | 35 | 35 | 44.5 | |
DIA G |
63.5 | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
DIA K |
88.9 | 98.4 | 98.4 | 111.1 | 111.1 | 130.2 |
H | 19 | 25 | 29 | 41 | 41 | 52 |
20.6 | 26.6 | 35.4 | 47.4 | 47.4 | 58.4 | |
NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
DIA L |
15.9 | 19.1 | 19.1 | 25.4 | 25.4 | 28.6 |
Stud Bolts Diameter x Length | ||||||
DIA (in) |
1/2 | 5/8 | 5/8 | 7/8 | 7/8 | 1 |
Len mm |
70 | 85 | 95 | 125 | 125 | 150 |
CLASS | 150 | 300 | 600 | 900 | 1500 | 2500 |
DIA A |
65 | 70 | 70 | 70 | 70 | 79 |
DIA D |
125 | 155 | 155 | 180 | 180 | 205 |
THK B |
15.9 | 19.1 | 22.3 | 31.8 | 31.8 | 44.5 |
17.5 | 20.7 | 28.7 | 38.2 | 38.2 | 50.9 | |
DIA G |
73.2 | 73.2 | 73.2 | 73.2 | 73.2 | 73.2 |
DIA K |
98.4 | 114.3 | 114.3 | 123.8 | 123.8 | 146 |
H | 21 | 29 | 32 | 44 | 44 | 60 |
22.6 | 31.6 | 38.4 | 50.4 | 50.4 | 66.4 | |
NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
DIA L |
15.9 | 22.2 | 22.2 | 28.6 | 28.6 | 31.8 |
Stud Bolts Diameter x Length | ||||||
DIA (in) |
1/2 | 3/4 | 3/4 | 1 | 1 | 1.1/8 |
Len mm |
70 | 90 | 110 | 140 | 140 | 170 |
Maximum Allowable non-shock Pressure (psig) | |||||||
---|---|---|---|---|---|---|---|
Temperature (oF) |
Pressure Class (lb) | ||||||
150 | 300 | 400 | 600 | 900 | 1500 | 2500 | |
Hydrostatic Test Pressure (psig) | |||||||
450 | 1125 | 1500 | 2225 | 3350 | 5575 | 9275 | |
-20 to 100 | 290 | 750 | 1000 | 1500 | 2250 | 3750 | 6250 |
200 | 260 | 750 | 1000 | 1500 | 2250 | 3750 | 6250 |
300 | 230 | 730 | 970 | 1455 | 2185 | 3640 | 6070 |
400 | 200 | 705 | 940 | 1405 | 2110 | 3520 | 5865 |
500 | 170 | 665 | 885 | 1330 | 1995 | 3325 | 5540 |
600 | 140 | 605 | 805 | 1210 | 1815 | 3025 | 5040 |
650 | 125 | 590 | 785 | 1175 | 1765 | 2940 | 4905 |
700 | 110 | 555 | 740 | 1110 | 1665 | 2775 | 4630 |
750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
900 | 50 | 225 | 295 | 445 | 670 | 1115 | 1855 |
950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
high quality carbon steel threaded flanges | FOB Price: US $0.35-1200 / Piece |
astm a350 lf2 low temperature carbon steel screwed flange | FOB Price: US $3.8-700 / Piece |
ansi b16.5 carbon steel class 300 threaded flanges | FOB Price: US $0.20-1300 / Piece |
carbon steel asme b16.47 threaded flange | FOB Price: US $1400-1100 / Ton |
astm a105 class 900lbs screwed flange | FOB Price: US $900-1300 / Ton |
astm a350 lf6 ltcs threaded and screwed flanges | FOB Price: US $0.9-800 / Piece |
asme b16.5 high yield cs threaded flanges | FOB Price: US $1200-8000 / Ton |
asme b16.5 class 300 carbon steel threaded flanges | FOB Price: US $6-9 / Piece |
astm a694 grade f65 threaded flange manufacturer | FOB Price: US $7.20-5.25 / Kilogram |
carbon steel a105 raised face threaded flange | FOB Price: US $0.17-1500 / Piece |
raised face (rf) carbon steel screwed flange | FOB Price: US $5-15 / Kilogram |
different sizes of carbon steel threaded & screwed flanges | FOB Price: US $0.27-1800 / Piece |
low temperature steel a350 lf3 threaded flange | FOB Price: US $0.7-1200 / Piece |
