Carbon Steel Pipe Cross

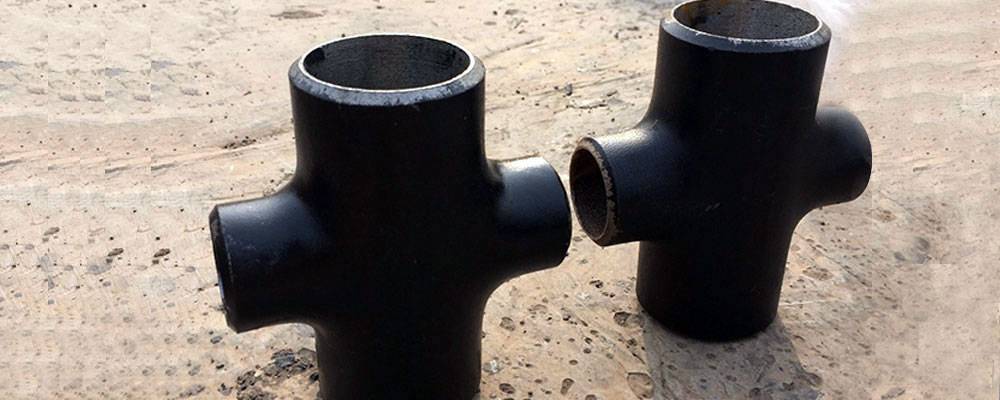

ASTM A234 Carbon Steel Pipe Cross, CS Pipe Cross, Carbon Steel Buttweld Pipe Cross, Carbon Steel Pipe Cross Suppliers, Carbon Steel Seamless Pipe Cross, Carbon Steel Buttweld Cross, ASTM A420 LTCS Pipe Cross, Carbon Steel Pipe Cross Manufacturers in India.

Carbon Steel Pipe Cross is highly durable and corrosion-resistant, making it an ideal choice for many applications. It is suitable for use in water distribution systems as well as oil and gas pipelines. It has a high tensile strength which allows it to handle high-pressure applications with ease. Furthermore, its weldability makes it ideal for welding projects requiring strong joints. Carbon Steel Pipe Cross can be used in conjunction with a variety of other materials including stainless steel, cast iron, and aluminum when constructing machinery or piping systems.

Table of Content

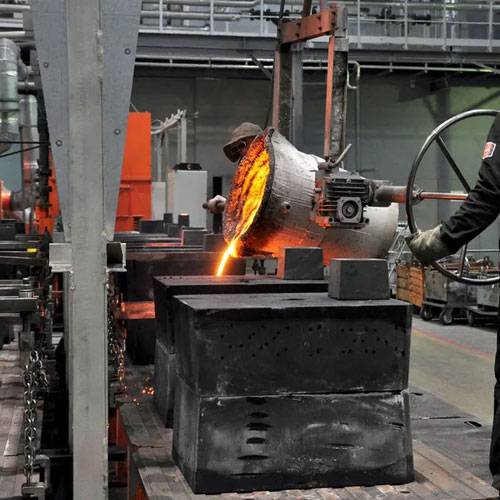

Manufacturing of Pipe Cross in Factory

Carbon Steel Sch40 Butt Weld Equal Cross, CS Unequal Pipe Cross, Low Temperature Carbon Steel Pipe Cross, Carbon Steel Reducing Cross, Carbon Steel Pipe Cross Manufacturer in Mumbai, ASTM A234 WPB Cross, Carbon Steel Pipe Cross Suppliers In Mumbai.

When working with Carbon Steel Pipe Crosses, safety is paramount. By properly sealing the connections between pipe sections, potential hazards such as leakage or contamination are avoided. Additionally, proper maintenance of the pipes will ensure their longevity and ensure that you get the most out of your investment.

At the end of each project, be sure to inspect Carbon Steel Pipe Crosses for any signs of wear or damage. If necessary, repairs can be made easily with welding or other methods. With its excellent strength and corrosion resistance, Carbon Steel Pipe Cross is a great choice for many applications in a variety of industries.

Low Temperature Carbon Steel Pipe Cross, Carbon Steel ANSI / ASME B16.9 Cross, ASTM A860 High Yield Carbon Steel Cross, Carbon Steel SMLS Cross, Manufacturer of Carbon Steel Butt weld Pipe Cross in Mumbai, India, Carbon Steel Butt weld Cross Exporter in India.

CS Pipe Cross
Rajdhan Metal

Carbon Steel Pipe Cross Material Specification

Specifications ASTM A234, A860, A420 / ASME SA234, SA860, SA420
Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Outside Diameter (OD) Seamless Pipe Cross ( 1/2″～24″), ERW / Welded / Fabricated Pipe Cross (1/2″～48″)
ASME Standard ASME/ANSI B16.9, ASME/ANSI B16.28, MSS-SP-43
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
Wall Thickness 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Carbon Steel Buttweld Pipe Cross Types

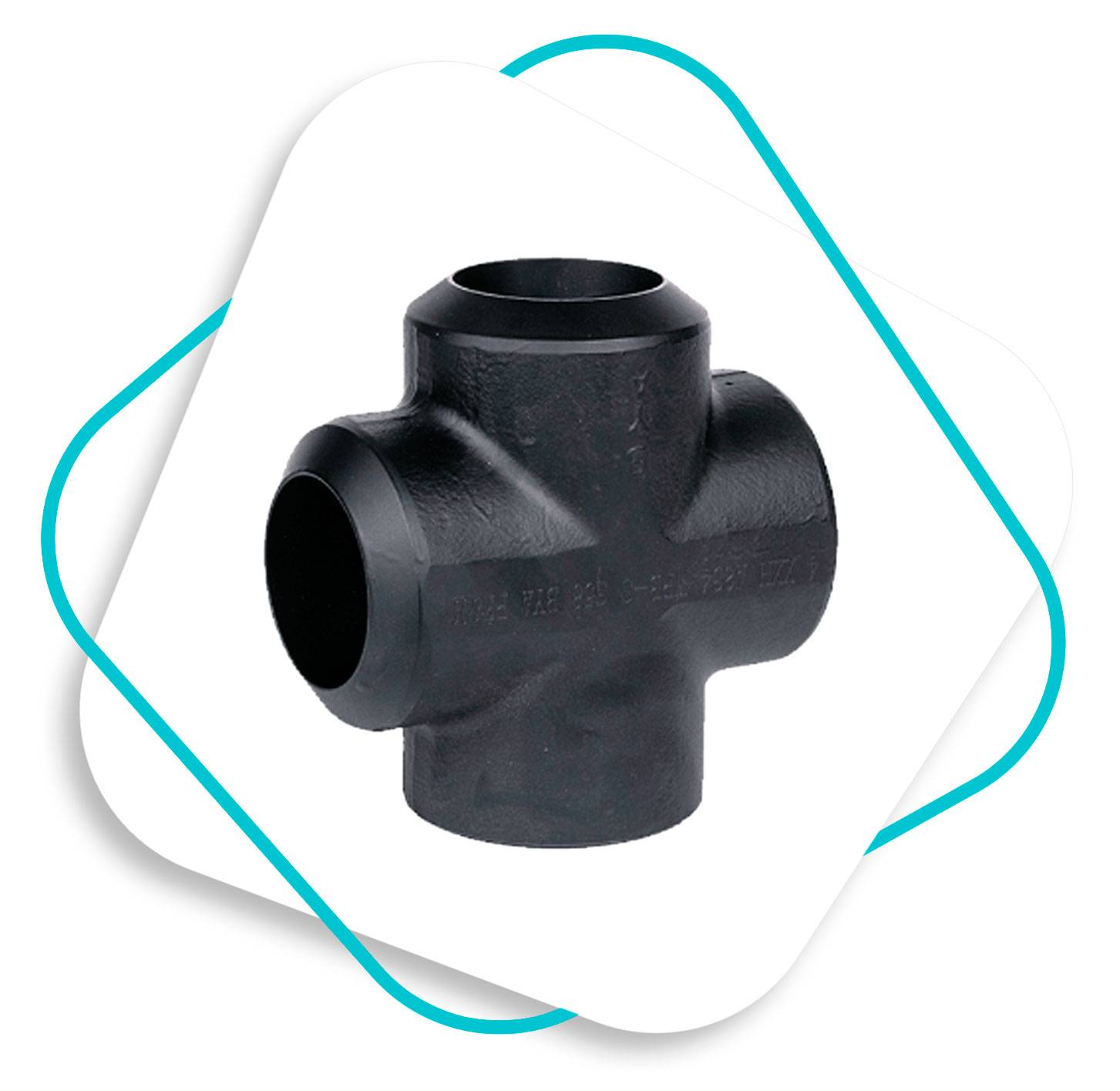

Carbon Steel Equal Cross

Carbon Steel Equal Cross

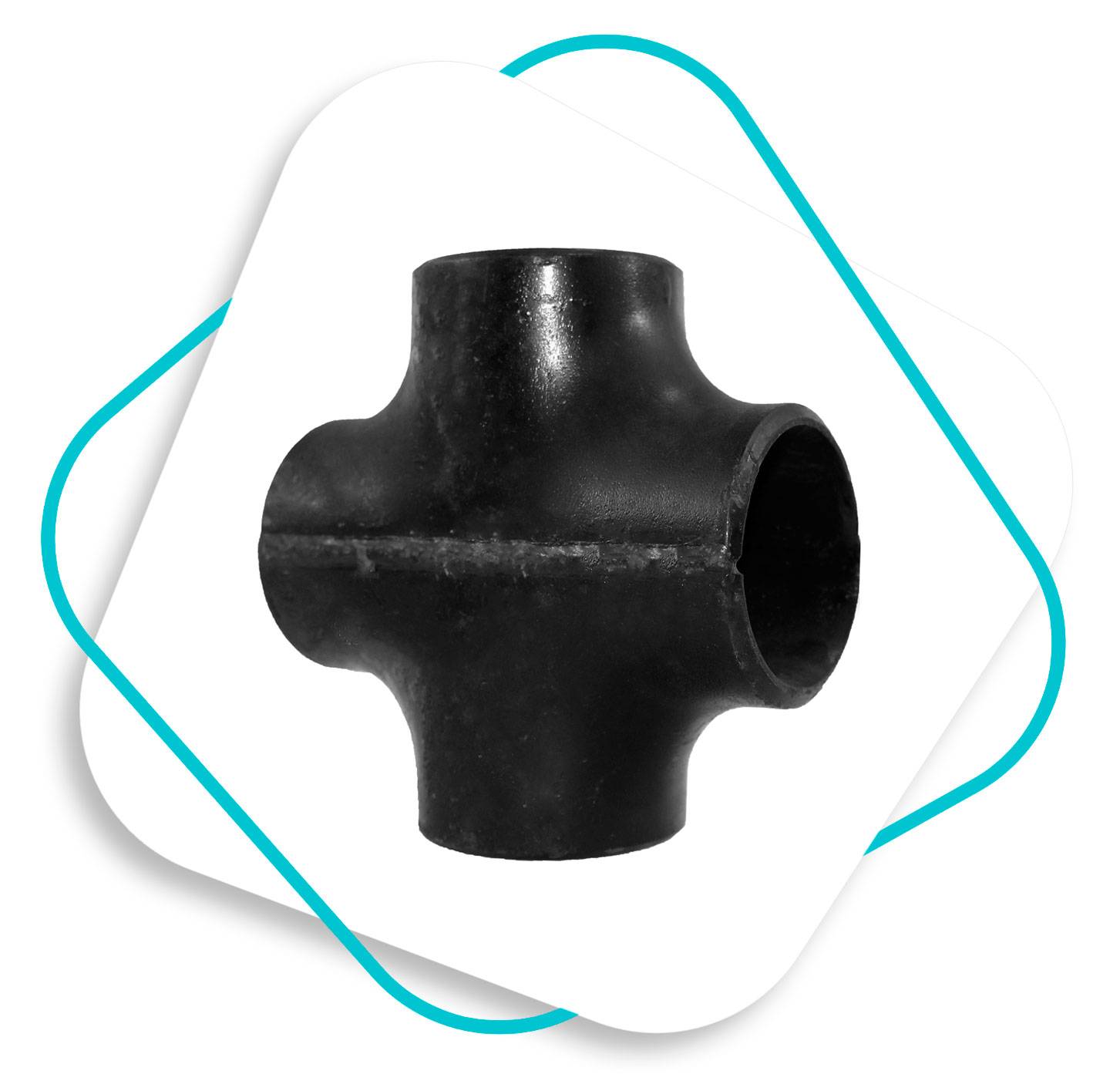

Carbon Steel Unequal Cross

Carbon Steel Unequal Cross

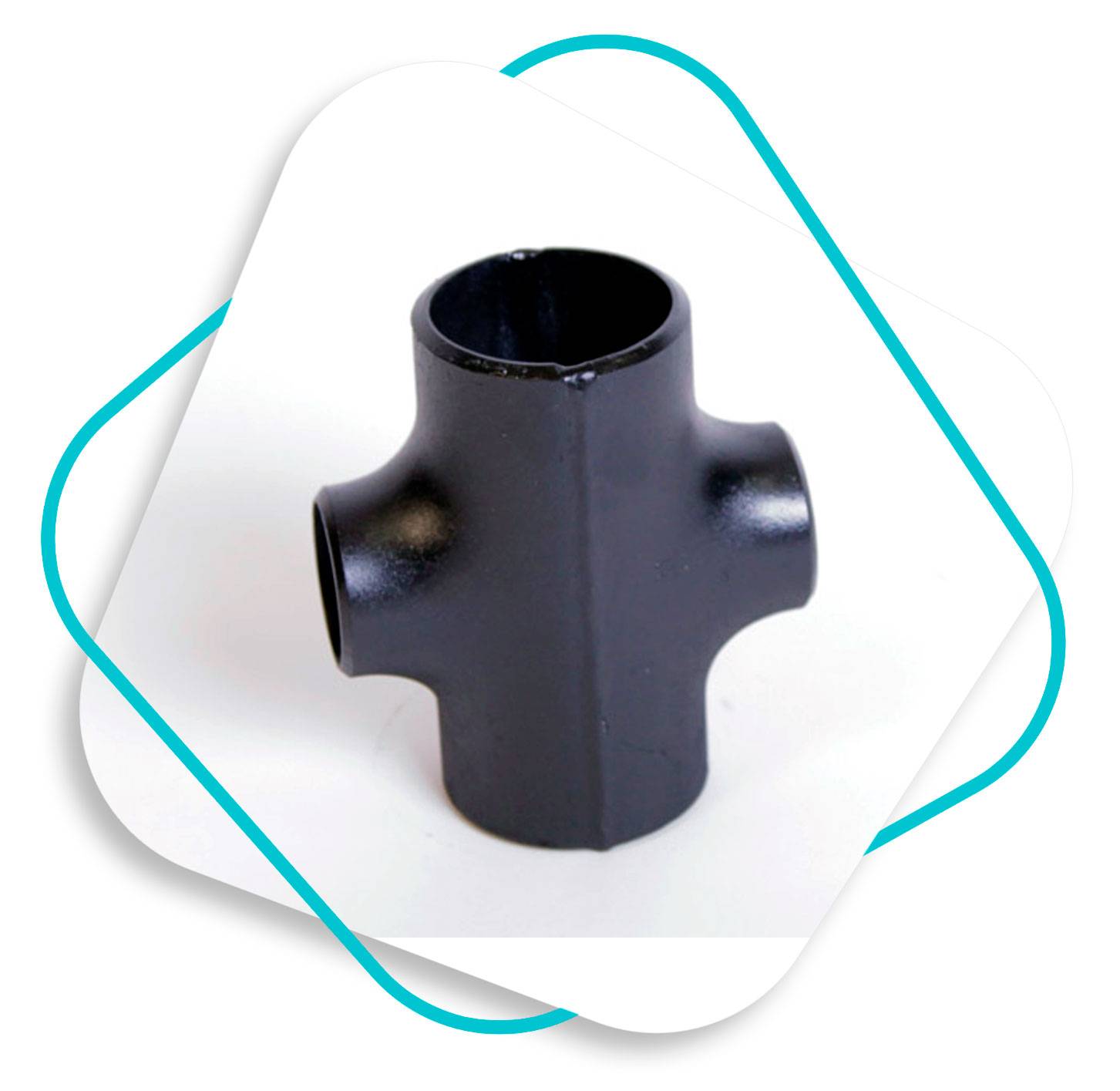

Carbon Steel Reducing Cross

Carbon Steel Reducing Cross

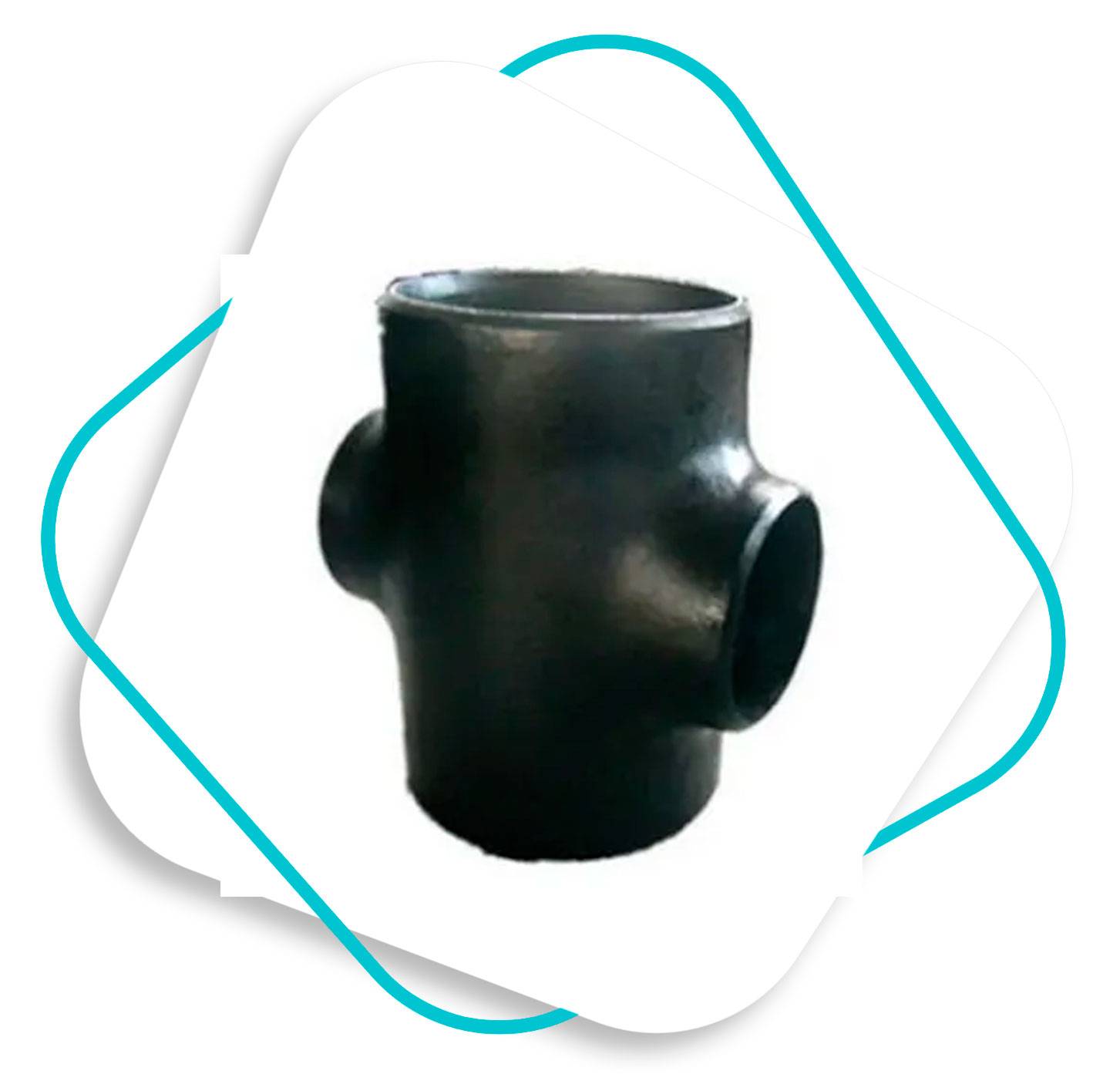

Carbon Steel Straight Cross

Carbon Steel Straight Cross

Call us to get the latest price list for Carbon Steel Buttweld Cross in Mumbai, Maharashtra. We have special offers available for Carbon Steel Cross with the best price.

Carbon Steel ASME B16.9 Buttweld Equal Cross Dimensions

Nominal Pipe Size (NPS)

DN

 Outside Diameter at Bevel

Center- to-End

Run.C

 Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838

Carbon Steel ASME B16.9 Cross Dimensional Tolerance

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

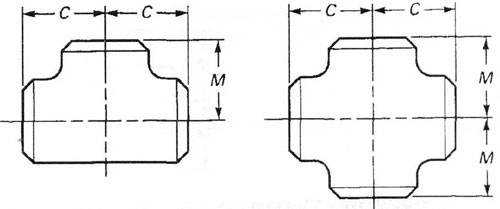

Carbon Steel ASME B16.9 Reducing Cross Dimensions

Carbon Steel Reducing Cross
Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
1*15 1/*1/2 21.3 18 21.3 18 25 25
1*10 1/*3/8 21.3 18 17.3 14 25 25
1*8 1/*1/4 21.3 18 13.7 10 25 25
2*20 3/*3/4 26.9 25 26.9 25 29 29
2*15 3/*1/2 26.9 25 21.3 18 29 29
2*10 3/*3/8 26.9 25 17.3 14 29 29
2*25 *1 33.7 32 33.7 32 38 38
2*20 *3/4 33.7 32 26.9 25 38 38
2*15 *1/2 33.7 32 21.3 18 38 38
3*32 1.1/*1.1/4 42.4 38 42.4 38 48 48
3*25 1.1/*1 42.4 38 33.7 32 48 48
3*20 1.1/*3/4 42.4 38 26.9 25 48 48
3*15 1.1/*1/2 42.4 38 21.3 18 48 48
4*40 1.1/*1.1/2 48.3 45 48.3 45 57 57
4*32 1.1/*1.1/4 48.3 45 42.4 38 57 57
4*25 1.1/*1 48.3 45 33.7 32 57 57
4*20 1.1/*3/4 48.3 45 26.9 25 57 57
4*15 1.1/*1/2 48.3 45 21.3 18 57 57
5*50 *2 60.3 57 60.3 57 64 64
5*40 *1.1/2 60.3 57 48.3 45 64 60
5*32 *1.1/4 60.3 57 42.4 38 64 57
5*25 *1 60.3 57 33.7 32 64 51
5*20 *3/4 60.3 57 26.9 25 64 44
6*65 2/1/*2.1/2 73.0 76 73.0 76 76 76
6*50 2/1/*2 73.0 76 60.3 57 76 70
6*40 2/1/*1.1/2 73.0 76 48.3 45 76 67
6*32 2/1/*1.1/4 73.0 76 42.4 38 76 64
6*25 2/1/*1 73.0 76 33.7 32 76 57
8*80 *3 88.9 89 88.9 89 86 86
8*65 *2.1/2 88.9 89 73.0 76 86 83
8*50 *2 88.9 89 60.3 57 86 76
8*40 *1.1/2 88.9 89 48.3 45 86 73
8*32 *1.1/4 88.9 89 42.4 38 86 70
9*90 3.1/*3.1/2 101.6 – 101.6 – 95 95
9*80 3.1/*3 101.6 – 88.9 89 95 92
9*65 3.1/*2.1/2 101.6 – 73.0 76 95 89
9*50 3.1/*2 101.6 – 60.3 57 95 83
9*40 3.1/*1.1/2 101.6 – 48.3 45 95 79
10*100 *4 114.3 108 114.3 108 105 105
10*90 *3.1/2 114.3 108 101.6 – 105 102
10*80 *3 114.3 108 88.9 89 105 98
10*65 *2.1/2 114.3 108 73.0 76 105 95
10*50 *2 114.3 108 60.3 57 105 89
10*40 *1.1/2 114.3 108 48.3 45 105 86
12*125 *5 141.3 133 141.3 133 124 124
12*100 *4 141.3 133 114.3 108 124 117
12*90 *3.1/2 141.3 – 101.6 – 124 114
12*80 *3 141.3 133 88.9 89 124 111
12*65 *2.1.2 141.3 133 73.0 76 124 108
12*50 *2 141.3 133 60.3 57 124 105
15*150 *6 168.3 159 168.3 159 143 143
15*125 *5 168.3 159 141.3 133 143 137
15*100 *4 168.3 159 114.3 108 143 130
15*90 *3.1/2 168.3 – 101.6 – 143 127
15*80 *3 168.3 159 88.9 89 143 124
15*65 *2.1/2 168.3 159 73.0 76 143 121
20*200 *8 219.1 219 219.1 219 178 178
20*150 *6 219.1 219 168.3 159 178 168
20*125 *5 219.1 219 141.4 133 178 162
20*100 *4 219.1 219 114.3 108 178 156
20*90 *3.1/2 219.1 – 101.6 – 178 152
25*250 1*10 273.0 273 273.0 273 216 216
25*200 1*8 273.0 273 219.1 219 216 203
25*150 1*6 273.0 273 168.3 159 216 194
25*125 1*5 273.0 273 141.3 133 216 191
25*100 1*4 273.0 273 114.3 108 216 184
30*300 1*12 323.9 325 323.9 325 254 254
30*250 1*10 323.9 325 273.0 273 254 241
30*200 1*8 323.9 325 219.1 219 254 229
30*150 1*6 323.9 325 168.3 159 254 219
30*125 1*5 323.9 325 141.3 133 254 216
35*350 1*14 355.6 377 355.6 377 279 279
35*300 1*12 355.6 377 323.9 325 279 270
35*250 1*10 355.6 377 273.0 273 279 257
35*200 1*8 355.6 377 219.1 219 279 248
35*150 1*6 355.6 377 168.3 159 279 238
40*400 1*16 406.4 426 406.4 426 305 305
40*350 1*14 406.4 426 355.6 377 305 305
40*300 1*12 406.4 426 323.9 325 305 295
40*250 1*10 406.4 426 273.0 273 305 283
40*200 1*8 406.4 426 219.1 219 305 273
40*150 1*6 406.4 426 168.3 159 305 264
45*450 1*18 457 480 457 480 343 343
45*400 1*16 457 480 406.4 426 343 330
45*350 1*14 457 480 355.6 377 343 330
45*300 1*12 457 480 323.9 325 343 321
45*250 1*10 457 480 273.0 273 343 308
45*200 1*8 457 480 219.1 219 343 298
50*500 2*20 508 530 508 530 381 381
50*450 2*20 508 530 457 480 381 368
50*400 2*20 508 530 406.4 426 381 356
50*350 2*20 508 530 355.6 377 381 356
50*300 2*20 508 530 323.9 325 381 346
50*250 2*20 508 530 273.0 273 381 333
50*200 2*20 508 530 219.1 219 381 324

Looking to buy from ASME B16.9 Buttweld Pipe Cross manufacturer in India? buy from oldest Carbon Steel Equal Cross manufacturers in Mumbai. A leading Carbon Steel Unequal Cross, CS Reducing Cross supplier

Specialized in Following ASME B16.9 Carbon Steel Buttweld Cross

  • Carbon Steel Schedule 40 Seamless Cross
  • Carbon Steel Sch 40 Straight Cross
  • CS Buttweld Pipe Unequal Cross
  • High Yield CS A860 Buttweld Cross
  • Buy Carbon Steel Butt weld Pipe Cross
  • Carbon Steel Industrial Buttweld Cross
  • ASTM A234 CS Pipe Cross Manufacturer
  • Carbon Steel BW Equal Cross
  • Stockist of Carbon Steel Buttweld Cross
  • Carbon Steel ASTM A234 Pipe Cross Suppliers
  • Buttweld Carbon Steel Unequal Cross
  • A234 Gr.WPB Carbon Steel Equal Cross
  • Dimensions Butt Weld Straight Cross ASME B16.9
  • A234 Carbon Steel Cross Supplier
  • Carbon Steel Buttweld Cross Manufacturer
  • ANSI/ASME B16.9 Buttweld Reducing Cross
  • Supplier of Carbon Steel Buttweld Pipe Cross
  • Carbon Steel Pipe Cross Dealer
  • Exporter of Carbon Steel Buttweld Cross
  • Carbon Steel Pipe Cross Manufacturer In India
  • ASTM A420 LTCS Cross Wholesaler
  • Carbon Steel Unequal Pipe Cross
  • Carbon Steel Buttweld Cross Supplier in India
  • A860 High-Yield CS Reducing Cross Suppliers

Carbon Steel Pipe Cross Price List

DIN DN15-DN2000 Carbon Steel Cross FOB Price: US$ 14.00 - 13.00 / Piece
SCH40 Reducing Cross Price Carbon Steel Pipe Fittings FOB Price: US$ 4.80 - 12.00 / Piece
3 inch Carbon Steel Seamless Pipe Cross FOB Price: US$ 3.00 - 200.00 / Piece
1/2" to 24" Equal & Reducing Carbon Steel Butt Weld Cross FOB Price: US$ 0.75 / Piece
Carbon Steel Butt Weld Pipe Cross FOB Price: US$ 5.00 - 100.00 / Piece
5 inch Carbon Steel Pipe Cross FOB Price: US$ 3.00 - 2.00 / Piece
ANSI B16.9 Dimension of CS Cross FOB Price: US$ 2.00 - 200.00 / Piece
DN50 Carbon Steel Pipe Cross FOB Price: US$ 0.20 - 88.00 / Piece
ASTM A420 WPL6 Low Temperature Carbon Steel Pipe Cross FOB Price: US$ 3.00 - 200.00 / Piece
High Yield Carbon Steel Butt weld Cross Big Size FOB Price: US$ 2.00 - 5.00 / Piece
Carbon Steel Large Diameter Pipe Cross FOB Price: US$ 4.00 - 3.00 / Piece

Carbon Steel Buttweld Equal Cross Weight Chart

  Nominal pipe size in SCH 10 SCH 20 SCH 30

SCH 40
wall thk mm weight kg weight kg wall thk mm weight kg weight kg wall thk mm weight kg weight kg wall thk mm weight kg weight kg
  T     T     T

T




1″

3.38



0.34
1.1/4″

3.68



0.92
1/2″

2.77



0.21
3/4″

2.87



0.21







1.1/2″

3.56



0.63
2″

3.91



1.49
2.1/2″

5.16



2.68
3″

5.49



3.75
3.1/2″

5.74



5
4″

6.02



6.5
5″

6.55



10
6″

7.11



16
8″       6.35   23 7.04   24.6

8.18



27
10″       6.35   34.7 7.8   40

9.27



41
12″       6.35   43.4 8.38   56.6

10.31



70.5
14″ 6.35   68 7.92   84 9.53   102

11.13



105
16″ 6.35   90.8 7.92   100 9.53   110

12.7



167







18″ 6.35   93.1 9.53   127 11.13   164

14.27



237.45
20″ 6.35   112 9.53   168 12.7   245

15.09



320
22″ 6.35   146 9.53   220 12.7   280






24″ 6.35   160 12.7   240 14.27   373

17.48



570.65
26″ 7.92   293.28 12.7   360.2






28″ 7.92   280.98 12.7   421 15.88   526.25






30″ 7.92   322.64 12.7   483.1 15.88   603.75






32″ 7.92   375.23 12.7   559 15.88   698.75

17.48



768.6
34″ 7.92   482.72 12.7   644.1 15.88   805.13

17.48



885.65
36″ 7.92   488.3 12.7   730.3 15.88   912.88

19.05



1004.17

ANSI B16.9 Pipe Reducing Cross Fittings Weight Chart

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
1*15 1/*1/2 21.3 18 21.3 18 25 25
1*10 1/*3/8 21.3 18 17.3 14 25 25
1*8 1/*1/4 21.3 18 13.7 10 25 25
2*20 3/*3/4 26.9 25 26.9 25 29 29
2*15 3/*1/2 26.9 25 21.3 18 29 29
2*10 3/*3/8 26.9 25 17.3 14 29 29
2*25 *1 33.7 32 33.7 32 38 38
2*20 *3/4 33.7 32 26.9 25 38 38
2*15 *1/2 33.7 32 21.3 18 38 38
3*32 1.1/*1.1/4 42.4 38 42.4 38 48 48
3*25 1.1/*1 42.4 38 33.7 32 48 48
3*20 1.1/*3/4 42.4 38 26.9 25 48 48
3*15 1.1/*1/2 42.4 38 21.3 18 48 48
4*40 1.1/*1.1/2 48.3 45 48.3 45 57 57
4*32 1.1/*1.1/4 48.3 45 42.4 38 57 57
4*25 1.1/*1 48.3 45 33.7 32 57 57
4*20 1.1/*3/4 48.3 45 26.9 25 57 57
4*15 1.1/*1/2 48.3 45 21.3 18 57 57
5*50 *2 60.3 57 60.3 57 64 64
5*40 *1.1/2 60.3 57 48.3 45 64 60
5*32 *1.1/4 60.3 57 42.4 38 64 57
5*25 *1 60.3 57 33.7 32 64 51
5*20 *3/4 60.3 57 26.9 25 64 44
6*65 2/1/*2.1/2 73.0 76 73.0 76 76 76
6*50 2/1/*2 73.0 76 60.3 57 76 70
6*40 2/1/*1.1/2 73.0 76 48.3 45 76 67
6*32 2/1/*1.1/4 73.0 76 42.4 38 76 64
6*25 2/1/*1 73.0 76 33.7 32 76 57
8*80 *3 88.9 89 88.9 89 86 86
8*65 *2.1/2 88.9 89 73.0 76 86 83
8*50 *2 88.9 89 60.3 57 86 76
8*40 *1.1/2 88.9 89 48.3 45 86 73
8*32 *1.1/4 88.9 89 42.4 38 86 70
9*90 3.1/*3.1/2 101.6 – 101.6 – 95 95
9*80 3.1/*3 101.6 – 88.9 89 95 92
9*65 3.1/*2.1/2 101.6 – 73.0 76 95 89
9*50 3.1/*2 101.6 – 60.3 57 95 83
9*40 3.1/*1.1/2 101.6 – 48.3 45 95 79
10*100 *4 114.3 108 114.3 108 105 105
10*90 *3.1/2 114.3 108 101.6 – 105 102
10*80 *3 114.3 108 88.9 89 105 98
10*65 *2.1/2 114.3 108 73.0 76 105 95
10*50 *2 114.3 108 60.3 57 105 89
10*40 *1.1/2 114.3 108 48.3 45 105 86
12*125 *5 141.3 133 141.3 133 124 124
12*100 *4 141.3 133 114.3 108 124 117
12*90 *3.1/2 141.3 – 101.6 – 124 114
12*80 *3 141.3 133 88.9 89 124 111
12*65 *2.1.2 141.3 133 73.0 76 124 108
12*50 *2 141.3 133 60.3 57 124 105
15*150 *6 168.3 159 168.3 159 143 143
15*125 *5 168.3 159 141.3 133 143 137
15*100 *4 168.3 159 114.3 108 143 130
15*90 *3.1/2 168.3 – 101.6 – 143 127
15*80 *3 168.3 159 88.9 89 143 124
15*65 *2.1/2 168.3 159 73.0 76 143 121
20*200 *8 219.1 219 219.1 219 178 178
20*150 *6 219.1 219 168.3 159 178 168
20*125 *5 219.1 219 141.4 133 178 162
20*100 *4 219.1 219 114.3 108 178 156
20*90 *3.1/2 219.1 – 101.6 – 178 152
25*250 1*10 273.0 273 273.0 273 216 216
25*200 1*8 273.0 273 219.1 219 216 203
25*150 1*6 273.0 273 168.3 159 216 194
25*125 1*5 273.0 273 141.3 133 216 191
25*100 1*4 273.0 273 114.3 108 216 184
30*300 1*12 323.9 325 323.9 325 254 254
30*250 1*10 323.9 325 273.0 273 254 241
30*200 1*8 323.9 325 219.1 219 254 229
30*150 1*6 323.9 325 168.3 159 254 219
30*125 1*5 323.9 325 141.3 133 254 216
35*350 1*14 355.6 377 355.6 377 279 279
35*300 1*12 355.6 377 323.9 325 279 270
35*250 1*10 355.6 377 273.0 273 279 257
35*200 1*8 355.6 377 219.1 219 279 248
35*150 1*6 355.6 377 168.3 159 279 238
40*400 1*16 406.4 426 406.4 426 305 305
40*350 1*14 406.4 426 355.6 377 305 305
40*300 1*12 406.4 426 323.9 325 305 295
40*250 1*10 406.4 426 273.0 273 305 283
40*200 1*8 406.4 426 219.1 219 305 273
40*150 1*6 406.4 426 168.3 159 305 264
45*450 1*18 457 480 457 480 343 343
45*400 1*16 457 480 406.4 426 343 330
45*350 1*14 457 480 355.6 377 343 330
45*300 1*12 457 480 323.9 325 343 321
45*250 1*10 457 480 273.0 273 343 308
45*200 1*8 457 480 219.1 219 343 298
50*500 2*20 508 530 508 530 381 381
50*450 2*20 508 530 457 480 381 368
50*400 2*20 508 530 406.4 426 381 356
50*350 2*20 508 530 355.6 377 381 356
50*300 2*20 508 530 323.9 325 381 346
50*250 2*20 508 530 273.0 273 381 333
50*200 2*20 508 530 219.1 219 381 324
Industrial Applications

Carbon Steel Pipe Cross Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
  • Fire Fighting
  • HVAC & MEP
Are you in search of a reliable manufacturer of Carbon Steel Pipe Cross in Mumbai, India? We offer high-quality Carbon Steel Buttweld Cross at competitive prices.
whatsapp

Talk to us?
