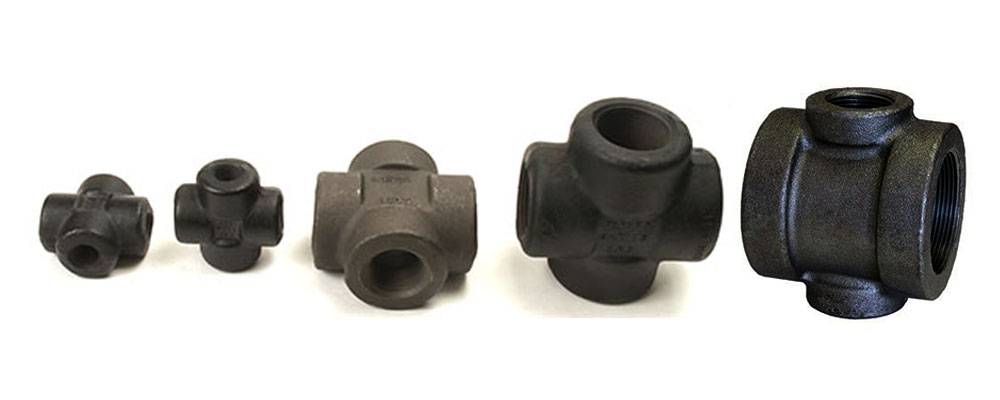

Rajdhan Metal is known for its production and distribution of quality products. We are renowned in the industry for providing exemplary service. The Carbon Steel Threaded Unequal Cross is one of the goods that the company is proud of. Due to the abundance of high-quality raw materials, several suppliers have developed their expertise in producing and delivering a range of industrial items. To fully satisfy everyone's needs, we are providing Carbon Steel Threaded Unequal cross to various other manufacturers at broad price ranges. The product is delivered to the customer in a variety of dimensions, sizes, types, classifications, and standards, all precisely in accordance with the expectations and requirements of the client for various reasons. The pipe cross with the four branch ends that do not have the same diameters is known as an uneven cross or decreasing cross.
What is Carbon Steel Threaded
Unequal Cross?
The reducing cross joins the pipes of various sizes, much like an
uneven tee. As a reputable producer of Carbon Steel Threaded Unequal Cross, a solid-solution alloy
that can only be hardened through cold working, we are well known in the industry. We offer Forged
Screwed Unequal Cross at incredibly low costs for the time period selected. This Forged Threaded
Unequal Cross was created by our experts in accordance with international standards and utilizing
top-notch materials. To guarantee the longevity and quality of the products, our team of quality
controllers examines the entire variety of Carbon Steel Forged Screwed Unequal Cross to be given on
various aspects.
The Carbon Steel Forged Threaded Unequal Cross is renowned for its long lifespan, resistance to corrosion, high tensile strength, resilience, resistance to acid and alkaline solutions, rugged design, corrosion-free nature, and high performance, and more. The Carbon Steel Forged Screwed Reducing Cross distinguishes out from similar products because of its long, pointed focus point hub.
Our carbon steel equal cross is used in the manufacture of heat exchangers, valves, pumps, petrochemical plants, nuclear power projects, oil & gas equipment, chemical processing, hydrocarbon processing, marine engineering, and chemical processing of hydrocarbons.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8″ NB TO 4″ NB |
Thread | NPT, BSPT, BSPP (Male / Female) |
Types | Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
NPT, ISO/BSP, SAE threads carbon steel unequal cross manufacturers, asme B16.11 threaded reducing cross fitting stockist in Mumbai, check forged screwed unequal cross price in India.
NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
2 | 19 | 19.2 | 75 | 60 | 4.27 |
2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
4 | 27.7 | 33 | 146 | 106 | 6.55 |
NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
2 | 19 | 19.2 | 84 | 64 | 7.14 |
2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
4 | 27.7 | 33 | 152 | 114 | 11.18 |
NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
2 | 19 | 19.2 | 102 | 83 | 12.09 |
2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
4 | 27.7 | 33 | 152 | 114 | 18.67 |
SIZE (in MM) | SIZE (in Inches) | Price |
8MM | 1/4" | 190.00 |
10MM | 3/8" | 200.00 |
15MM | 1/2" | 225.00 |
20MM | 3/4" | 353.00 |
25MM | 1" | 536.00 |
32MM | 1-1/4" | 1100.00 |
40MM | 1-1/2" | 1560.00 |
50MM | 2" | 2430.00 |

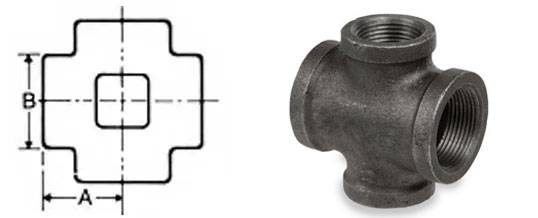

Class 2000 | Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
A | – | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
Wt | – | 0.500 | 0.460 | 0.777 | 1.125 | 1.688 | 2.450 | 3.188 | 5.560 | 16.438 | 19.500 | 32.688 | |
Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
Wt | 0.438 | 0.567 | 0.970 | 1.500 | 2.500 | 3.620 | 4.125 | 6.500 | 8.125 | 16.750 | 25.675 | 32.000 | |
Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
Wt | 0.563 | 1.188 | 1.500 | 2.750 | 4.313 | 6.625 | 10.750 | 11.500 | 22.188 | 27.500 | 54.000 | 43.500 |
