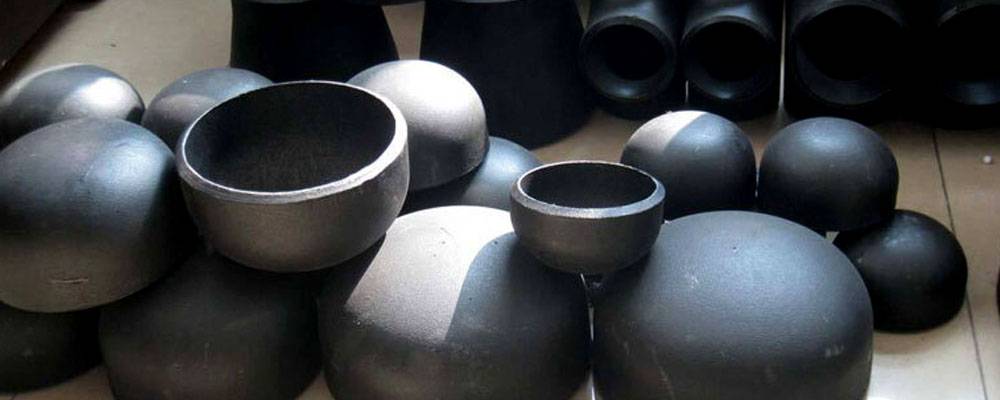

Carbon Steel Pipe Cap
ASTM A420 LTCS Pipe Cap, Carbon Steel Buttweld Pipe Cap, ASTM A234 Carbon Steel Pipe Cap, Carbon Steel Pipe Cap Suppliers, Carbon Steel Seamless Pipe Cap, CS Pipe Cap, Carbon Steel Butt weld Pipe Cap Manufacturers in India.
Carbon Steel Pipe Caps are designed to be used in a variety of applications. They provide excellent protection against corrosion and wear, helping to extend the life of your pipes. The caps can be welded or threaded onto the ends of piping for added strength and stability. With their low cost and availability, Carbon Steel Pipe Caps are increasingly becoming an attractive option for many industries.
- What is Carbon Steel Pipe Cap?
- Carbon Steel Pipe Cap Specification
- Carbon Steel Pipe Cap Dimensions
- CS ASME B16.9 Pipe Cap Weight Chart
- Dimensional Tolerances of ANSI B16.9 Pipe Cap
- Carbon Steel Pipe Cap Schedule Chart
- Specialized in Following ASME B16.9 CS Pipe Cap
- Carbon Steel Buttweld Pipe Cap Price List
- CS Buttweld Pipe Cap Industrial Applications
- Carbon Steel BW Pipe Cap Manufacturing Process
Low Temperature Carbon Steel A420 WPL6 Pipe Cap, Carbon Steel End Pipe Cap, Carbon Steel Pipe Cap Manufacturer, ASTM A234 WPB Pipe Cap, Carbon Steel BW Pipe Cap, Carbon Steel Pipe Cap Suppliers In Mumbai.
They offer superior performance when compared to other materials such as aluminum and stainless steel pipe caps as they are more rigid and durable with greater tensile strength. Additionally, carbon steel is less brittle than other metals which makes it ideal for use in high-pressure applications. Furthermore, its resistance to chemicals means that it will remain undamaged in environments containing caustic substances.
Carbon Steel Pipe Caps are available in a variety of sizes and styles, allowing for easy customization to fit any piping needs. Whether you need threaded caps or welded caps, we provide the perfect solution for your project. With our extensive selection, you are sure to find the right cap that meets all your requirements.
To ensure quality assurance and optimal performance, Carbon Steel Pipe Caps come backed by our reliable warranty so you can feel confident when ordering from us. At Rajdhan Metal, we strive to offer only top-notch products at unbeatable prices so place your order today and enjoy fast shipping plus excellent customer service.
Carbon Steel Pipe Cap Exporter in India, CS Buttweld Pipe Cap, CS SMLS Pipe Cap, ANSI B16.9 CS Pipe Cap, ASTM A860 High Yield Carbon Steel Pipe Cap, CS End Pipe Cap, Manufacturer of Carbon Steel Buttweld Pipe Cap in Mumbai, India.
Carbon Steel Pipe Cap Material Specification
| Standard | ASTM A234, A860, A420 / ASME SA234, SA860, SA420, MSS SP-75 |
| Manufacturing Standard | ANSI B16.9, JIS B2312, JIS B2313, DIN2615 |
| Size Range | 1/2”, 1”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16”, 20” to 48”. (DN15-DN1200) |
| Thickness | SCH 10, SCH 40, SCH 80 |
| Type | Seamless / ERW / Welded / Fabricated |
| Carbon Steel Grades | ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9 |
Call us to get the latest price list for Carbon Steel Buttweld Pipe Cap in Mumbai, Maharashtra. We have special offers available for Carbon Steel Pipe Cap with the best price.
Carbon Steel Pipe Cap Dimensions
| Nominal Pipe Size | Outside diameter at bevel |
Length(E) | Limitwall thickness |
| 1/2" | 21.3 | 25 | 4.57 |
| 3/4" | 26.7 | 25 | 3.81 |
| 1" | 33.4 | 38 | 4.57 |
| 1 1/4" | 42.2 | 38 | 4.83 |
| 1 1/2" | 48.3 | 38 | 5.08 |
| 2" | 60.3 | 38 | 5.59 |
| 2 1/2" | 73.0 | 38 | 7.11 |
| 3" | 88.9 | 51 | 7.62 |
| 3 1/2" | 101.6 | 64 | 8.13 |
| 4" | 114.3 | 64 | 8.64 |
| 5" | 141.3 | 76 | 9.65 |
| 6" | 168.3 | 89 | 10.92 |
| 8" | 219.1 | 102 | 12.70 |
| 10" | 273.0 | 127 | 12.70 |
| 12" | 323.8 | 152 | 12.70 |
| 14" | 355.6 | 165 | 12.70 |
| 16" | 406.4 | 178 | 12.70 |
| 18" | 457.0 | 203 | 12.70 |
| 20" | 508.0 | 229 | 12.70 |
| 22" | 559.0 | 254 | 12.70 |
| 24" | 610.0 | 267 | 12.70 |
CS ASME B16.9 Pipe Cap Weight Chart
| NPS | STD | XS | SCH 160 | XXS |
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
Dimensional Tolerances of ANSI B16.9 Pipe Cap
| DIMENSIONAL TOLERANCES – CAPS | ||||
| For all fittings | Caps | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4 -3 | 3,2 | 7 | |
| 20 a 24 | +6 -5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 | |
Carbon Steel Pipe Cap Schedule Chart
| Normal Pipe Size | STD | XS | SCH 160 | XXS |
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
Searching for a trusted ASME B16.9 Pipe Cap manufacturer in India? buy from oldest Carbon Steel Pipe Cap manufacturers in Mumbai. Check Carbon Steel Buttweld Pipe Cap, CS Butt Weld Pipe Cap Suppliers
Specialized in Following ASME B16.9 Carbon Steel Pipe Cap
- Carbon Steel BW Pipe Cap Supplier
- Stockist of Carbon Steel End Pipe Cap
- Standard Carbon Steel Butt Weld Pipe Cap
- Buy Carbon Steel Pipe Caps
- Carbon Steel Pipe Cap Manufacturers in Mumbai
- Carbon Steel Industrial Pipe Caps
- ASTM A234 CS Pipe Cap Manufacturer
- CS Pipe Cap at Best Price In India
- Low Temperature Steel A420 WPL3 Pipe Cap
- High Yield CS A860 Butt weld Pipe Cap
- A234 Gr.WPB Carbon Steel Pipe Cap
- Carbon Steel ASTM A234 Pipe Cap Suppliers
- Buttweld Carbon Steel Pipe Cap
- Carbon Steel Buttweld Pipe Cap Supplier in India
- Supplier of Carbon Steel Buttweld Pipe Cap
- Carbon Steel Pipe Pipe Cap Dealer
- Exporter of Carbon Steel Buttweld Pipe Cap
- A860 High-Yield Carbon Steel Pipe Cap Suppliers
- Carbon Steel Dimensions Pipe Cap ASME B16.9
- A234 Carbon Steel Pipe Cap Supplier
- A420 Low Temperature Carbon Steel Pipe Cap
- CS Buttweld Pipe Cap Manufacturer
- Carbon Steel SMLS End Pipe Cap
- CS ANSI/ASME B16.9 Buttweld Pipe Cap
- Carbon Steel Pipe Cap Manufacturer In India
- ASTM A420 LTCS Pipe Cap Wholesaler
Carbon Steel Pipe Cap Price List
| low temperture carbon steel sa420 wpl3 pipe cap | FOB Price: US$ 3.00 - 5.00 / Piece |
| carbon steel asme b16.9 pipe cap | FOB Price: US$ 2.00 - 9.00 / Piece |
| astm a234 wpb carbon steel butt weld pipe cap | FOB Price: US$ 0.30 - 30.00 / Piece |
| astm a420 wpl6 low temperature steel pipe cap | FOB Price: US$ 7.00 - 800.00 / Piece |
| end pipe cap high yield carbon steel | FOB Price: US$ 15.00 / 300.00 Piece |
| astm a234 grade wpb carbon steel pipe caps | FOB Price: US$ 16.00 / 310.00 Piece |
| carbon steel a234 wpb pipe cap dimensions | FOB Price: US$ 4.70 - 20.00 / Piece |
| carbon steel end pipe caps pipe fittings | FOB Price: US$ 4.00 - 200.00 / Piece |
| asme b16.9 dimension of cs pipe cap | FOB Price: US$ 3.00 - 200.00 / Piece |
Are you in search of a reliable manufacturer of Carbon Steel Pipe Cap in Mumbai, India? We offer high-quality Carbon Steel Buttweld Pipe Cap at competitive prices.

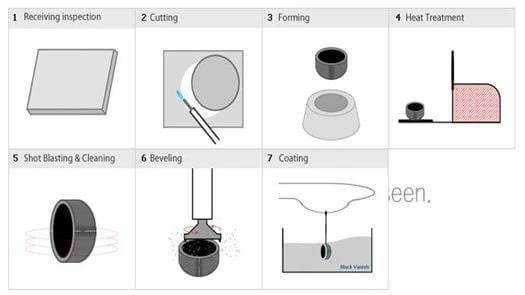

Carbon Steel Buttweld Pipe Cap Manufacturing Process
