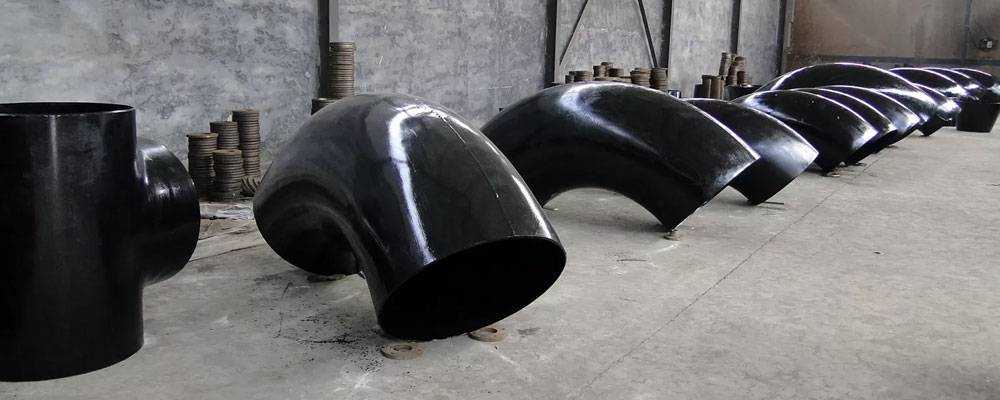

Carbon Steel ASME B16.9 1.5D Elbow
Carbon Steel 1.5D Elbows are pipe fittings designed to alter piping systems' flow direction. These elbows come in various sizes and can be seamlessly or welded based on their intended use. They are commonly used in gas or water systems to facilitate directional changes, reduce pipeline stress, or make systems more flexible. The radius of curvature in these elbows is 1.5 times the pipe diameter, which makes them perfect for improving gas and oil systems.
Carbon Steel 1.5D Elbow Suppliers, ANSI B16.9 1.5D Elbow, 1.5D Bend, 1.5D Long Radius Elbow, CS 1.5D Pipe Elbow, Carbon Steel 1.5D Elbow Manufacturers In India.
- Carbon Steel 1.5D Elbow Specification
- Carbon Steel 1.5D Elbow Dimensions
- Carbon Steel 1.5D Pipe Bend Drawing
- Carbon Steel 1.5D Bend Weight Chart
- Carbon Steel 1.5D Seamless Pipe Bend Radius Chart
- Dimension Tolerance Of Carbon Steel 1.5D Pipe Elbow
- Specialized in Following ASME B16.9 CS 1.5D Buttweld Elbow
- Carbon Steel 1.5D Buttweld Pipe Elbow Price List
- CS 1.5D Elbow Industrial Applications
1.5D Elbow's primary constituents, carbon and iron, provide its distinctive chemical composition, making it resistant to corrosion and rust while being extremely durable and capable of withstanding high levels of pressure - qualities that make it an excellent choice for heavy-duty applications. These pipe elbows are also easy to fabricate, making them popular for many applications.
Pipe bend 1.5d offers both cost benefits and long-term durability against corrosion, making them an excellent choice for applications requiring strong yet reliable fittings. Furthermore, fabrication is simple, which makes these butt weld elbows even more appealing to manufacturers of various products.
Rajdhan Metal is a highly respected manufacturer and supplier of seamless carbon steel 1.5D elbows. These elbows are manufactured to ASME B16.9 Standard and are available in different thicker walls, with a global distribution network. We have widespread application in the oil, gas, and petrochemical industries. At our manufacturing plant, we utilize only top-quality raw materials and cutting-edge technology for production.
The 1.5d bend has many other features, such as quick disconnection, easy fitting before sealing, and reusability. We also offer several other elbow types, such as 1D elbow, 90 degree elbow, and 45 degree elbow. Surface treatment of the 1.5d elbow is also very important, and we can provide various options, such as black paint, galvanizing, green paint, sandblasting, epoxy coating, 3PE, anticorrosion, etc., to meet different environmental needs.
Manufacturer of 1.5D elbow in India in wide range of sizes and wall thickness
Carbon Steel 1.5D Elbow Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| 1.5D Elbow size | Seamless : 1/2 inch to 24 inch Welded / ERW : 2 inch to 36 inch. |
| Common types of 1.5D Elbow | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Connection | Welding |
| Bend Radii | 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm. |
| Bending angle (θ) | 15 Deg, 22 Deg, 22.5 Deg, 30Deg, 45 Deg, 60Deg, 90 Deg, 135 Deg, 180 Degree Elbow or custom Manufacturer in India. |
| Elbow LR 1.5D Standard | ANSI/ ASME B16.9, MSS-SP-43, ASME B16.28, BS4504, BS4504, BS1560, BS10 |
| 1.5D Elbow Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Application | Electric Power, Water Disposal, Chemical Engineering, Nuclear Energy, Ship Building, Garbage Disposal, Petroleum Oil, Natural Gas |
Check Carbon Steel 1.5D Pipe Elbow Price List, Sizes and Dimensions.
Carbon Steel 1.5D Elbow Dimensions
| Inside Diameter | Wall Thickness | Wt Per Piece | Centreline Radius |
| 'A' mm | 'B' mm | kilos | 'C' mm |
| 15 | 1.50 | 0.03 | 30 |
| 20 | 1.50 | 0.04 | 35 |
| 25 | 1.50 | 0.06 | 32.5 |
| 32 | 1.50 | 0.11 | 45 |
| 40 | 1.50 | 0.20 | 60 |
| 50 | 2.00 | 0.31 | 73 |
| 65 | 2.00 | 0.52 | 95 |
| 80 | 2.00 | 0.77 | 123 |
| 100 | 2.00 | 1.20 | 150 |
| 100 | 3.00 | 1.79 | 150 |
| 125 | 2.00 | 1.88 | 188 |
| 150 | 2.00 | 2.69 | 225 |
| 150 | 3.00 | 4.09 | 225 |
Carbon Steel 1.5D Pipe Bend Drawing
Carbon Steel 1.5D Bend Weight Chart
| NPS inches |
Bends 1.5D | |||||||
|---|---|---|---|---|---|---|---|---|
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
Carbon Steel 1.5D Seamless Pipe Bend Radius Chart
| Standard pipe | Spec | . Bauart 5 | 2,5D | |
|---|---|---|---|---|
| DN | Diameter [ØD] | CLR | CLR | CLR |
| 20 | 26,9 | 110 | 67 | |
| 25 | 33,7 | 110 | 84 | |
| 32 | 42,4 | 110 | 106 | |
| 40 | 48,3 | 110 | 212 | |
| 50 | 60,3 | 125 | 151 | |
| 65 | 76,1 | 175 | 190 | |
| 80 | 88,9 | 205 | 222 | |
| 100 | 114,3 | 270 | 286 | |
| 125 | 139,7 | 330 | 350 | |
| 150 | 168,3 | 390 | 421 | |
| 200 | 219,1 | 510 | ||
| 250 | 273 | 650 | ||
| 300 | 323,9 | 775 | ||
| 350 | 355,6 | 850 | ||
| 400 | 406,4 | 970 | ||
| 500 | 508 | 1245 | ||
Dimension Tolerance Of Carbon Steel 1.5D Pipe Elbow
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 |
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
| Center to End LR (A/B) | 2 | 2 | 2 | 2 |
| Center to End 3D (A/B) | 3 | 3 | 3 | 3 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Center to End LR (A/B) | 2 | 2 | 3 | 5 |
| Center to End 3D (A/B) | 3 | 3 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||
Specialized in Following ASME B16.9 CS 1.5D Buttweld Elbow
- ASTM A234 CS 1.5D Seamless Elbow
- Carbon Steel Industrial 1.5D Elbow
- Stockist of Carbon Steel 1.5D Butt Weld Elbow
- CS A234 WPB 1.5D Pipe Elbow Supplier
- Short Radius Carbon Steel 1.5D Elbow
- Carbon Steel Elbow 1.5D
- ASTM A234 CS 1.5D Elbow Manufacturer
- Carbon Steel 1.5D Elbow ANSI B16.9
- ASTM A420 Low Temperature Steel 1.5D Elbow
- CS ASME B16.9 1.5D SCH 10 Elbow
- High Yield CS A860 1.5D Buttweld Elbow
- CS A234 1.5D Pipe Elbows Suppliers
- Carbon Steel 1.5D Pipe Elbow Sch 80
- Carbon Steel 1.5D Butt Weld Elbow Manufacturer
- ASME B16.9 1.5D Elbow Manufacturer in India
- A860 High Yield Carbon Steel 1.5D Elbow Suppliers
- Carbon Steel 1.5D Schedule 5S Pipe Elbow
- CS 1.5D Elbow Manufacturer In India
- Carbon Steel 1.5D Seamless Pipe Bend in India
- Exporter of Carbon Steel 1.5D Elbow
- ASTM A420 LTCS 1.5D Elbow Wholesaler
- Carbon Steel 1.5D Elbow Dealer
- Supplier of CS 1.5D Buttweld Pipe Elbows
- Carbon Steel Elbow Seamless 90° 1.5D SCH 40
- CS Buttweld 10 Inch 1.5D 90 deg. Elbow Supplier in India
- ASME B16.9 Carbon Steel 1.5D Elbow Manufacturer in India
Carbon Steel 1.5D Buttweld Pipe Elbow Price List
| 3 inch Short Radius Schedule 80 Carbon Steel 1.5D Elbow | FOB Price: US$ 3.00 - 200.00 / Piece |
| CS 1.5D LR Elbow Buttweld Fittings | FOB Price: US$ 4.00 - 6.00 / Piece |
| Long Radius Sch 10 CS 1.5D Elbow | FOB Price: US$ 0.30 - 70.00 / Piece |
| Carbon Steel MSS SP-43 180 Deg Elbow 1.5D | FOB Price: US$ 12.00 - 8.00 / Piece |
| Carbon Steel A234 1.5D Pipe Elbows Suppliers | FOB Price: US$ 19.00 - 22.00 / Piece |
| Carbon Steel Butt Weld DIN 2605 1.5D Elbow | FOB Price: US$ 3.00 - 300.00 / Piece |
| ASTM A234 Carbon Steel 1.5D Elbow | FOB Price: US$ 4.80 - 5.00 / Piece |
| ASTM A420 Low Temperature Carbon Steel 1.5D Elbow | FOB Price: US$ 3.00 - 400.00 / Piece |
| Sch60 Carbon Steel 1.5D Elbow | FOB Price: US$ 3.00 - 400.00 / Piece |
| CS Buttweld Elbow Seamless 90° 1.5D SCH 40 | FOB Price: US$ 2.00 - 600.00 / Piece |
| 5 inch 1.5D Carbon Steel Buttweld Elbow | FOB Price: US$ 4.00 - 9.00 / Piece |
Are you in search of a reliable manufacturer of Carbon Steel 1.5D Pipe Elbow in Mumbai, India? We offer high-quality CS 1.5D Buttweld Elbows at competitive prices.
FAQs
-
What is a Carbon Steel 1.5D Elbow?A carbon steel 1.5D elbow is a pipe fitting that is used to change the direction of the flow in a pipeline. The '1.5D' refers to the elbow radius being 1.5 times the elbow’s diameter, offering a smoother bend than a 1D elbow.
-
Are Carbon Steel 1.5D Elbows corrosion resistant?Although carbon steel has good durability, it is not as resistant to corrosion than stainless steel and other materials that are resistant to corrosion. The resistance to corrosion can be improved with paints and coatings or by using carbon steel alloys containing additional elements to increase the durability.
-
Are Carbon Steel 1.5D Elbows standard or do they come in different sizes?Carbon 1.5D Steel Elbows come in a range of standard sizes, fitting common pipe diameters. They can also be custom manufactured to meet specific pipeline requirements.
-
Can I weld a Carbon Steel 1.5D Elbow to pipes?Yes, carbon steel 1.5D elbows are designed to be weldable to pipes. They should be welded by qualified personnel following appropriate procedures to ensure a secure and leak-free connection.
-
What materials are 1.5D elbows made from?1.5D elbows can be of carbon steel, stainless steel, alloy steel, PVC copper and aluminum. The selection of the material is based on the characteristics of the fluid and the operational environment.
-
How do I install a 1.5D elbow?Installation of a 1.5D elbow will depend on the type and material of the elbow. Generally, it can be welded, threaded, or mechanically joined to the pipe system. Always follow the manufacturer's installation procedures or consult a professional if unsure.
-
What is the difference between a 1.5D elbow and a 1D elbow?The difference between a 1.5D and a 1D elbow is the radius of the curve; a 1D elbow has a radius equal to the elbow's diameter, resulting in a sharper turn. In contrast, a 1.5D elbow has a 1.5 times larger radius, providing a gentler bend.
-
How do I choose the right size 1.5D elbow?In order to pick the right size 1.5D elbow, your existing pipe system’s diameter needs to be understood. The elbow must have an inner diameter similar to the pipe’s outer diameter because of the latter could fit perfectly.
-
How do I choose the right schedule number for a Carbon Steel 1.5D Elbow?The schedule number relates to the thickness of the pipe fitting. Choose a schedule number based on the operating pressure and temperature of your system. Higher schedule numbers mean thicker walls and the capability to withstand higher pressures.
-
In what applications are 1.5D elbows typically used?1.5D elbows are commonly used in applications where there's a need for a gentle fluid turn to minimize pressure drops and turbulence. This includes water supply systems, oil & petrochemical processing, power plants, and many other industrial fluid transport systems.
