Rajdhan Metal is a dependable manufacturer, supplier, and exporter of high-quality Carbon Steel A105 Forged Plug. We are an inventive and creative firm that is well-known across the world for dealing with the most important customers and providing complete ranges of carbon steel forged. We provide Carbon Steel A105 Forged Plug to customers in a variety of specifications, sizes, classes, and kinds. We also provide these high-quality forged bushings in customised specifications based on the needs of our customers.
Rajdhan Metal supplies ASTM A105 CS Forged Plugs, which have too many wonderful characteristics to offer and have become the most popular product. Our forged plugs are extremely formable and weldable. These also have non-magnetic properties. Our forged plugs and bushings have high mechanical strength, good dimensional precision, exquisite surface finishes, and durable construction. They can withstand high pressure, and high temperatures, and have a non-corrosive body.
What is A105 Plug?

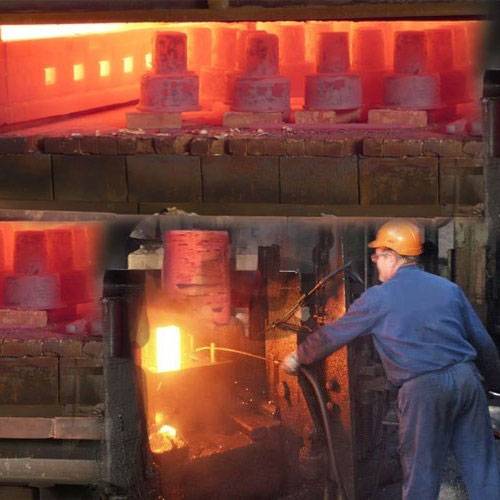

At our well-developed facilities, Rajdhan Metal manufactures top grade ASTM A105 CS Forged Plugs under
the strict supervision of skilled team members. Our engineers employ cutting-edge technology and
current technologies in our industry to produce high-quality ASTM A105 CS Forged Plugs to meet the
needs of our customers. We undertake numerous non-destructive and destructive testing on CS plugs
before delivery and then supply them to the intended clients within the deadlines.
We guarantee on-time and damage-free delivery to the client's location, complete with all necessary documentation and labels. Rajdhan Metal is the top Businessperson, manufacturer, and Supplier of Carbon Steel A105 Forged Plug in India due to its reliability and performance. Our CS A105 Forged Plug is available in the following sizes and classifications.
Applications of Carbon Steel A105 Forged Plug : Petroleum, Power generation plant, The Gas Industry, Hardware devices, Metallurgy, Machinery, Construction Shipbuilding.
| Specifications | ASTM A105, ASME SA 105 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB |
| Thread | NPT, BSPT, BSPP |
| Connection | (male or female) Screwed-Threaded Fittings |

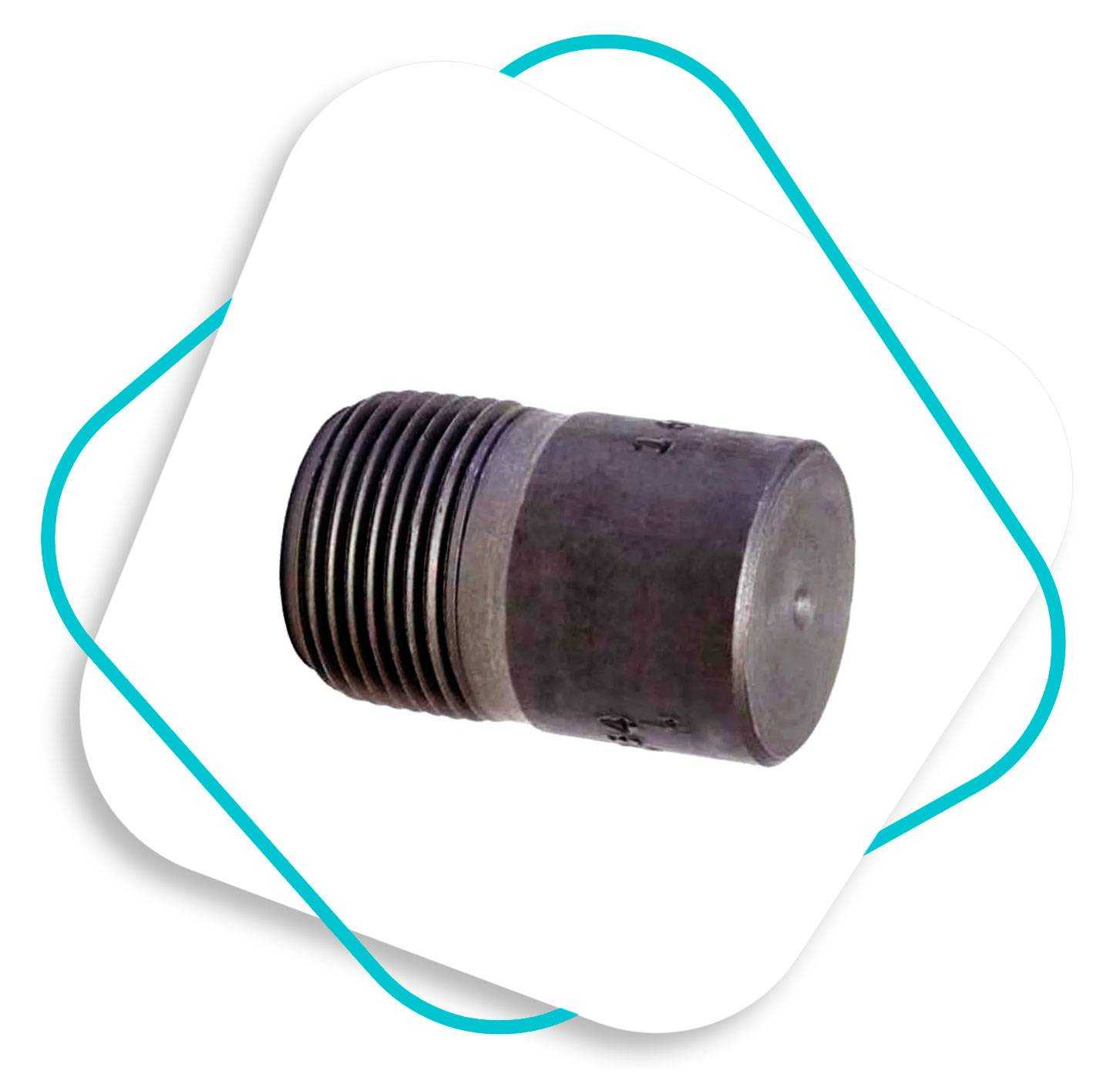

| Types of Plug in Piping | Threaded Plug, Socket Weld Plug, Hex head, Round head, and Square head plugs |
| Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

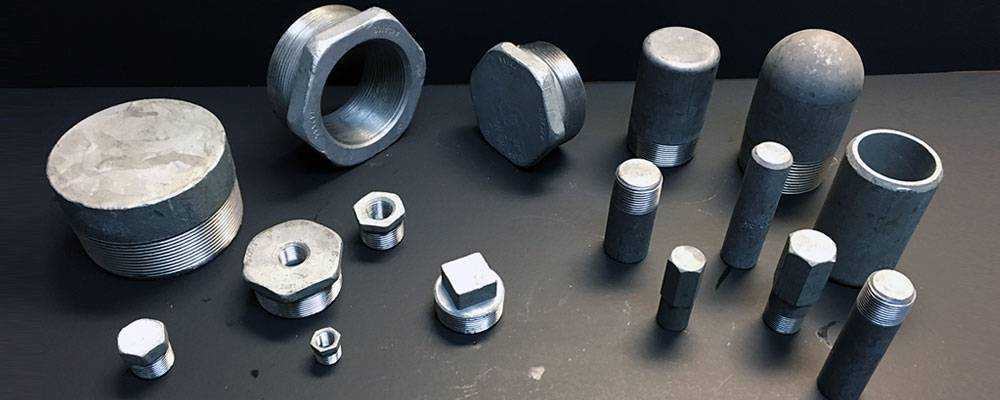

View the dimension for A/SA105N NPT black steel threaded Plugs. We offer different types of plugs, including hex head, square head, and round head plugs for piping connection.
| Dimensions Of ASME B16.11 Plug In Millimeter | |||||||||||
| NPS (Normal Pipe Sizes) | Length (Min.) A |
||||||||||
| Square Head Plugs | Round Head Plugs | Hex & Bushings Plugs | |||||||||
| Square Hight (Min.) B |
Minimum Of Width Flats C |
Head Nominal Diameter E |
Minimum Length Of D | Nominal Width Of Flats F |
Minimum Hex Height | ||||||
| Bushing G |
Plug H |
||||||||||
| 1/8” | 9.7 | 6.6 | 7.1 | 10.4 | 35.1 | 11.2 | – | 6.4 | |||
| 1/4” | 11.2 | 6.6 | 9.7 | 13.5 | 41.1 | 15.7 | 3.0 | 6.4 | |||
| 3/8” | 12.7 | 7.9 | 11.2 | 17.5 | 41.1 | 17.5 | 4.1 | 7.9 | |||
| 1/2” | 14.2 | 9.7 | 14.2 | 21.3 | 44.5 | 22.4 | 4.8 | 7.9 | |||
| 3/4” | 15.7 | 11.2 | 15.7 | 26.9 | 44.5 | 26.9 | 5.6 | 9.7 | |||
| 1” | 19.1 | 12.7 | 20.6 | 33.3 | 50.8 | 35.1 | 6.4 | 9.7 | |||
| 1-1/4” | 20.6 | 14.2 | 23.9 | 42.9 | 50.8 | 44.5 | 7.1 | 14.2 | |||
| 1-1/2” | 20.6 | 15.7 | 28.4 | 48.5 | 50.8 | 50.8 | 7.9 | 15.7 | |||
| 2” | 22.4 | 17.5 | 33.3 | 60.5 | 63.5 | 63.5 | 8.6 | 17.5 | |||
| 2-2/2” | 26.9 | 19.1 | 38.1 | 73.2 | 69.9 | 76.2 | 9.7 | 19.1 | |||
| 3” | 28.4 | 20.6 | 42.9 | 88.9 | 69.9 | 88.9 | 10.4 | 20.6 | |||
| 4” | 31.8 | 25.4 | 53.5 | 114.3 | 76.2 | 117.3 | 12.7 | 25.4 | |||
| ASME B16.11 Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
|
|
| Size | Class | Grade | Type Of Forged Plug | Price In INR (Per Piece) |
| 3/4 inch | Class 6000 | ASME SA 105N | Black Carbon Steel Hexagon Head Plug | 98.00 |
| 1/4" NPT | Class 3000 | ASTM A105 | Forged Carbon Steel Square head plug | 185.00 |
| 1/2 NPS | Class 3000 | ASTM A105N | Carbon Steel Forged HexagonalPlug | 250.00 |
| 1” NPS | Class 3000 | ASME SA 105 | Forged Threaded Round Plug | 335.00 |
| Type | Forged Screwed-Threaded Fitting ANSI B16.11 - Classes 3000 - 6000 LBS Weight (kg) |
|||||||||||
| Plugs | Class | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 ¼" | 1 ½" | 2" | 2 ½" | 3" | 4" |
| TQ. 3000TE. 6000TT. | 0.016 | 0.028 | 0.048 | 0.090 | 0.170 | 0.273 | 0.400 | 0.600 | 0.890 | 1.25 | 3.10 | |
| 0.026 | 0.047 | 0.071 | 0.130 | 0.218 | 0.410 | 0.490 | 0.770 | 1.61 | 1.94 | 4.50 | ||
| 0.048 | 0.070 | 0.130 | 0.220 | 0.320 | 0.500 | 0.720 | 1.35 | 2.20 | 3.30 | 6.00 | ||
