ASME B16.11 Fittings are a type of fitting used primarily in industrial environments, such as petrochemical plants, oil refineries, and chemical manufacturing facilities. They provide an effective solution for connecting pipe sections or equipment components quickly and easily. ASME B16.11 Fittings are designed to meet the specific requirements of different industries and applications, offering superior strength and durability compared to other types of fittings. The materials used for these fittings range from brass, stainless steel, carbon steel, and special alloys, offering a wide range of options for any application. These versatile fittings can be used to connect pipes with different sizes, shapes, angles, and pressure ratings without compromising the integrity of the system. ASME B16.11 Fittings are renowned for their superior quality and reliability, making them the go-to choice for industries that need reliable connections.

Table of Content

What is ASME B16 11 Fittings?
ASME B16.11 Standard Specifications
Types of ASME B16.11 Fittings
ASME B16.11 Fittings Dimensions
Dimension Tolerances of ASME B16 11 Fittings
ASME B16.11 Class 3000 Fittings Dimensions
Specialized in Following ASME B16.11 Forged Fittings
ASME B16 11 Fittings Price List
ASME B16.11 Fittings Weight Chart
ANSI B16 11 Material
ASME B16 11 Standard
ASME B16 11 Tolerance Chart
- Class 3000 Pressure Rating in PSI
- Class 6000 Fittings Pressure Rating
ASME/ANSI B16.11 Fittings Industrial Applications

Manufacturing of Forged Fitting in Factory

ANSI B16.11 Fittings Suppliers, ASME B16 11 Standard, ASME B16.11 Material, ASME B16.11 Class 3000 Forged Pipe Fittings Manufacturer.

What is ASME B16 11?
The ASME B16.11 standard specifies the general requirements, dimensions, and technical properties of these fittings to ensure they meet a minimum level of performance in any application. These fittings have excellent mechanical strength and corrosion resistance, as well as high-temperature compatibility, which makes them ideal for highly demanding applications. Moreover, this type of fitting can easily be resized or modified according to specific needs without compromising its integrity or performance over time.

At Rajdhan Metal, we specialize in supplying top-of-the-line ASME B16.11 Fittings for any industrial application. Our fittings are manufactured using the highest quality materials and are in full compliance with ASME B16.11 standards, ensuring superior performance and safety in any setting. We offer a wide range of sizes, shapes, and materials to meet all your requirements, including brass, carbon steel, stainless steel, and special alloys. With our top-notch products and experienced team of specialists, you can always count on us to provide the best solution for your needs. Get in touch today to learn more about how ASME B16.11 Fittings can help you get the job done right!

ASME B16.11 Fittings Manufacturer in Mumbai, B16.11 Screwed Fittings, ASME B16 11 Class 3000 Pressure Rating SW Fittings, ASME B16.11 Threaded Pipe Fittings Exporter in India.

ASME B16.11 Standard Specifications

Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Thread	NPT, BSPT, BSPP
Types	Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating	Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Specialized manufacturer of	Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASME B16.11 Fittings Types

ASME B16.11 Socket weld Fittings

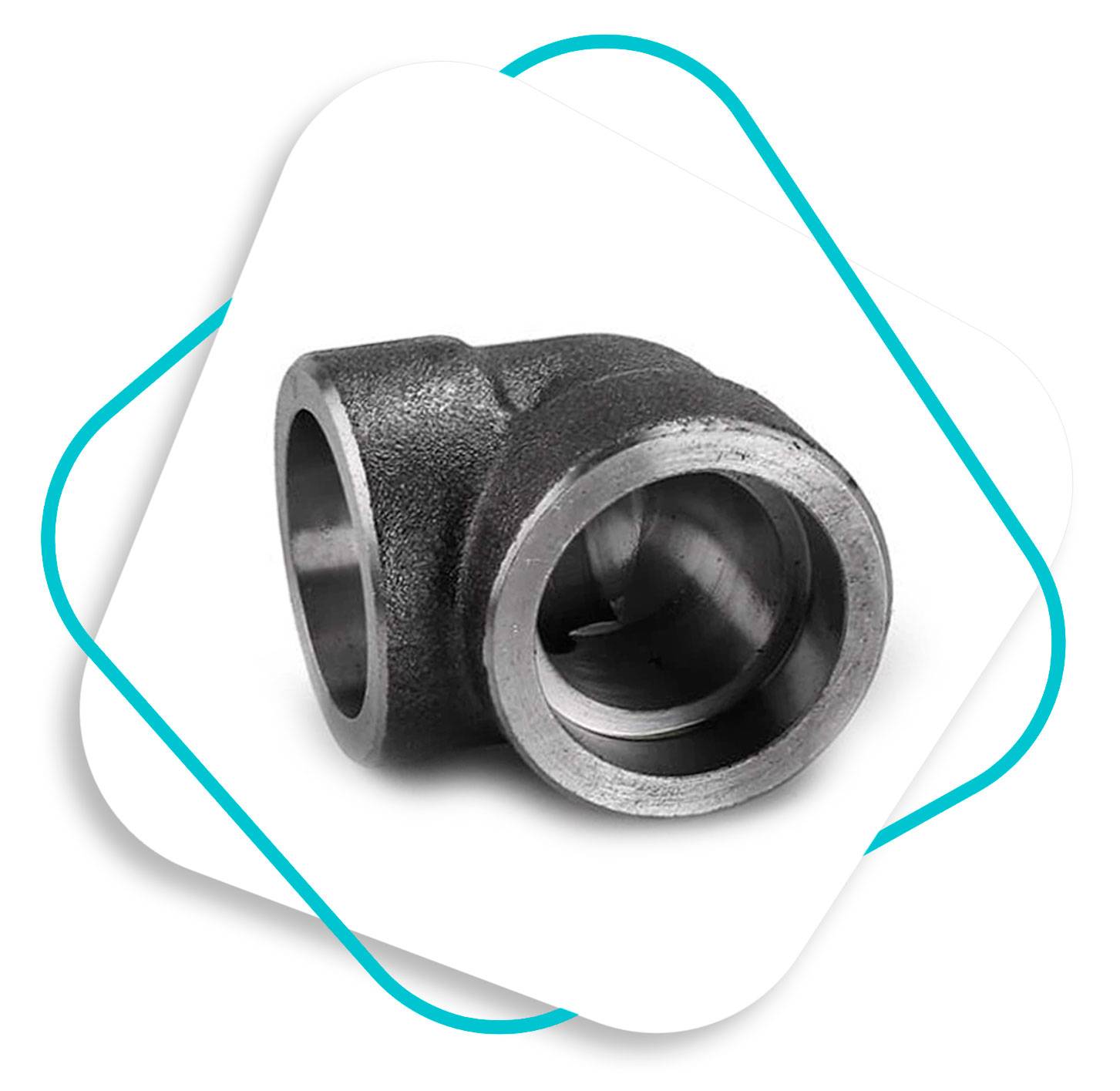

ASME B16.11 90 Deg Socket weld Elbow

ASME B16.11 45 Deg Socket weld Elbow

ASME B16.11 Socket weld Equal Tee

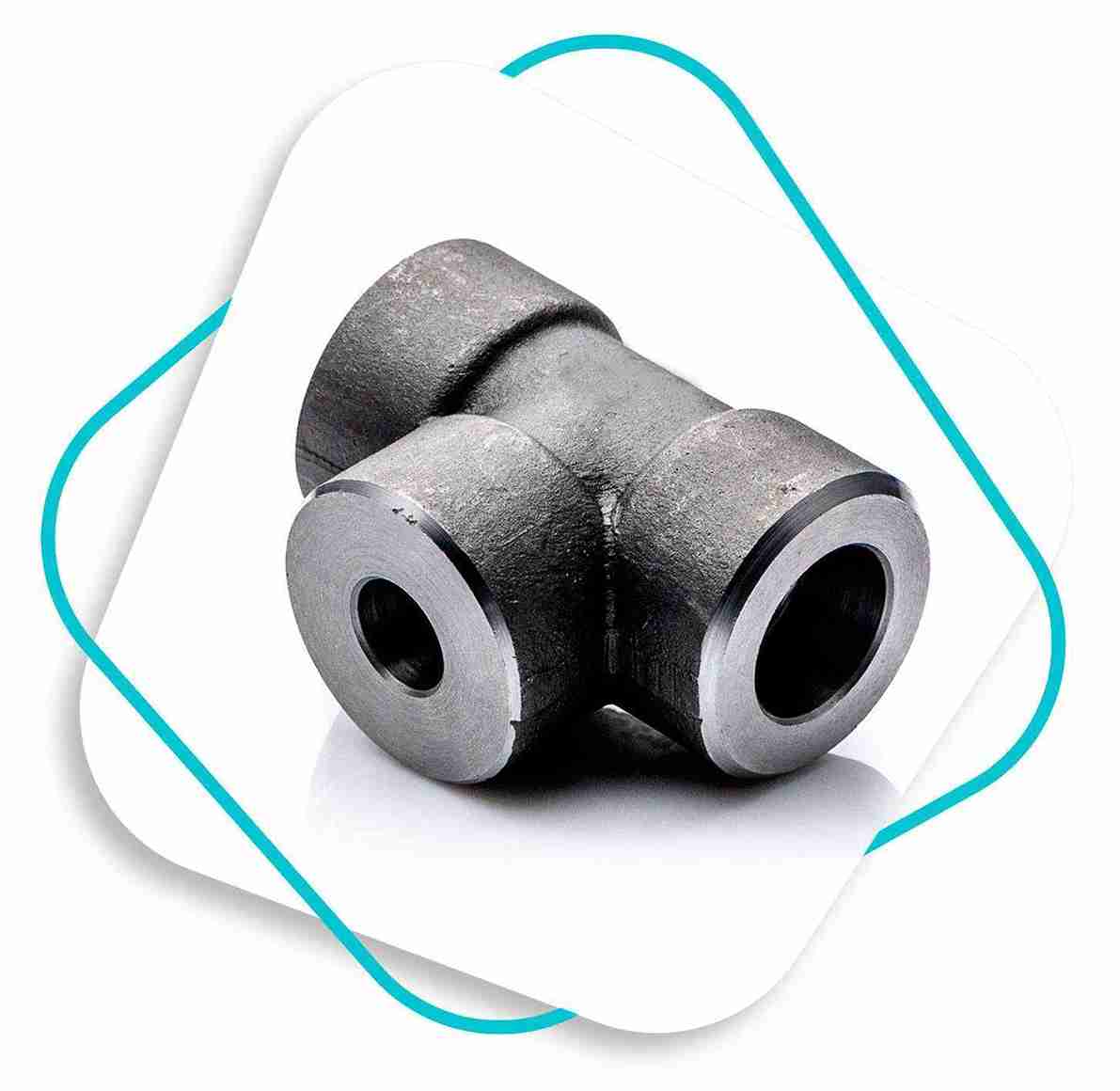

ASME B16.11 Socket weld Unequal Tee

ASME B16.11 Socket weld Equal Cross

ASME B16.11 Socket weld Unequal Cross

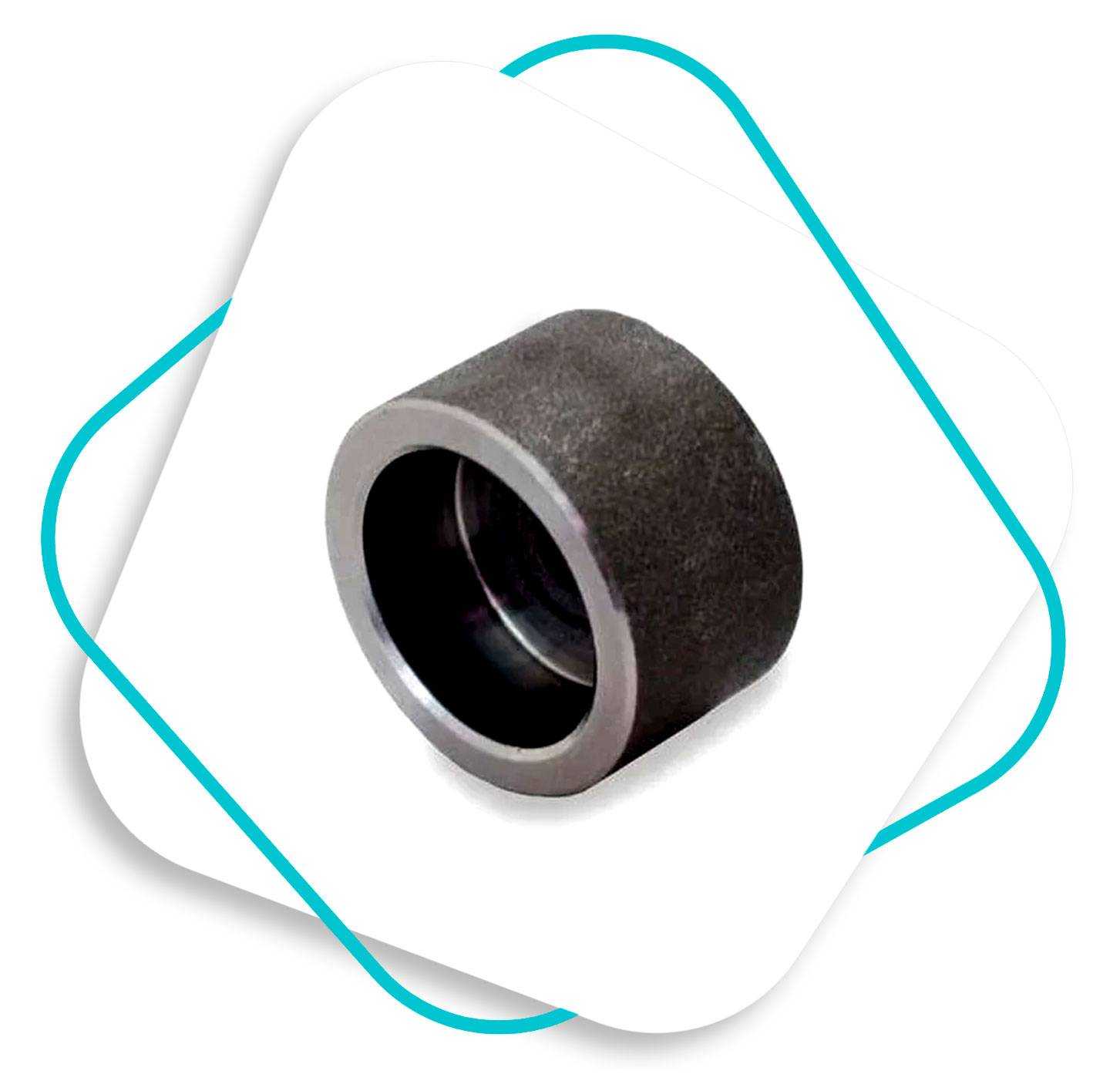

ASME B16.11 Socket weld Cap

ASME B16.11 Socket weld Union

ASME B16.11 Socket weld Full Coupling

ASME B16.11 Socket weld Half Coupling

ASME B16.11 Socket weld Reducing Coupling

CS Socket weld Reducing Coupling

ASME B16.11 Threaded Fittings

ASME B16.11 90 Deg Threaded Elbow

ASME B16.11 45 Deg Threaded Elbow

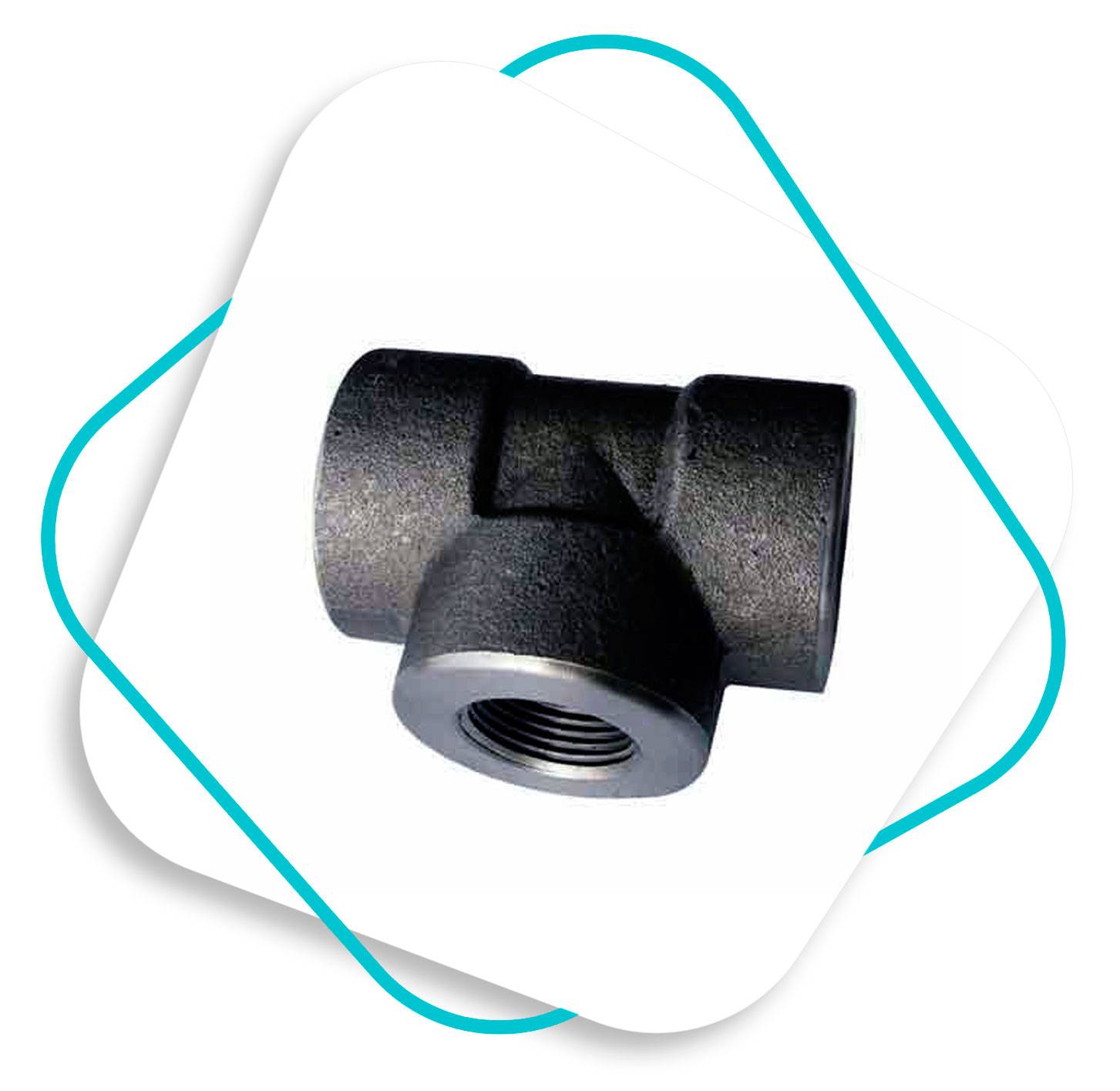

ASME B16.11 Threaded Equal Tee

ASME B16.11 Threaded Unequal Tee

ASME B16.11 Threaded Equal Cross

ASME B16.11 Threaded Unequal Cross

ASME B16 11 Threaded Cap

ASME B16.11 Threaded Union

B16.11 Threaded Full Coupling

ASME B16.11 Threaded Half Coupling

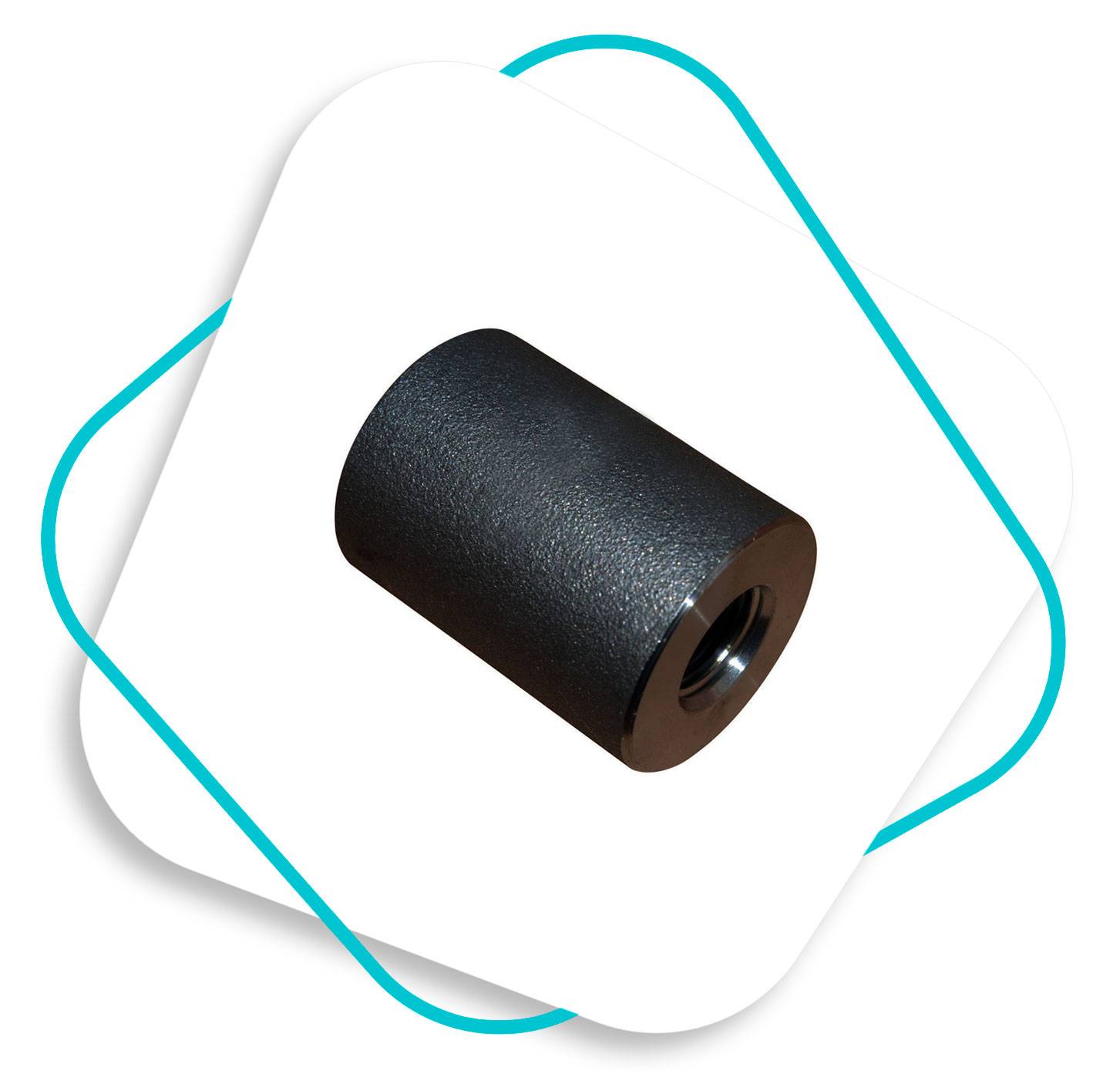

ANSI B16 11 Threaded Reducing Coupling

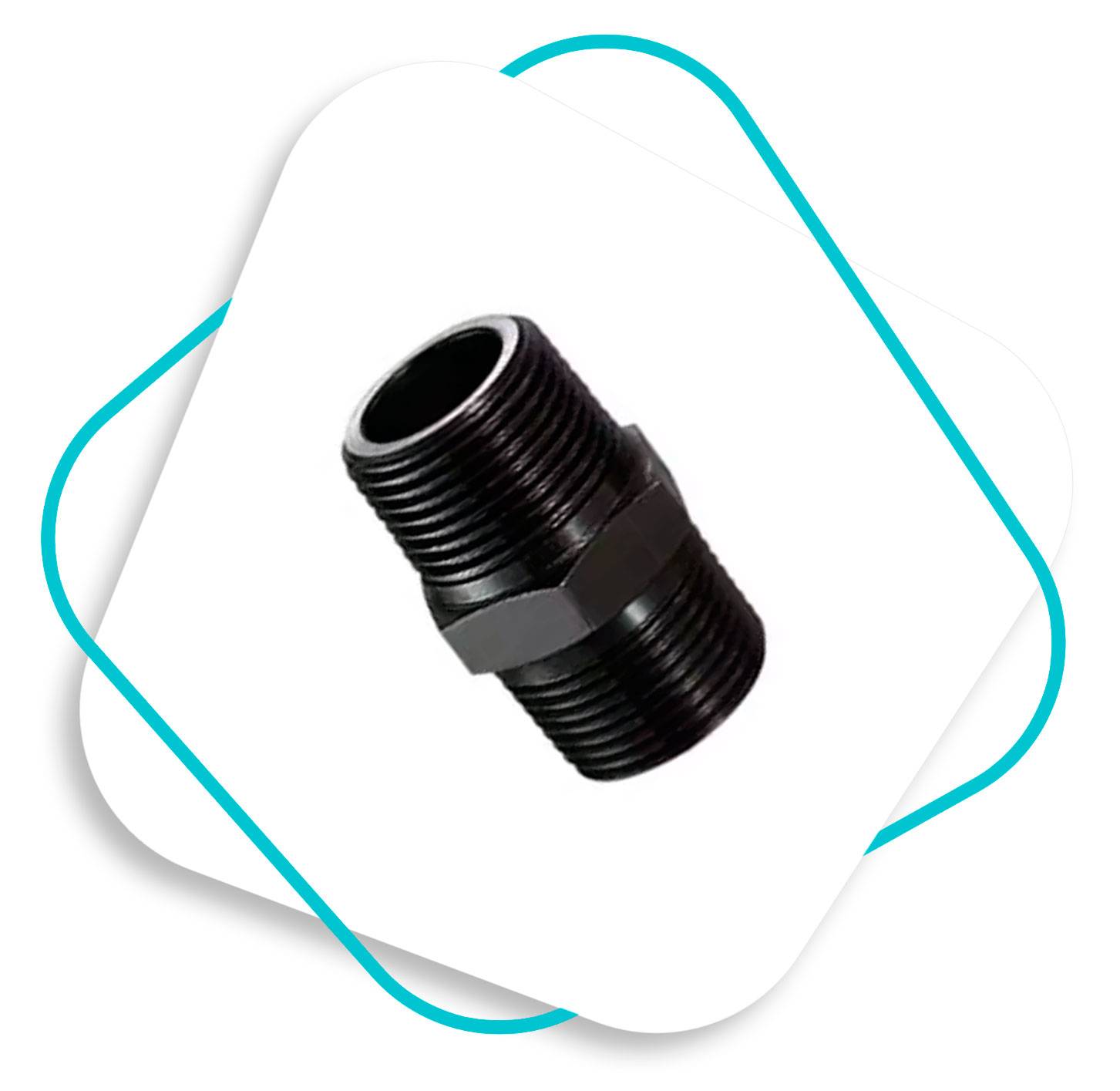

ASME B16.11 Hex Nipple

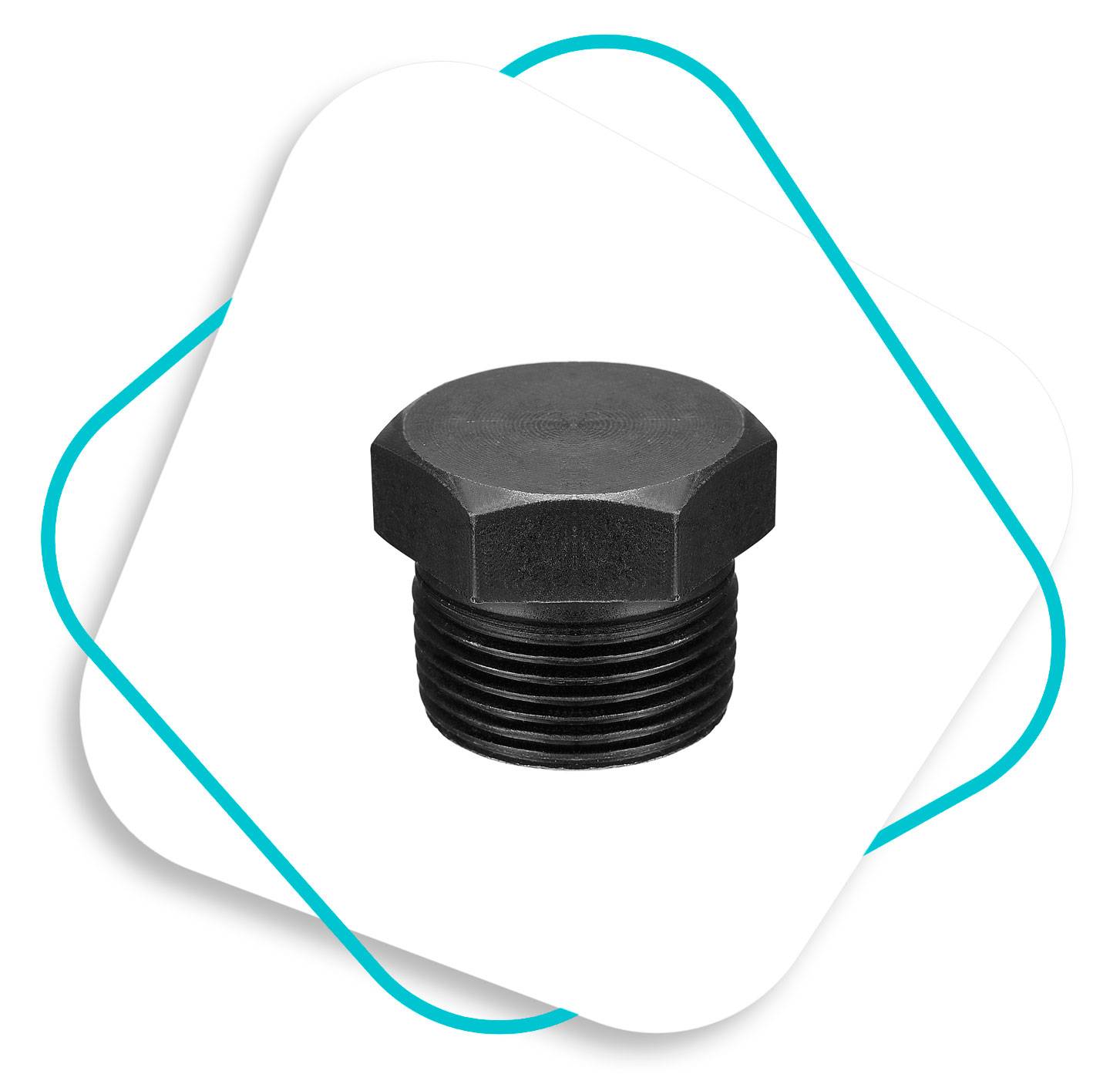

ASME B16 11 Hex Head Plug

ANSI B16.11 Hex Head Bushing

ASME B16 11 Swage Nipple

ASME B16.11 specification for forged steel fittings, socket weld and threaded fittings in India. Check the pressure rating and class 3000 dimension and weight chart in inches.

ASME B16.11 Fittings Dimensions

ASME B16.11 Threaded Fittings Dimensions

ASME B16.11 Threaded Fittings Dimensions
DN	Nom. Pipe Size	Center to End Elbows.Tees.Cross A			Center to End 45° Elbow C			Outside Diameter of Band H			End to End Caps P		End to End Couplings W	Outside Diameter D		End Wall Thickness G Min.		Minumum Wall Thickness G			Length of Thread. Min.(1)
DN	Nom. Pipe Size	2000	3000	6000	2000	3000	6000	2000	3000	6000	3000	6000	3000&6000	3000	6000	3000	6000	2000	3000	6000	B	L2
6	1/8	21	21	25	17	17	19	22	22	25	19	...	32	16	22	4.8	...	3.18	3.18	6.35	6.4	6.7
8	1/4	21	25	28	17	19	22	22	25	33	25	27	35	19	25	4.8	6.4	3.18	3.30	6.60	8.1	10.2
10	3/8	25	28	33	19	22	25	25	33	38	25	27	38	22	32	4.8	6.4	3.18	3.51	6.98	9.1	10.4
15	1/2	28	33	38	22	25	28	33	38	46	32	33	48	28	38	6.4	7.9	3.18	4.09	8.15	10.9	13.6
20	3/4	33	38	44	25	28	33	38	46	56	37	38	51	35	44	6.4	7.9	3.18	4.32	8.53	12.7	13.9
25	1	38	44	51	28	33	35	46	56	62	41	43	60	44	57	9.7	11.2	3.68	4.98	9.93	14.7	17.3
32	1-1/4	44	51	60	33	35	43	56	62	75	44	46	67	57	64	9.7	11.2	3.89	5.28	10.59	17.0	18.0
40	1-1/2	51	60	64	35	43	44	62	75	84	44	48	79	64	76	11.2	12.7	4.01	5.56	11.07	17.8	18.4
50	2	60	64	83	43	44	52	75	86	102	48	51	86	76	92	12.7	15.7	4.27	7.14	12.09	19.0	19.2
65	2-1/2	76	83	95	52	52	64	92	102	121	60	64	92	92	108	15.7	19.0	5.61	7.65	15.29	23.6	28.9
85	3	86	95	106	64	64	79	109	121	146	65	68	108	108	127	19.0	22.4	5.99	8.84	16.64	25.9	30.5
100	4	106	114	114	79	79	79	146	152	152	68	75	121	140	159	22.4	28.4	6.55	11.18	18.67	27.7	33.0

ASME B16.11 Socket Weld Fittings Dimensions
DN	Nom Pipe Size	Socket Bore Dia.(2) B	Bore Diameter of Fittings(2) D		Socket Wall Thickness(1) C				Body Wall Thickness G		Depth of Socket Min. J	Center to Bottom of Socket-A				Laying Lengths		Tolerances±			End Wall Thikcness K Min
			Bore Diameter of Fittings(2) D		Class Designation				Class Designation			90° Elbows Tees,Crosses		45° Elbows		Couplings E	Half Couplings F	A	E	F	End Wall Thikcness K Min
			Class Designation		3000		6000		3000	6000		Class Designation		Class Designation							Class Designation
			3000	6000	Ave.	Min.	Ave.	Min.	Min.	Min.		3000	6000	3000	6000						3000	6000
6	1/8	11.2 10.8	7.6 6.1	7.6 6.1	3.18	3.18	3.96	3.43	2.41	3.15	9.5	11.0	11.0	8.0	8.0	6.5	16.0	1.0	1.5	1.0	4.8	6.4
8	1/4	14.6 14.2	10.0 8.5	10.0 8.5	3.78	3.30	4.60	4.01	3.02	3.68	9.5	11.0	13.5	8.0	8.0	6.5	16.0	1.0	1.5	1.0	4.8	6.4
10	3/8	18 17.6	13.3 11.8	13.3 11.8	4.01	3.50	5.03	4.37	3.20	4.01	9.5	13.5	15.5	8.0	11.0	6.5	17.5	1.5	3.0	1.5	4.8	6.4
15	1/2	22.2 21.8	16.6 15.0	16.6 15.0	4.67	4.09	5.97	5.18	3.73	4.78	9.5	15.5	19.0	11.0	12.5	9.5	22.5	1.5	3.0	1.5	6.4	7.9
20	3/4	27.6 27.2	21.7 20.2	21.7 20.2	4.90	4.27	6.96	6.04	3.91	5.56	12.5	19.0	22.5	13.0	14.0	9.5	24.0	1.5	3.0	1.5	6.4	7.9
25	1	34.3 33.9	27.4 25.9	27.4 25.9	5.69	4.98	7.92	6.93	4.55	6.35	12.5	22.5	27.0	14.0	17.5	12.5	28.5	2.0	4.0	2.0	9.6	11.2
32	1-1/4	43.1 42.7	35.8 34.3	35.8 34.3	6.07	5.28	7.92	6.93	4.85	6.35	12.5	27.0	32.0	17.5	20.5	12.5	30.0	2.0	4.0	2.0	9.6	11.2
40	1-1/2	49.2 48.8	41.6 40.1	41.6 40.1	6.35	5.54	8.92	7.80	5.08	7.14	12.5	32.0	38.0	20.5	25.5	12.5	32.0	2.0	4.0	2.0	11.2	12.7
50	2	61.7 61.2	53.3 51.7	53.3 51.7	6.93	6.04	10.92	9.50	5.54	8.74	16.0	38.0	41.0	25.5	28.5	19.0	41.0	2.0	4.0	2.0	12.7	15.7
65	2-1/2	74.4 73.9	64.2 61.2	64.2 61.2	8.76	7.67			7.01		16.0	41.0		28.5		19.0	43.0	2.5	5.0	2.5	15.7	19.0
80	3	90.3 89.8	79.4 76.4	79.4 76.4	9.52	8.30			7.62		16.0	57.0		32.0		19.0	44.5	2.5	5.0	2.5	19.0	22.4
100	4	115.7 115.2	103.8 100.7	103.8 100.7	10.69	9.35			8.56		16.0	66.5		41.0		19.0	48.0	2.5	5.0	2.5	22.4	28.4

Dimension Tolerances of ASME B16 11 Fittings

ASME B16.11 Forged Fittings Dimension
90 Deg Elbow	45° Elbow	Tee
Cross	Coupling	Cap
Plug	Boss	Bushing
Union	Street Elbow	Nipple

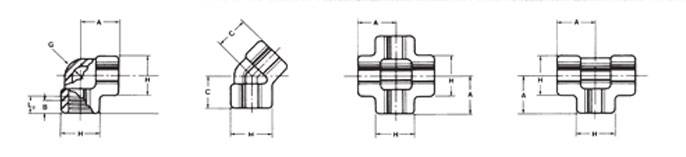

ASME B16.11 Class 3000 Fittings Dimensions

Nominal Pipe Size	Centre to End Elbows, Tee, Crosses A			Centre to End 45º Elbows C			Outside Diameter of Band H			Minimum Wall Thickness G			Lengths of Thread Min
Nominal Pipe Size	2000#	3000#	6000#	2000#	3000#	6000#	2000#	3000#	6000#	2000#	3000#	6000#	B	L₂
1/8	13/16	13/16	31/32	11/16	11/16	3/4	7/8	7/8	1	.125	.125	.250	.25	.2639
1/4	13/16	31/32	1-1/8	11/16	3/4	7/8	7/8	1	1-5/16	.125	.130	.260	.32	.4018
3/8	3/32	1-1/8	1-5/16	3/4	7/8	1	1	1-5/16	1-1/2	.125	.138	.275	.36	.4078
1/2	1-1/8	1-5/16	1-1/2	7/8	1	1-1/8	1-5/16	1-1/2	1-13/16	.125	.161	.321	.43	.5337
3/4	1-5/16	1-1/2	1-3/4	1	1-1/8	1-5/16	1-1/2	1-13/16	2-3/16	.123	.168	.336	.50	.5457
1	1-1/2	1-3/4	2	1-1/8	1-5/16	1-3/8	1-13/16	2-3/16	2-7/16	.145	.196	.391	.58	.6828
1-1/4	1-3/4	2	2-3/8	1-15/16	1-3/8	1-11/16	2-3/16	2-7/16	2-31/32	.153	.208	.417	.67	.7068
1-1/2	2	2-3/8	2-1/2	1-3/8	1-11/16	1-23/32	2-7/16	2-31/32	3-5/16	.158	.218	.436	.70	.7235
2	2-3/8	2-1/2	3-3/4	1-11/16	1-23/32	2-1/16	2-31/32	3-5/16	4	.168	.238	.476	.75	.7565
2-1/2	3	3-1/4	3-3/4	2-1/16	2-1/16	2-1/2	3-5/8	4	4	.221	.301	.602	.932	1.138
3	3-3/8	3-3/4	4-3/16	2-1/2	2-1/2	3-1/8	4-5/16	4-3/4	4-3/4	.236	.327	.655	1.016	1.200
4	3-3/16	4-1/2	4-1/2	3-1/8	3-1/8	3-1/8	5-3/4	5	6	.258	.368	.735	1.094	1.300

Get customized ASME B16.11 Forged Steel Fittings in carbon steel forging materials, including Socket-welding and Threaded options, manufactured to meet ASME standards

Specialized in Following ASME B16.11 Forged Fittings

B16.11 Forged Elbow for Piping Connection
ANSI B16 11 Socket Weld Union
ASME B16.11 3000 LB Socket Weld Cap
ASME B16 11 Screwed Fittings Suppliers
ASME B16.11 Industrial Fittings
ANSI B16.11 Class 6000 Fittings
ASME B16.11 Threaded Plug
ASME B16.11 Street Elbow
ANSI B16.11 Forged Fitting
ASME B16.11 Square Head Plug
ASME B16.11 Class 2000 Fittings
Stockists of ASME B16.11 BSPT Elbow
ASME B16.11 Steel Forged Fittings
B16 11 Forged High Pressure Pipe Fittings

ASME B16.11 High Pressure Forged Fittings
ANSI B16 11 Threaded Square Plug
Manufacturers of ASME B16.11 NPT Fittings
ASME B16.11 BSP Threaded Forged Fittings
ANSI B16.11 Forged Equal Cross
ASME B16 11 Threaded Adapter Stockholder
ASME B16.11 Socket weld Boss Wholesaler
ASME B16.11 Reducer Inserts Distributor
ASME B16.11 45 Degree NPT Elbow
ASME B16 11 BS3799 Swage Nipples Dealer
Class 3000, SW, 2 Inch ASME B16.11 Fittings
Class 6000 Socket Weld Fittings ASME B16.11
Exporter of ASME B16.11 Forged Cap
Class 3000 Fittings ASME B16 11

ASME B16 11 Fittings Price List

ANSI / ASME B16.11 Forged Fittings Price	ANSI B16 11 Fittings Price in INR	ASME B16.11 Fittings Price in USD	Ansi B16 11 Fittings Price in UAE Dirham
ASME B16.11 Carbon Steel 2000#/3000# Thread/Socket Weld Forged Pipe Fittings	Rs. 2,6737	35.86 USD	UAE Dirham 128.71
Forged Steel 90 Degree Elbow, 1.1/2,3000LBS ANSI/ASME B16.11	Rs. 3,320	40.10 USD	UAE Dirham 160.05
ANSI B16 11 1/2 Inch Steel Class 2000 NPT Thread Screw Union	Rs. 3,306	49.12 USD	UAE Dirham 172.06

ASME B16.11 Fittings Weight Chart

ASME B16.11 Socket Weld Fittings Weight Chart

Size Product		2”	1/4”	3/8”	3/4”	1”	1/2”	1/8”	3”	1-1/4”	4”	1-1/2”	2-1/2”
Cap	3000	0.96	0.04	0.07	0.16	0.25	0.10	0.03	2.74	0.45	4.24	0.59	1.43
Cap	6000	1.41	0.08	0.10	0.23	0.36	0.16	0.05		0.64		0.94
90 Elbow	3000	1.68	0.08	0.12	0.33	0.53	0.22	0.09	5.38	0.84	10.95	1.08	3.20
90 Elbow	6000	3.28	0.15	0.29	0.73	1.17	0.40	0.10		1.48		2.79
Tee	3000	2.04	0.09	0.15	0.42	0.65	0.29	0.13	5.90	1.04	13.92	1.35	3.98
Tee	6000	3.95	0.20	0.43	0.94	1.49	0.56	0.14		1.93		3.37
45 Elbow	3000	1.35	0.07	0.11	0.28	0.42	0.20	0.08	5.10	0.69	9.41	0.80	2.53
45 Elbow	6000	2.09	0.14	0.26	0.57	0.92	0.36	0.09		1.11		2.01
Full Coupling	3000	0.86	0.05	0.07	0.17	0.29	0.13	0.04	1.78	0.45	2.85	0.59	1.40
Full Coupling	6000	1.62	0.07	0.114	0.27	0.44	0.204	0.05		0.60		1.11
Cross	3000	2.25	0.13	0.20	0.47	0.73	0.35	0.16	6.69	1.12	14.58	1.58	4.37
Cross	6000	4.42	0.26	0.45	1.07	1.75	0.67	0.17		2.26		3.96
Half Coupling	3000	1.09	0.05	0.07	0.21	0.30	0.13	0.04	2.10	0.34	3.71	0.66	1.63
Half Coupling	6000	1.92	0.09	0.12	0.31	0.51	0.21	0.06		0.75		1.25
Red Coupling	3000	0.97	0.05	0.07	0.19	0.27	0.13	0.04	1.88	0.49	3.31	0.59	1.42
Red Coupling	6000	2.12			0.33	0.65	0.24			0.75		1.20
Union	3000	2.16	0.28	0.25	0.49	0.81	0.35	0.28	5.15	1.10	11.59	1.61	3.50

Threaded Fittings Weight in KG

Size Product		1/4”	1/2”	2”	3/4”	1/8”	4”	1”	1-1/2”	3/8”	1-1/4”	2-1/2”	3”
45 Elbow	2000	0.08	0.20	1.41	0.27	0.09	8.96	0.41	0.82	0.10	0.68	3.46	5.44
	3000	0.12	0.34	2.23	0.56	0.09	8.96	0.94	2.05	0.24	1.03	3.71	5.97
	6000	0.27	0.63	4.37	1.07	0.11	11.36	1.27	2.54	0.39	2.24	7.01	14.16
90 Elbow	2000	0.08	0.25	1.70	0.35	0.10	10.21	0.53	1.06	0.13	0.82	3.14	4.81
	3000	0.14	0.43	2.92	0.69	0.10	14.85	1.14	2.63	0.29	1.42	5.99	8.88
	6000	0.33	0.80	7.31	1.31	0.17	15.76	1.61	3.79	0.45	2.93	9.88	17.73
Tee	2000	0.12	0.31	2.16	0.43	0.13	14.74	0.69	1.39	0.17	1.07	4.11	6.12
	3000	0.20	0.56	3.53	0.92	0.13	19.13	1.49	3.27	0.38	1.76	6.99	10.19
	6000	0.45	0.98	7.88	1.65	0.20	18.53	2.17	4.71	0.63	3.74	13.11	21.70
Cross	2000	0.14	0.39	2.65	0.54	0.17	16.35	0.83	1.75	0.21	1.26	5.26	7.58
Cross	3000	0.26	0.72	4.27	1.06	0.17	21.93	1.79	3.93	0.44	2.13	8.51	12.45
Half Coupling	3000	0.02	0.06	0.70	0.10	0.02	3.11	0.23	0.54	0.03	0.34	1.13	1.68
Half Coupling	6000	0.06	0.16	1.70	0.24	0.07	5.02	0.45	0.96	0.09	0.55	2.10	3.05
Round Head Plug		0.45	0.12	1.47	0.20	0.02	6.24	0.34	0.79	0.07	0.55	2.34	3.26
Red Coupling	3000	0.05	0.13	1.37	0.19	0.05	5.44	0.39	0.99	0.06	0.68	2.07	3.08
Red Coupling	6000	0.06	0.31	3.40	0.41	0.08	10.04	0.85	1.81	0.18	1.05	4.20	6.10
Full Coupling	3000	0.04	0.13	1.40	0.19	0.05	6.28	0.45	1.07	0.06	0.81	2.29	3.38
Full Coupling	6000	0.13	0.34	2.87	0.50	0.08	10.04	0.87	1.94	0.20	1.09	4.20	6.10
Cap	3000	0.04	0.11	1.09	0.18	0.02	4.84	0.37	0.72	0.05	0.62	2.22	3.50
Cap	6000	0.06	0.26	2.23	0.40	0.06		0.71	0.77	0.09	0.59
Street Elbow	3000	0.11	0.31	2.91	0.53	0.13		1.02	2.01	0.22	1.13
Union	3000	0.28	0.34	2.43	0.48	0.28	12.00	0.77	1.63	0.24	1.03	3.63	5.27
Square Head Plug		0.01	0.05	0.63	0.09	0.01	3.83	0.16	0.38	0.03	0.27	0.96	1.53
Hex Nipple	3000	0.04	0.09	1.03	0.15	0.03	4.00	0.47	0.62	0.05	0.45	1.51	2.22
Hex Head Plug		0.03	0.07	1.03	0.14	0.01	5.20	0.22	0.59	0.05	0.44	1.80	2.60
Hex Head Bushing		0.01	0.03	0.45	0.05		3.20	0.09	0.34	0.01	0.25	0.60	1.16

ANSI B16 11 Material

Carbon Steel	ASTM A105 ASME SA105 ASTM A105N ASME SA105N ASTM A350 LF2 ASME SA350 High Yield CS ASTM A694 Low Carbon Mild Steel

ASME B16 11 Standard

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross	2000LB	Threaded	1/4''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
BS3799	Hex Nipple	3000LB/6000LB	Threaded	1/8''~2''x1/2''
	Bosses	3000LB	Threaded	1/8''~2''
	Bosses	6000LB	Threaded	1/8''~4''
	Pipe Nipple	40/STD/80/XS /160/XXS	See Below Note1	1/8''~6''
Thread	NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

ASME B16.11 Pressure Rating

Description	Class Designation
Description	2000#	3000#	6000#
Elbows 45 deg and 90 deg Tee, Crosse, Coupling Half-Coupling, NPT Cap	1/2 - 4	1/2 - 2	1/2 - 2
	1/2 - 4	1/2 - 2	1/2 - 2
	1/2 - 4	1/2 - 2	1/2 - 2
Pipe Wall	SCH 80 / XS	SCH 160	XXS

ASME B16.11 Class 3000 Fittings Pressure Rating in psi

Temperature Range (°F)	Maximum Allowable Pressure (psi)
-20 to 100	3000
200	2610
300	2320
400	2060
500	1820
600	1620
650	1550
700	1480
750	1410
800	1350
850	1280
900	1220

ASME B16.11 Class 6000 Fittings Pressure Rating

Temperature Range (°F)	Maximum Allowable Pressure (psi)
-20 to 100	6000
200	5220
300	4640
400	4130
500	3650
600	3260
650	3120
700	2970
750	2830
800	2700
850	2560
900	2440

GENERAL NOTES:
these ratings apply to fittings made from materials such as carbon steel, alloy steel, and stainless steel. Other materials may have different pressure-temperature ratings.

ASME B16 11 Tolerance Chart

Tolerance Chart Of ANSI B16.11 Socket-welding Fittings		Tolerance Chart Of ASME B16.11 Threaded Fittings
Dimension	Tolerance	Dimension	Tolerance
Bore diameter	±0.03 inches	Bore diameter	±0.03 inches
Wall thickness	+20%, -12.5%	Wall thickness	+20%, -12.5%
Outside diameter of socket	±0.02 inches	Length of thread engagement	±1.5 threads
Depth of socket	±0.02 inches	Outside diameter	Male thread ±0.02 inches
Depth of socket	±0.02 inches	Outside diameter	Female thread ±0.03 inches
Fillet radius of socket	≤1.5 inch: 1/16 inch max; >1.5 inch: 1/8 inch max	Pitch diameter	Male / female thread ±0.03 inches
		Root diameter	Male thread -0.06 inches
		Root diameter	female thread +0.02 inches

ASME/ANSI B16.11 Fittings Industrial Applications

Oil & Gas Industry
Power Plants
Refinery Industry
Petrochemical
Marine Industry
Fire Fighting
HVAC & MEP

Refer to the ANSI B16.11 Fittings Specification and Price List. Check the Weight and Tolerance Chart for Forged Fittings with Socket-welding and Threaded Forging. Download the ASME B16.11 PDF.

Shop No. 1/2, Vijay Apartment, 12th Khetwadi Back Road, Near Balwas Hotel, Mumbai – 400004
Email : [email protected]
Phone : +91 9892523354
