Carbon Steel Socket weld Fittings Specifications
Socket weld fittings adhere to ANSI/ASME B16.11 standards and are available in nominal sizes up to 4 inches. They come in pressure ratings of 3000, 6000, and 9000#.
| Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
| Socket weld fittings standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB |
| Types | Socketweld Fittings |
| Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

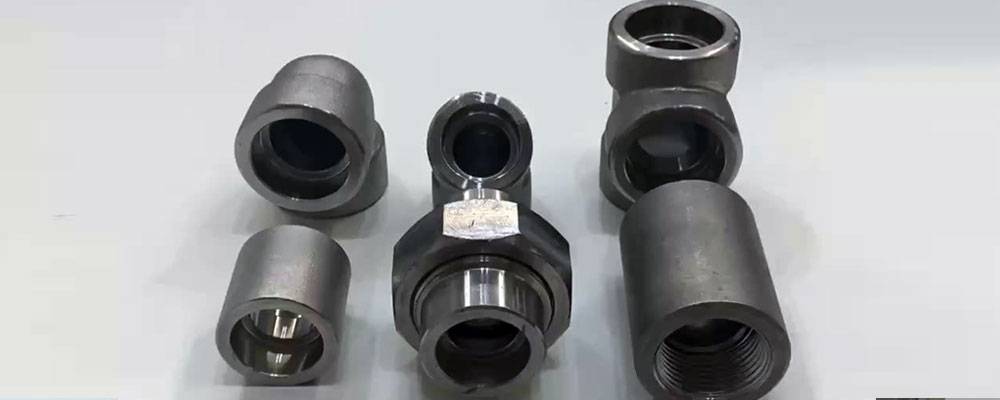

Carbon Steel Socket weld Fittings Types
Check Price and Dimensions of Black Forged Steel Socket Weld Fittings.
Carbon Steel Socket weld Fittings Price List
| Product | Price |
| Custom Size 3000 LB, 1 1/2 Inch CS Socket Weld Elbow Price | US $ 0.4-1.0 / Piece |
| ASME B16.11 Carbon Steel Black Socket weld Fitting Price | US $ 1.00-3100.0 / Piece |
| Black Fittings Socket weld Coupling Price List | US $ 2.0-62.0 / Piece |
| NPS 1/2 to 2 Cast Iron Fittings SW Union Price | US $ 2.2-50.0 / Piece |
| ANSI B16.11 CS High pressure Socket weld Fittings Price | US $ 1-1000 / Piece |
| Carbon Steel Socket Weld Reducer Inserts | US $ 1.3 / Piece |
| ASTM A105 Socket Welding Pipe Fittings Price | US $ 00.2-56 / Piece |
| 2 X 1-1/2 Inch, 3000 LB, Carbon Steel Reducing Tee Price List | US $ 4.0-62.0 / Piece |
| CS Galvanized Steel Socket Weld Equal Tee Price List | US $ 5.79 / Piece |

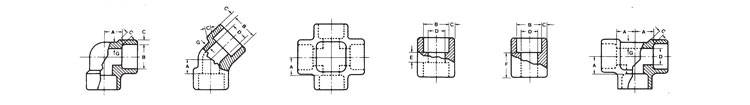

Carbon Steel Socket weld Fittings Dimensions - Class 3000 / 6000
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||

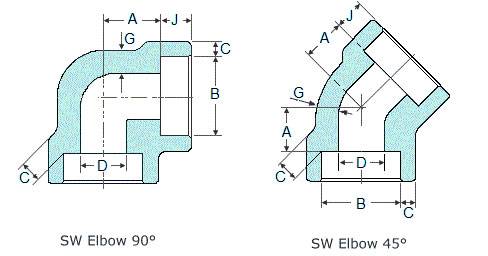

Carbon Steel Socket Weld Elbow Dimensions in mm
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Body Wall Thk (G) | Socket Depth (J) | Center to bottom of socket (A) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Min. | 90° Elbow |
45° Elbow |
90° Elbow |
45° Elbow |
| 1/8 | 6 | 10.8 | 11.2 | 6.1 | 7.6 | 3.18 | 3.18 | 2.41 | 9.5 | 11.0 | 8.0 | 0.113 | 0.100 |
| 1/4 | 8 | 14.2 | 14.6 | 8.5 | 10.0 | 3.78 | 3.30 | 3.02 | 9.5 | 11.0 | 8.0 | 0.095 | 0.086 |
| 3/8 | 10 | 17.6 | 18.0 | 11.8 | 13.3 | 4.01 | 3.50 | 3.20 | 9.5 | 13.5 | 8.0 | 0.118 | 0.100 |
| 1/2 | 15 | 21.8 | 22.2 | 15.0 | 16.6 | 4.67 | 4.09 | 3.73 | 9.5 | 15.5 | 11.0 | 0.204 | 0.191 |
| 3/4 | 20 | 27.2 | 27.6 | 20.2 | 21.7 | 4.90 | 4.27 | 3.91 | 12.5 | 19.0 | 13.0 | 0.340 | 0.318 |
| 1 | 25 | 33.9 | 34.3 | 25.9 | 27.4 | 5.69 | 4.98 | 4.55 | 12.5 | 22.5 | 14.0 | 0.476 | 0.431 |
| 1-1/4 | 32 | 42.7 | 43.1 | 34.3 | 35.8 | 6.07 | 5.28 | 4.85 | 12.5 | 27.0 | 17.5 | 0.689 | 0.630 |
| 1-1/2 | 40 | 48.8 | 49.2 | 40.1 | 41.6 | 6.35 | 5.54 | 5.08 | 12.5 | 32.0 | 20.5 | 0.943 | 0.762 |
| 2 | 50 | 61.2 | 61.7 | 51.7 | 53.3 | 6.93 | 6.04 | 5.54 | 16.0 | 38.0 | 25.5 | 1.529 | 1.343 |
| 2-1/2 | 65 | 73.9 | 74.4 | 61.2 | 64.2 | 8.76 | 7.67 | 7.01 | 16.0 | 41.0 | 28.5 | 3.025 | 3.520 |
| 3 | 80 | 89.8 | 90.3 | 76.4 | 79.4 | 9.52 | 8.30 | 7.62 | 16.0 | 57.0 | 32.0 | 5.026 | 3.878 |
| 4 | 100 | 115.2 | 115.7 | 100.7 | 103.8 | 10.69 | 9.35 | 8.56 | 19.0 | 66.5 | 41.0 | 10.247 | 10.913 |
