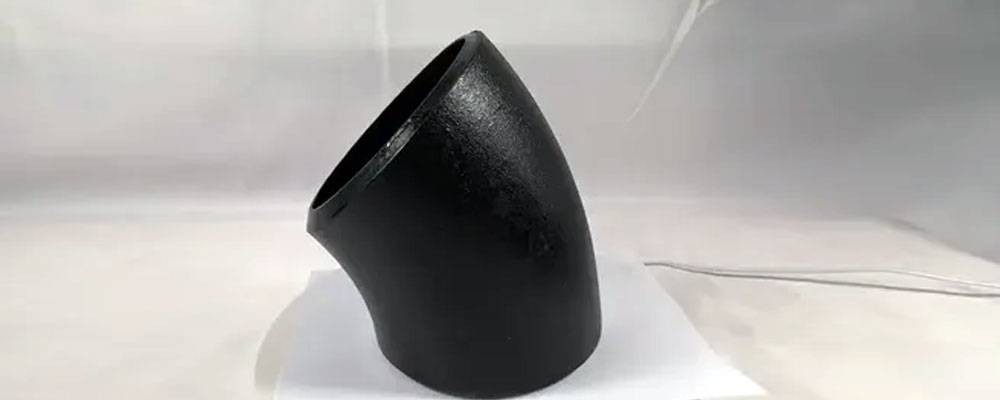

Carbon Steel 45 Deg Short Radius Elbow
ASTM A234 CS 45 Deg. SR Butt weld Elbow, Carbon Steel 45 Degree SR Elbows, CS 45 Deg. Short Radius Elbow Suppliers, Carbon Steel 45 Deg. Short Radius Pipe Elbows, Carbon Steel 45 Degree Short Radius Elbow Manufacturers in India.
Rajdhan Metal is a well-known supplier and manufacturer of Carbon Steel 45 Degree Short Radius Elbow Pipe Fittings that are ideal for corrosive and essential industrial applications. It is radiographic and is doubly welded using methods that use filler metal in all passes. Carbon Steel 45-Degree Short Radius Elbow Pipe Fittings are made under the strict supervision of our skilled specialists utilising superior grade stainless steel and cutting-edge technology.
- What is Carbon Steel 45 Deg. Short Radius Elbow?
- CS 45 Degree Short Radius Pipe Elbow Specification
- Carbon Steel 45° Short Radius Pipe Elbow Types
- Dimensions Of Carbon Steel 45 Degree Short Radius Elbow – ANSI 16.9
- Dimensional Tolerances of CS 45 Degree Short Radius Elbow – ASME B16.9
- Angularity Tolerances of Carbon Steel 45 Degree Short Radius Elbow
- Specialized in Following CS 45 Deg Short Radius Elbows
- Carbon Steel 45 Deg Short Radius Pipe Elbow Price List
- CS 45° Short Radius Elbow Industrial Applications
- CS 45 Deg. Short Radius Elbow Manufacturing Process
CS SR Butt Weld Pipe Elbow 45°, ASTM A234 WPB 45 Degree SR BW Elbow, ASTM A420 LTCS 45° Short Radius Elbow Manufacturer in Mumbai, CS 45 Degree Short Radius Seamless Elbow, CS 45 Deg. Short Radius Pipe Elbow Suppliers In Mumbai.
Carbon Steel 45-Degree Short Radius Elbow Pipe Fittings are constructed from industry-compliant steel grades, and we provide the quality tested product in a variety of diameters thanks to our highly advanced production setup. The CS 45-Degree Short Radius Elbow Pipe Fittings do not require any special equipment or abilities to use, and they perform well at high pressures and with poisonous gases.
Our personnel continue to connect with clients in order to learn about their Carbon Steel 45 Degree Short Radius Elbow Pipe Fittings needs and requirements. With extensive industry expertise, we provide excellent quality 45-Degree Short Radius Elbow that is produced using high grade raw materials and cutting-edge techniques. We offer a comprehensive range of 45-Degree Short Radius Elbow Pipe Fittings with features such as compact size, fine quality, smooth finish, and more.

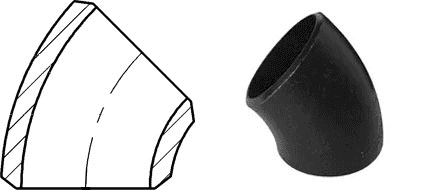

What is Carbon Steel 45 Degree Short Radius Elbow?
The ends can be machined for butt welding (SW), socket welding (SW), and other applications. Most elbows are available in either short radius (SR) or long radius (LR) versions. When the sizes of the two ends change, the fitting is referred to as a reducing elbow or reducer elbow.
The 45 degree Short Radius Elbow is made from high-quality raw materials. CS 45 degree Short Radius Elbows are used to join pipes of varying sizes and have several uses in the chemical, construction, paper, cement, and shipbuilding industries.
Carbon Steel 45° Short Radius Buttweld Elbow, Manufacturer of Carbon Steel 45° SR Butt weld Pipe Elbow in Mumbai, India, CS 45 Deg. Short Radius SMLS Elbow, ASTM A860 High Yield Carbon Steel Elbow, CS ASME B16.9 Short Radius 45° Elbow Exporter in India.
Carbon Steel 45° Short Radius Elbow Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Seamless 45° Short Radius Elbow Size | 1/2"~24" |
| ERW / Welded / Fabricated 45° Short Radius Elbow Size | 1/2" (15 NB) to 48" (1200NB) |
| DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | EN10253-1, EN10253-2 |
| 45 Deg Elbow SR Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| 45 Deg Elbow Short Radius Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Carbon Steel 45 Degree Elbow Fitting Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Form | 45° Short Radius Elbow |
| Material | A234 – WPB A420 – WPL6 / WPL3 A860-WPHY 52-60/42-46/65-70 |
| Application | Electric Power, Water Disposal, Chemical Engineering, Nuclear Energy, Ship Building, Garbage Disposal, Petroleum Oil, Natural Gas |
Carbon Steel 45 Degree Pipe Elbow Types
Check Carbon Steel 45 Degree Short Radius Pipe Elbow Price List, Sizes and Dimensions.
Dimensions Of Carbon Steel 45 Degree Short Radius Elbow – ANSI 16.9
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| STANDARD WEIGHT | ||||||
| 1/2 | 40 | 5/8 | 0.840 | 0.622 | 0.109 | 0.1 |
| 3/4 | 40 | 7/16 | 1.050 | 0.824 | 0.113 | 0.1 |
| 1 | 40 | 7/8 | 1.315 | 1.049 | 0.133 | 0.2 |
| 1 1/4 | 40 | 1 | 1.660 | 1.380 | 0.140 | 0.4 |
| 1 1/2 | 40 | 1 1/8 | 1.900 | 1.610 | 0.145 | 0.5 |
| 2 | 40 | 1 3/8 | 2.375 | 2.067 | 0.154 | 0.9 |
| 2 1/2 | 40 | 1 3/4 | 2.875 | 2.469 | 0.203 | 1.5 |
| 3 | 40 | 2 | 3.500 | 3.068 | 0.216 | 2.5 |
| 3 1/2 | 40 | 2 1/4 | 4.000 | 3.548 | 0.226 | 3.5 |
| 4 | 40 | 2 1/2 | 4.500 | 4.026 | 0.237 | 4.8 |
| 5 | 40 | 3 1/8 | 5.563 | 5.047 | 0.258 | 7.8 |
| 6 | 40 | 3 3/4 | 6.625 | 6.065 | 0.280 | 12 |
| 8 | 40 | 5 | 8.625 | 7.981 | 0.322 | 23 |
| 10 | 40 | 6 1/4 | 10.750 | 10.020 | 0.365 | 42 |
| 12 | – | 7 1/2 | 12.750 | 12.000 | 0.375 | 61 |
| 14 | 30 | 8 3/4 | 14.000 | 13.250 | 0.375 | 79 |
| 16 | 30 | 10 | 16.000 | 15.250 | 0.375 | 103 |
| 18 | – | 11 1/4 | 18.000 | 17.250 | 0.375 | 132 |
| 20 | 20 | 12 1/2 | 20.000 | 19.250 | 0.375 | 160 |
| 22 | 20 | 13 1/2 | 22.000 | 21.250 | 0.375 | 195 |
| 24 | 20 | 15 | 24.000 | 23.250 | 0.375 | 238 |
| EXTRA STRONG | ||||||
| Nom. Pipe Size |
Pipe Sched. or No. |
Center- to-end Dimen. |
Outside Dia. |
Inside Dia. |
Wall Thick. |
Approx. Weight (lb.) |
| F | OD | ID | T | |||
| 1/2 | 80 | 5/8 | 0.840 | 0.546 | 0.147 | 0.2 |
| 3/4 | 80 | 7/16 | 1.050 | 0.742 | 0.154 | 0.3 |
| 1 | 80 | 7/8 | 1.315 | 0.957 | 0.179 | 0.4 |
| 1 1/4 | 80 | 1 | 1.660 | 1.278 | 0.191 | 0.5 |
| 1 1/2 | 80 | 1 1/8 | 1.900 | 1.500 | 0.200 | 0.6 |
| 2 | 80 | 1 3/8 | 2.375 | 1.939 | 0.218 | 1.1 |
| 2 1/2 | 80 | 1 3/4 | 2.875 | 2.323 | 0.276 | 2.1 |
| 3 | 80 | 2 | 3.500 | 2.900 | 0.300 | 3.5 |
| 3 1/2 | 80 | 2 1/4 | 4.000 | 3.364 | 0.318 | 4.8 |
| 4 | 80 | 2 1/2 | 4.500 | 3.826 | 0.337 | 6.5 |
| 5 | 80 | 3 1/8 | 5.563 | 4.813 | 0.375 | 11 |
| 6 | 80 | 3 3/4 | 6.625 | 5.761 | 0.432 | 18 |
| 8 | 80 | 5 | 8.625 | 7.625 | 0.500 | 35 |
| 10 | 60 | 6 1/4 | 10.750 | 9.750 | 0.500 | 56 |
| 12 | – | 7 1/2 | 12.750 | 11.750 | 0.500 | 80 |
| 14 | – | 8 3/4 | 14.000 | 13.000 | 0.500 | 100 |
| 16 | 40 | 10 | 16.000 | 15.000 | 0.500 | 131 |
| 18 | – | 11 1/4 | 18.000 | 17.000 | 0.500 | 172 |
| 20 | 30 | 12 1/2 | 20.000 | 19.000 | 0.500 | 210 |
| 22 | 30 | 13 1/2 | 22.000 | 21.000 | 0.500 | 259 |
| 24 | – | 15 | 24.000 | 23.000 | 0.500 | 302 |
Dimensional Tolerances of CS 45 Degree Short Radius Elbow – ASME B16.9
| For all fittings | Elbows 45 deg | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 |
| 4 | +2 -1 | 1,6 | than | 2 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 |
| 8 | 2 | 1,6 | of nominal | 2 |
| 10 | +4 -3 | 3,2 | tickness | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | |
| 32 a 48 | +7 -5 | 4,8 | 5 | |
Angularity Tolerances of Carbon Steel 45 Degree Short Radius Elbow
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Looking for DIN 2605 45 Deg Short Radius Elbow manufacturer in India? buy from oldest Carbon Steel 45 Degree SR Elbow manufacturers in Mumbai. Check 45 Deg Short Radius Elbow Short Radius Specification, ASME B16.9 45 Deg Short Radius Elbow & Butt Weld 45 Deg Elbow SR supplier
Specialized in Following ASME B16.9 CS 45° Short Radius Buttweld Elbow
- Carbon Steel Schedule 40 45° Short Radius Elbow
- Carbon Steel 45° Short Radius Elbow Dimensions
- ASTM A234 CS 45° Short Radius Elbow Manufacturer
- Carbon Steel 45 Degree Short Radius Elbow Dimensions
- Carbon Steel 45 Degree Short Radius Elbow ANSI B16.9
- Carbon Steel 45° Short Radius Elbow Material
- CS A234 WPB 45 Deg Short Radius Elbow Supplier
- High Yield CS A860 45 Degree SR Buttweld Elbow
- Manufacturer Of CS Sch 60 45 Deg Short Radius Elbow
- Buy Carbon Steel Buttweld 45 Deg SR Seamless Elbow
- Stockist of CS ASTM A234 45 Degree SR Buttweld Elbow
- Carbon Steel Industrial 45 Degree Short Radius Elbow
- CS Butt Weld 45 Deg Short Radius Elbow
- LTCS ASTM A420 45 Deg Short Radius Elbow
- CS A234 45° Short Radius Elbows Suppliers
- Carbon Steel 45 Degree Short Radius Pipe Elbows Dealer
- Carbon Steel 45 Deg. SR Elbow Manufacturers in India
- A860 High Yield Carbon Steel 45 Deg. SR Elbow Suppliers
- Supplier of CS 45 Deg Short Radius Elbows
- Carbon Steel 45° SR Buttweld Elbow Supplier in India
- A234 Gr.WPB 45 Degree SR Carbon Steel Elbow
- CS 45° Short Radius Elbow Manufacturer In India
- Exporter of Carbon Steel 45° Short Radius Buttweld Elbow
- Carbon Steel 45 Degree Short Radius Weight Chart
- CS ASME B16.9 Buttweld 45° Short Radius Elbow
- Carbon Steel Butt Weld Elbow 45 Degree SR Manufacturer
- Short Radius Carbon Steel 45 Degree Elbow
- Carbon Steel Short Radius Elbow 45 Degree
- ASTM A420 LTCS 45° Short Radius Elbow Wholesaler
- CS 45 Degree Short Radius Elbow
Carbon Steel 45° Short Radius Pipe Elbow Price List
| ASTM A420 WPL6 Low Temperature Carbon Steel 45° Short Radius Elbow | FOB Price: US$ 5.00 - 400.00 / Piece |
| Carbon Steel 45 Degree Short Radius Elbow 4″ | FOB Price: US$ 1.00 - 100.00 / Piece |
| 3 inch Short Radius Schedule 80 45 Degree Carbon Steel Elbow | FOB Price: US$ 1.00 - 100.00 / Piece |
| Carbon Steel 45 Degree SR Pipe Elbow Big Size | FOB Price: US$ 15.00 / Piece |
| 5 inch 45 Deg. Short Radius Carbon Steel Pipe Elbow | FOB Price: US$ 2.00 - 5.00 / Piece |
| DIN DN15-DN2000 Carbon Steel 45 Deg. SR Buttweld Elbow | FOB Price: US$ 15.00 - 20.00 / Piece |
| DN50 Carbon Steel SR Pipe Elbow 45 Degree | FOB Price: US$ 0.10 - 99.00 / Piece |
| Carbon Steel Butt Weld Short Radius Elbow 45 Degree | FOB Price: US$ 3.00 - 100.00 / Piece |
| CS 45 Degree Short Radius Elbow Buttweld Fittings | FOB Price: US$ 3.00 - 4.00 / Piece |
| Carbon Steel ASTM A234 WPB 45° SR Seamless Elbows | FOB Price: US$ 5.80 - 10.00 / Piece |
| Carbon Steel Buttweld 45° Short Radius Elbow | FOB Price: US$ 0.85 / Piece |
Are you in search of a reliable manufacturer of Carbon Steel 45 Degree Short Radius Pipe Elbows in Mumbai, India? We offer high-quality CS 45° Short Radius Buttweld Elbows at competitive prices.
Carbon Steel 45 Deg. SR Buttweld Pipe Elbow Manufacturing Process
