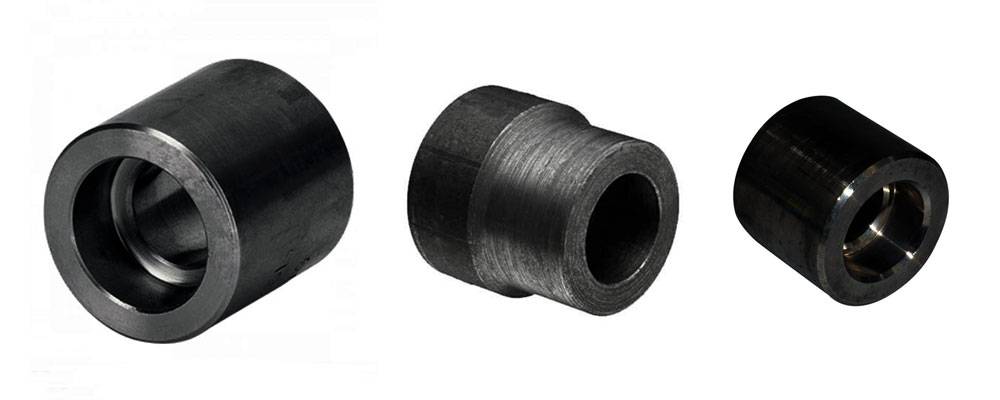

Carbon Steel Socket weld Reducing Coupling

Carbon Steel Socket weld Reducing Coupling Manufacturers in India, CS Socket weld Reducing Coupling Supplier in Mumbai, Carbon Steel Forged Socketweld Reducing Coupling.

Rajdhan Metal is a well-known manufacturer, supplier, and exporter of Carbon Steel socket weld Reducing Coupling, offering competitive rates and prompt delivery of items to customers. Carbon Steel socket weld Reducing Coupling includes modern technology that allows them to be welded directly onto the run pipe to provide a branch connection. Our Carbon Steel socket weld Reducing Coupling is used in a variety of sectors to join pipes of varying sizes.

Socket Weld Reducing Couplings are used in a variety of applications to offer torque-free sealing and a leak-free connection. Carbon Steel socket weld Reducing Coupling is available in a variety of sizes to meet the needs of various industrial applications such as power generation, petrochemicals, and so on. .

Table of Content

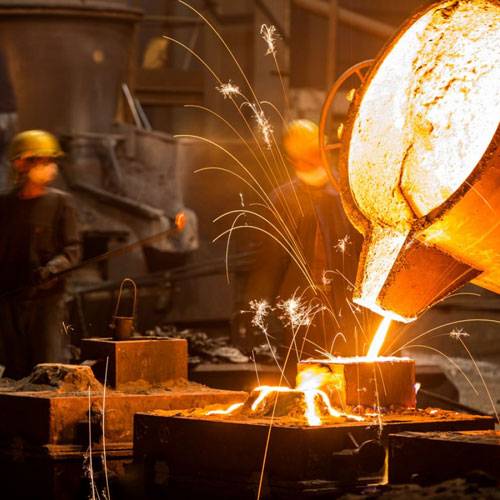

Manufacturing of Socket weld Reducing Coupling in Factory

Black Steel SW Reducing Coupling Suppliers in India, Carbon Steel Socket Weld Reducer Couplings Manufacturer, Supplier of Carbon Steel Socket weld Forged Reducing Coupling.

What is a Carbon Steel Socket weld Reducing Coupling?
Reducing couplings are pipe fittings that allow the connection of pipes of varying sizes. These fittings are frequently used for connecting small consumer or process feeder lines to large supply circuits, or when installing small diameter connections. They enable the rapid and efficient reduction of any number of pipes using standard socket-weld fittings. Socket-weld reducer inserts provide the same purpose as threaded reducing bushings with threaded fittings.

A Carbon Steel socket weld Reducing coupler may accept pipes from either end. As an example, using a 15mm to 10mm reduction coupler, a 15mm pipe may be placed into one end and a 10mm pipe into the other. A 15mm to 10mm fitting reducer allows one end of a 10mm pipe to be inserted into a 15mm fitting, such as an elbow, coupler, or tee. A reducer is a pipe component that connects pipes of various sizes. It may also refer to a substance used in photography to chemically oxidize loose silver and diminish the density of a print or negative. This word lacks a category antonym.

ASME B16.11 3000# CS Socket Weld Reducing Coupling Price, Black Socket weld Reducing Coupling Dimensions, A350 Gr LF2 LTCS Socket weld Reducer Couplings Exporter in India.

Carbon Steel Socket weld Half Coupling
Rajdhan Metal

Carbon Steel Socket weld Reducing Coupling Specifications

Specifications ASTM A105 / ASME SA105 / A350 LF 2
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB
Types Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating Socket-weld End-3000/ 6000/ 9000lbs
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Reducer Coupling, Tees, Equal Tees, Reducing Tees
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Supplier, exporter and distributor of black forged steel SW reducing couplings in Mumbai, India. Check socket weld reducing coupling dimensions as per ASME B16.11

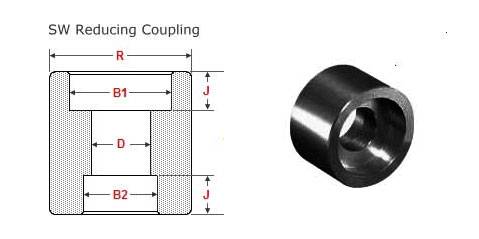

Carbon Steel Socket weld Reducing Coupling Dimensions

Socket weld Reducing Coupling dimensions
ASME B16.11 - NPS 1/2 to 2 - Class 3000 Socket Weld Reducing Coupling Dimensions
NPS Socket Bore Depth Socket
J		 Bore dia
B1 B2 B1 B2 D
3/4 - 1/2 27.30
27.05		 21.95
21.70		 13 10 16.6
15
1 - 3/4 34.05
33.80		 27.30
27.05		 13 13 21.7
20.2
1 - 1/2 34.05
33.80		 21.95
21.70		 13 10 16.6
15
1.1/4 - 1 42.80
42.55		 34.05
33.80		 13 13 27.4
25.9
1.1/2 - 1 48.90
48.65		 34.05
33.80		 13 13 27.4
25.9
1.1/2 - 3/4 48.90
48.65		 27.30
27.05		 13 13 21.7
20.2
1.1/2 - 1/2 48.90
48.65		 21.95
21.70		 13 10 16.6
15
2 - 1.1/2 61.35
61.10		 48.90
48.65		 16 13 41.7
40.1
2 - 1 74.20
73.80		 34.05
33.80		 16 13 27.4
25.9
NPS Length Coupling Diameter Coupling
Q R
3/4 - 1/2 35 36
1 - 3/4 38.1 45.2
1 - 1/2 38.1 45.2
1.1/4 - 1 38.1 55.1
1.1/2 - 1 38.1 60
1.1/2 - 3/4 38.1 60
1.1/2 - 1/2 38.1 60
2 - 1.1/2 51.3 74.9
2 - 1 51.3 74.9
ASME B16.11 - NPS 1/2 to 2 - Class 6000 Socket Weld Reducing Coupling Dimensions
NPS Socket Bore Depth Socket
J		 Bore dia
B1 B2 B1 B2 D
3/4 - 1/2 27.30
27.05		 21.95
21.70		 13 10 12.5
11
1 - 3/4 34.05
33.80		 27.30
27.05		 13 13 16.3
14.8
1 - 1/2 34.05
33.80		 21.95
21.70		 13 10 12.5
11
1.1/4 - 1 42.80
42.55		 34.05
33.80		 13 13 21.5
19.9
1.1/2 - 1 48.90
48.65		 34.05
33.80		 13 13 21.5
19.9
1.1/2 - 3/4 48.90
48.65		 27.30
27.05		 13 13 16.3
14.8
1.1/2 - 1/2 48.90
48.65		 21.95
21.70		 13 10 12.5
11
2 - 1.1/2 61.35
61.10		 48.90
48.65		 16 13 34.7
33.2
2 - 1 74.20
73.80		 34.05
33.80		 16 13 21.5
19.9
NPS Length Coupling Diameter Coupling
Q R
3/4 - 1/2 35 40.1
1 - 3/4 38.1 50
1 - 1/2 38.1 50
1.1/4 - 1 38.1 57.9
1.1/2 - 1 38.1 65
1.1/2 - 3/4 38.1 65
1.1/2 - 1/2 38.1 65
2 - 1.1/2 51.3 82
2 - 1 51.3 82

Rajdhan Metal offers high-quality and cost-effective carbon steel socketweld reducing coupling in India. View socket weld reducing coupling weight chart and price list in India.

Specialized in Following ASME B16.11 Carbon Steel Socket weld Reducing Coupling

  • Carbon Steel Industrial Socketweld Reducing Coupling
  • Carbon Steel Socket weld Forged Reducer Coupling
  • Low Temperature Steel A350 LF2 SW Reducing Coupling
  • Carbon Steel Socket weld Reducing Couplings Trader
    • li>ASME B16.11 CS Socket welding Reducing Coupling
  • Black Steel 2" Socket weld Reducing Couplings
  • Carbon Steel Class 6000 SW Reducing Couplings
  • Black Iron Socketweld Reducing Couplings Stockist
  • Stockists of Carbon Steel Socket Weld Reducer Couplings
  • Low Carbon Steel Socket weld Reducing Coupling
  • CS Forged Socket weld Reducing Coupling in Mumbai
  • Carbon Steel SW Reducing Coupling for Piping Connection
  • 3000lb, Carbon Steel SW Reducing Coupling Stockholder
  • Carbon Steel Socket weld Reducing Coupling Suppliers
  • 1" Galvanised Carbon Steel Socket weld Reducing Coupling
  • Carbon Steel Socket Welded Reducing Coupling
  • Carbon Steel ASTM A105 Socket weld Reducing Coupling
  • Carbon Steel Black Reducing Coupling Socket weld
  • High Carbon Steel S/W Reducing Couplings 6000#
  • Carbon Steel Socket Weld Reducer Coupling Stock
  • Carbon Steel Socket weld Forged Reducing Couplings
  • Carbon Steel Socket welding Reducing Couplings Wholesaler
  • CS Forged High Pressure Socket weld Reducing Coupling
  • Exporter of Carbon Steel Socket Weld Reducer Coupling
  • Carbon Steel SW Forged Reducing Coupling Supplier
  • Cast Iron Socket weld Reducing Coupling Dealer
  • Carbon Steel Forged Socket Weld Reducing Coupling
  • Manufacturers of CS Socket weld Reducing Couplings
  • Carbon Steel Socket weld Reducing Coupling in India
  • ASME B16.11 Black Steel SW Reducer Coupling Fitting
  • Black Iron SW Reducing Couplings Distributor
  • Socket Weld Forged Carbon Steel Reducing Coupling

Carbon Steel Socket weld Reducing Coupling Price List

CS Socket Weld Reducing Coupling Price Per Piece Price in INR Price in Saudi Riyal Price in UAE Dirham
Carbon Steel Reducing Coupling 3000# Socketweld End Rs. 74.54 Saudi Riyal 28.76 UAE Dirham 45.30
Reducing Coupling Connection Socket Weld Carbon Steel Rs. 210.31 Saudi Riyal 23.20 UAE Dirham 36.03
Rate of Forged Carbon Steel SW Reducing Coupling Rs. 806.21 Saudi Riyal 43.57 UAE Dirham 57.14
6000 lb CS Socket Weld Reducer Coupling Cost Rs. 356.14 Saudi Riyal 54.87 UAE Dirham 52.32
Socket Weld Carbon Steel Reducer Coupling Pipe Fittings Rs. 389.54 Saudi Riyal 27.65 UAE Dirham 29.28

ASME B16.11 Carbon Steel Socket weld Reducing Coupling Weight Chart in Kg

Item Size Connection Type Class Weight
3000-Socket Weld-1/8 1/8 Socket Weld 3000 -
3000-Socket Weld-1/4 1/4 Socket Weld 3000 0.12 kg
3000-Socket Weld-3/8 3/8 Socket Weld 3000 0.16 kg
3000-Socket Weld-1/2 1/2 Socket Weld 3000 0.24 kg
3000-Socket Weld-3/4 3/4 Socket Weld 3000 0.39 kg
3000-Socket Weld-1 1 Socket Weld 3000 0.57 kg
3000-Socket Weld-1 1/4 1 1/4 Socket Weld 3000 0.9 kg
3000-Socket Weld-1 1/2 1 1/2 Socket Weld 3000 1.04 kg
3000-Socket Weld-2 2 Socket Weld 3000 1.79 kg
3000-Socket Weld-2 1/2 2 1/2 Socket Weld 3000 2.42 kg
3000-Socket Weld-3 3 Socket Weld 3000 4.06 kg
3000-Socket Weld-4 4 Socket Weld 3000 5.73 kg
6000-Socket Weld-1/8 1/8 Socket Weld 6000 N/A
6000-Socket Weld-1/4 1/4 Socket Weld 6000 0.23 kg
6000-Socket Weld-3/8 3/8 Socket Weld 6000 0.33 kg
6000-Socket Weld-1/2 1/2 Socket Weld 6000 0.45 kg
6000-Socket Weld-3/4 3/4 Socket Weld 6000 0.67 kg
6000-Socket Weld-1 1 Socket Weld 6000 1.27 kg
6000-Socket Weld-1 1/4 1 1/4 Socket Weld 6000 1.37 kg
6000-Socket Weld-1 1/2 1 1/2 Socket Weld 6000 2.09 kg
6000-Socket Weld-2 2 Socket Weld 6000 3.85 kg
6000-Socket Weld-2 1/2 2 1/2 Socket Weld 6000 4.93 kg
6000-Socket Weld-3 3 Socket Weld 6000 6.69 kg
6000-Socket Weld-4 4 Socket Weld 6000 8 kg
9000-Socket Weld-1/2 1/2 Socket Weld 9000 0.62 kg
9000-Socket Weld-3/4 3/4 Socket Weld 9000 1.04 kg
9000-Socket Weld-1 1 Socket Weld 9000 1.71 kg
9000-Socket Weld-1 1/4 1 1/4 Socket Weld 9000 1.69 kg
9000-Socket Weld-1 1/2 1 1/2 Socket Weld 9000 2.93 kg
9000-Socket Weld-2 2 Socket Weld 9000 4.61 kg
industrial applications examples

Carbon Steel Socket weld Reducing Coupling Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
  • Fire Fighting
  • HVAC & MEP
Rajdhan Metal is a leading supplier, exporter, stockist, and distributor of carbon steel socket weld reducing couplings. Contact us today for customizable sizes as per the customers' needs.
