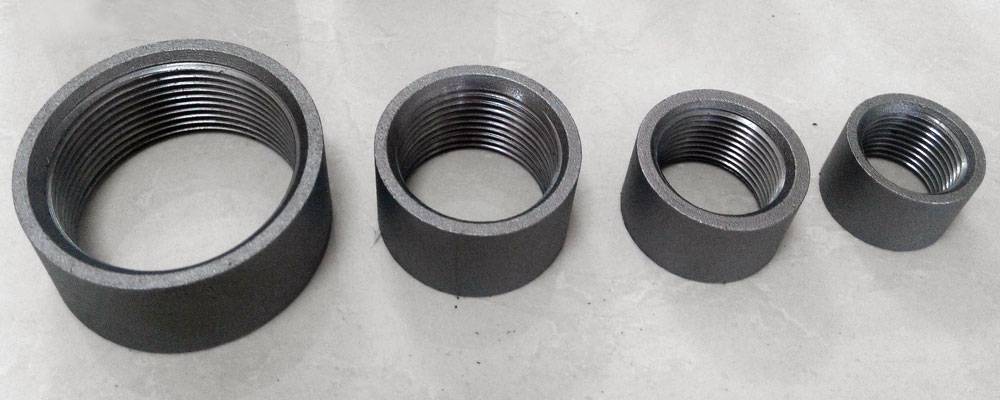

Rajdhan Metal is quite well-known in the industry for making and exporting Carbon Steel Threaded Half Coupling. The Threaded Pipe Half Coupling is still threaded the way it was at one point. These fittings are a crucial component of the piping system. To create a department association, a half coupling ASME B16.11 can be precisely welded to the run of the pipe. a Coupling ASME B16.11 A fitting that is threaded may be necessary to extend or terminate a pipe run. For connecting liquid conduits, coupling fittings are used, and each end of the two channels to be joined is provided with a swaged-on adaptor carrying the necessary tools to connect or disconnect the channels without aggravating the swaged-on connector. Ratings, tolerances, marking requirements, and material specifications for both socket-welded and threaded forged fittings are covered in the ASME B16.11 Threaded Half Coupling Standard specification. In addition to these specifications, the specification includes ASME B16.11 half coupling threaded dimensions.
What is a Half Coupling?
A form of connection called a threaded pipe half coupling can be used to employ threaded rings to
fasten two pieces of pipe together. Only one end of a threaded half coupling 1/2 is threaded. The
opposite end of the threaded half coupling size could be welded or attached to the piping in another
way. One threaded half coupling has the following function: Hoses are readily recognizable things.
These Hoses are coupled together using an ASME B16.11 half coupling. The ASME B16.11 Threaded Half
Coupling's threaded end is screwed onto a faucet. While the hose is clamped onto the other end of the
ASME B16.11 half coupling threaded - class 3000. When used with pipes, one end of an ASME B16.11
coupling is screwed onto the pipe, and the other end of the threaded half coupling can either be made
to be tightly inserted into the pipe or can be welded onto the other end of the threaded half
coupling.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Half Coupling Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Half Coupling Size | 1/8″ NB TO 4″ NB |
Half Coupling Thread | NPT, BSPT, BSPP (Male / Female) |
Half Coupling Types | Socketweld Fittings, Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Full Couplings, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Unions, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
NPT, ISO/BSP, SAE thread Half Coupling Dimensions, Forged Carbon Steel Threaded Half Coupling Price in India, CS ASME B16.11 Screwed Half Coupling Exporter in India.

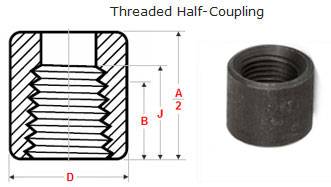

Class 3000 Half Coupling Dimensions
NPS | End to End | Outside Diameter | Minimum Length of Thread | |
---|---|---|---|---|
A | D | B | J | |
1/2 | 48 | 28 | 10.9 | 13.6 |
3/4 | 51 | 35 | 12.7 | 13.9 |
1 | 60 | 44 | 14.7 | 17.3 |
1¼ | 67 | 57 | 17 | 18 |
1½ | 79 | 64 | 17.8 | 18.4 |
2 | 86 | 76 | 19 | 19.2 |
2½ | 92 | 92 | 23.6 | 28.9 |
3 | 108 | 108 | 25.9 | 30.5 |
4 | 121 | 140 | 27.7 | 33 |
Class 6000 Half Coupling Dimensions
NPS | End to End | Outside Diameter | Minimum Length of Thread | |
---|---|---|---|---|
A | D | B | J | |
1/2 | 48 | 38 | 10.9 | 13.6 |
3/4 | 51 | 44 | 12.7 | 13.9 |
1 | 60 | 57 | 14.7 | 17.3 |
1¼ | 67 | 64 | 17 | 18 |
1½ | 79 | 76 | 17.8 | 18.4 |
2 | 86 | 92 | 19 | 19.2 |
2½ | 92 | 108 | 23.6 | 28.9 |
3 | 108 | 127 | 25.9 | 30.5 |
4 | 121 | 159 | 27.7 | 33 |
Description | Material | Qty | Unit | Price |
Threaded , BSPT 1/2″ Half Coupling | A105N | 10 | pcs | US $ 2 / Piece |
1/4″ BSPP Half Coupling | A105 | 60 | pcs | US$ 1.5-1.98 / Piece (FOB Price) |
Half Coupling Threaded NPT, 1/2″, 6000lb, | SA105 | 161 | pcs | US$ 0.62-19.7 / Piece (FOB Price) |
Half Coupling , 3/4″, NPT threaded | A350 | 111 | pcs | US$ 0.1-0.3 / Piece (FOB Price) |
Half Coupling Threaded, 1″, 3000lb, BSPP | SA350 | 53 | pcs | US$ 1.5-200 / Piece (FOB Price) |
2″Thread Half Coupling | A105 | 83 | pcs | US$ 1.28-29.7 / Piece (FOB Price) |
ASME B16.11 Threaded Half Coupling Weight | |||
Nominal Size | Approximate Weight Kg | ||
DN | NPS | 3000 | 6000 |
6 | 1/8 | 0.03 | 0.05 |
8 | 1/4 | 0.04 | 0.07 |
10 | 3/8 | 0.06 | 0.12 |
15 | 1/2 | 0.11 | 0.2 |
20 | 3/4 | 0.15 | 0.26 |
25 | 1 | 0.28 | 0.53 |
32 | 1 1/4 | 0.43 | 0.65 |
40 | 1 1/2 | 0.63 | 1.1 |
50 | 2 | 0.83 | 1.7 |
65 | 2 1/2 | 1.5 | 2.4 |
80 | 3 | 2.1 | 3.6 |
100 | 4 | 3.9 | 6 |
