Mild Steel Elbow

ms elbow manufacturer in Mumbai, India, elbow ms, ms elbow, ms elbow hsn code, 90 degree elbow manufacturer in mumbai

Rajdhan Metal is India's leading manufacturer and supplier of premium MS elbow. With years of expertise in the industry, we deliver high-quality elbows that meet global standards. Our commitment to innovation, precision and customer satisfaction has made us a trusted partner in industrial and commercial piping solutions. As a reliable MS elbow manufacturer in Mumbai, we take pride in providing fittings that cater to diverse industries including oil and gas, plumbing, water treatment and chemical processing.

Mild steel elbow is a vital pipe fittings used to turn the direction of the flowing fluid in the pipeline. These elbows are acclaimed for their durability, versatility and resistance to wear. As an MS elbow manufacturer in India, we deliver precision-engineered elbows that meet clients' specific requirements. Whether you require a 2-inch elbow MS or any other size of component, we guarantee accurate manufacturing and durability for your project.

Table of Content
Manufacturing of Pipe Elbow in Factory

View our ms elbow price list, ms elbow size chart, ms elbow specifications, ms elbow weight chart

Elbow MS are available in different forms to meet different industry requirements. MS elbow 45 degrees and the MS elbow 90 degree which are mostly used elbows for the redirection of fluids in pipe systems. For precise applications, 2-inch MS elbow is preferred for smaller diameter pipelines. This elbow finds extensive use in industries such as construction, petrochemicals, wastewater management and power plants. As trusted MS elbow exporters in UAE and other international markets, we provide fittings that withstand high-pressure environments and corrosive conditions.

This ms elbow is corrosion-resistant, highly durable and capable of withstanding extreme temperatures and pressures. They are easy to install and maintain, ensuring efficient operations in any pipeline system. The 90-degree elbow produced in Mumbai is made with high accuracy to guarantee that there will be no leakage of connections and maximum flow rate. We ensure that our elbow meets high-quality control measures and all standard requirements. Choose us as your mild steel elbows supplier and experience premium quality.

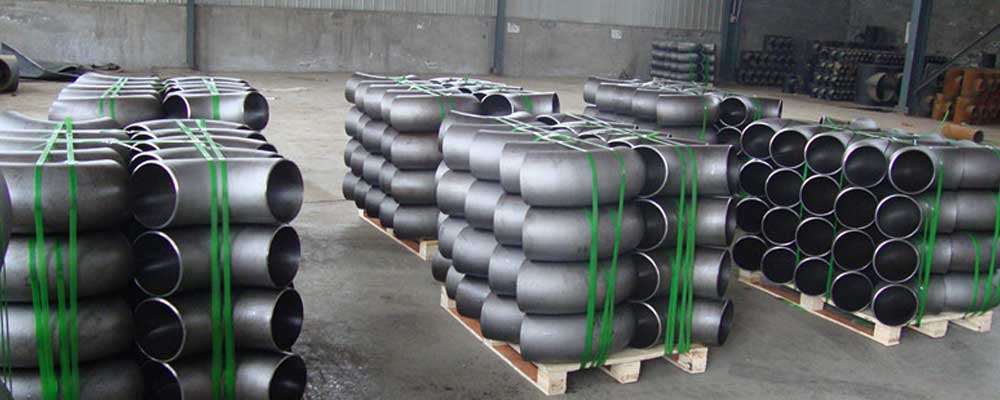

MS Elbows in Warehouse
Rajdhan Metal

MS Elbow Specifications

MS Elbow Size Range

  • MS Elbows are available in a wide range of sizes from 1/2" NB (Nominal Bore) to 48" NB
  • The most common sizes are 1/2", 1", 2", 3", 4", 6", 8", 10", 12", 16", 20" and up to 48"

Wall Thickness

  • MS Elbows are manufactured in various wall thicknesses or schedules, ranging from schedule 10s to 80s
  • The wall thickness can range from 1/8" to 20" depending on the size and schedule

Pressure Ratings

  • MS Elbows can withstand high pressures, up to 250 psi at elevated temperatures
  • The pressure rating depends on the size, wall thickness, and material grade

Bending Radius

  • MS Elbows are available in different bending radii, such as 1D, 2D, 3D, 5D, 6D, 8D, 10D or custom radii
  • The bending radius is the distance from the center of the pipe to the center of the bend, expressed as a multiple of the pipe diameter (D)

Material Standards

  • MS Elbows are typically manufactured to standards like ASTM A234, MSS SP-75, ASME B16.9, DIN2615, JIS B2312
  • Carbon steel Elbow: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH, P235GH, P265GH, P280GH,P295GH,P355GH etc.
  • The most common material grades are A234 WPB for seamless elbows and weld elbows

Connection Types

  • MS Elbows are available in different connection types: welded and seamless
  • Butt weld elbows are welded directly to the pipe.
Call us to get latest MS Elbow prices in Mumbai, Maharashtra

Check MS Elbow Price List

Check out our best prices for a wide range of mild steel elbows. Our detailed price list makes it easy to find exactly what you need within your budget for your project. The pricing depends on size, wall thickness, material grade, connection type, bending radius, and order quantity. We are dedicated to transparency and are here to assist you in finding the most cost-effective solutions.

  • MS Elbows range in price from ₹150 to ₹7,000 depending on size and specifications
  • Smaller sizes like 1/2" to 2" are priced between ₹20 to ₹150 per piece
  • Larger sizes from 4" to 12" are priced between ₹435 to ₹4,500 per piece
  • Weld Elbows Mild Steel
    • 1/2" to 2": ₹20 to ₹93 per piece
    • 4" to 12": ₹435 to ₹4,500 per piece
  • Seamless Elbow Schedule 40:
    • 1/2" to 2": ₹27 to ₹123 per piece
    • 4" to 12": ₹510 to ₹8,700 per piece
  • MS ERW Elbow :
    • 1" to 2": ₹24 to ₹51 per piecee
    • 4" to 12": ₹135 to ₹1,500 per piece
  • Black MS Elbow: ₹18 per piece

Note:

  • Prices are indicative and may vary based on quantity and market conditions.
  • For bulk orders or custom sizes, please contact us for a detailed quotation.
  • Prices exclude GST, as well as loading and transportation fees

Various MS Pipe Elbow available in stock

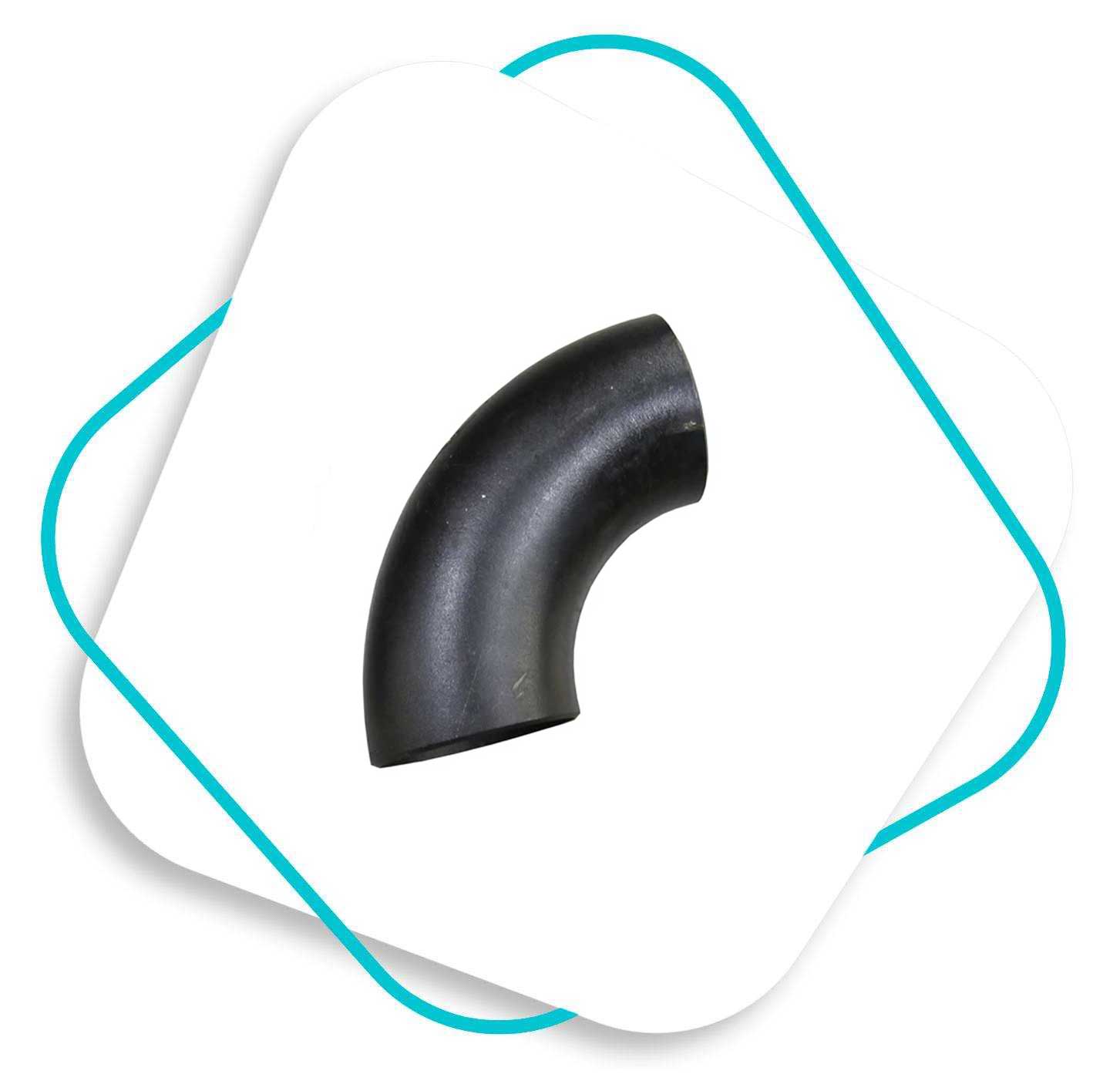

Mild Steel 90 Degree Elbow

Mild Steel 90 Degree Elbow

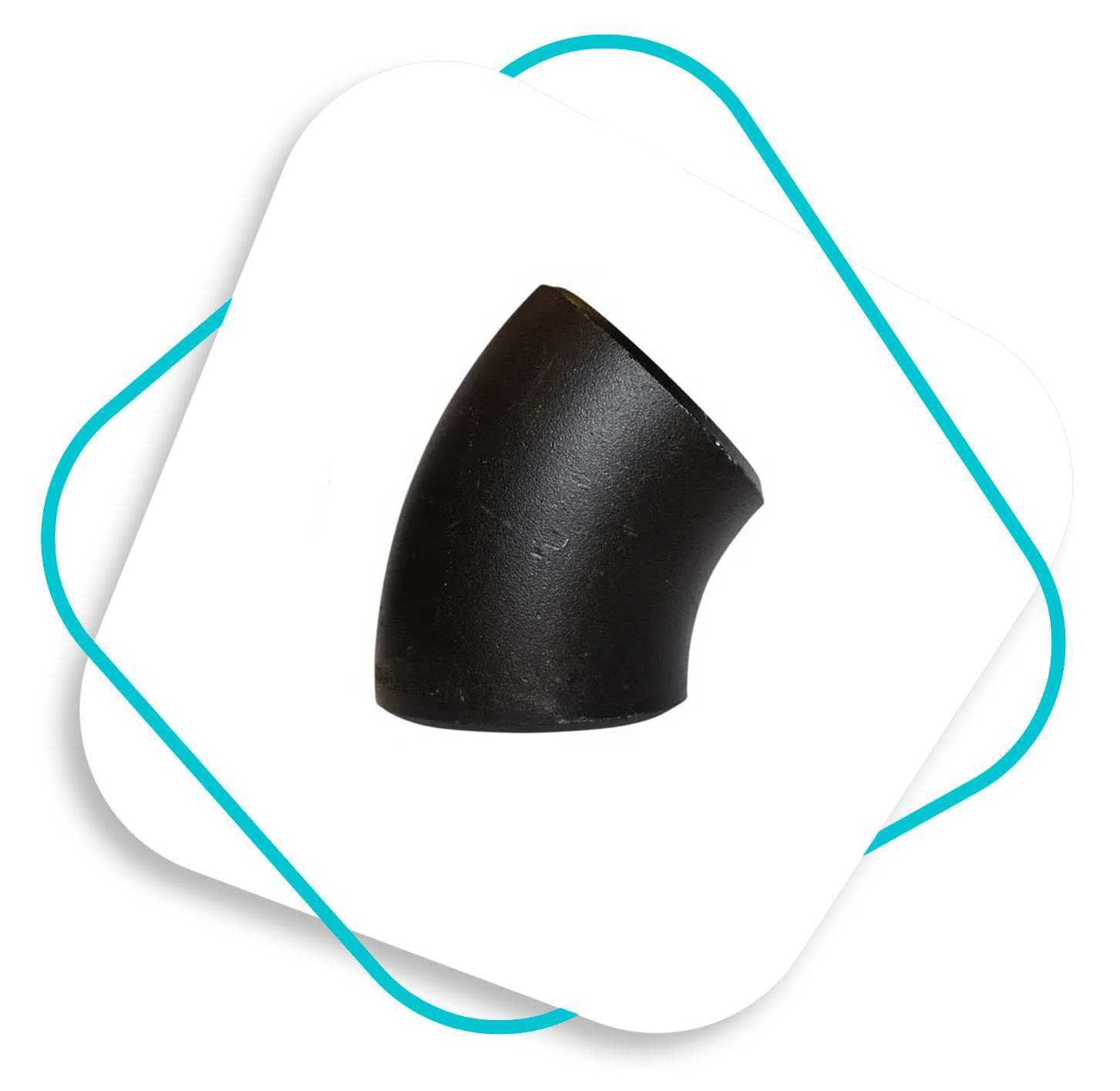

MS Elbow 45 Degree

MS Elbow 45 Degree

MS Elbow Dimensions

Nominal Outside Diameter 90° Elbows 45° Elbows 180° Returns
Pipe Size
Long Radius Short Radius Long Radius Long Radius
(inches) (mm) (inches) Center to Face Center to Face Center to Face Radius Center to Center Back to face
(inches) (inches) (inches) (inches) (inches) (inches)
1/2 21.3 0.84 1.5 – 5/8 2 1.875
3/4 26.7 1.05 1.125 – 7/16 2.25 1.6875
1 33.4 1.315 1.5 1 7/8 3 2.1875
1.25 42.2 1.66 1.875 1.25 1 3.75 2.75
1.5 48.3 1.9 2.25 1.5 1.125 3 4.5 3.25
2 60.3 2.375 3 2 1.375 4 6 4.1875
2.5 73 2.875 3.75 2.5 1.75 5 7.5 5.1875
3 88.9 3.5 4.5 3 2 6 9 6.25
3.5 101.6 4 5.25 3.5 2.25 7 10.5 7.25
4 114.3 4.5 6 4 2.5 8 12 8.25
5 141.3 5.563 7.5 5 3.125 10 15 10.3125
6 168.3 6.625 9 6 3.75 12 18 12.3125
8 219.1 8.625 12 8 5 12 24 16.3125
10 273.1 10.75 15 10 6.25 15 30 20.375
12 323.9 12.75 18 12 7.5 18 36 24.375

MS Elbow Weight Chart

APPROXIMATES WEIGHTS

Nominal

Pipe Size
90°LR ELBOW
45°LR ELBOW
90°SR ELBOW
5S
10S
40S
80S
5S
10S
40S
80S
5S
10S
40S
80S
1/2
0.049
0.060
0.075
0.110
0.024
0.030
0.038
0.090
–
–
–
–
3/4
0.062
 0.060
0.075
0.110
0.031
0.030
0.037
0.090
–
–
–
–
1
0.078
0.140
0.160
0.230
0.039
0.100
0.120
0.140
0.077
0.094
0.118
0.180
11/4
0.125
0.240
0.260
0.400
0.063
0.140
0.170
0.230
0.101
0.152
0.204
0.280
11/2
0.170
0.280
0.350
0.500
0.085
0.180
0.200
0.310
0.114
0.189
0.245
0.340
2
0.286
0.460
0.660
1.000
0.143
0.310
0.400
0.540
0.191
0.318
0.434
0.680
21/2
0.576
0.800
1.300
1.800
0.288
0.450
0.700
0.960
0.383
0.541
0.909
1.300
3
0.810
1.200
2.150
3.000
0.405
0.650
1.100
1.600
0.540
0.761
1.360
1.900
31/2
1.080
1.530
2.820
3.800
0.540
0.760
1.410
2.000
0.719
1.020
1.880
2.700
4
1.390
2.000
4.000
6.100
0.696
1.050
1.950
2.800
0.928
1.310
2.560
3.800
5
2.830
3.420
6.480
10.00
1.420
1.710
3.240
4.800
1.890
2.280
4.320
6.300
6
4.030
5.250
9.940
15.80
2.010
2.430
4.970
7.900
2.680
3.240
6.630
10.40
8
7.060
10.00
20.10
32.00
3.530
5.010
10.10
15.80
4.710
6.680
13.40
21.55
10
13.20
15.50
35.40
48.00
6.620
7.770
17.70
23.90
8.830
10.40
23.60
31.75
12
22.30
25.90
56.20
72.00
11.10
12.50
28.10
38.00
14.80
16.70
37.50
47.17
Industrial Applications

MS Elbow Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
  • Fire Fighting
  • HVAC & MEP
