45 degree elbow dimensions chart

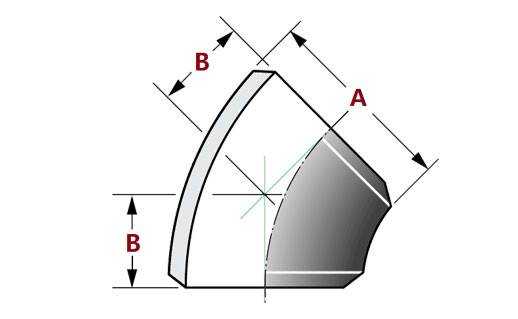

45 Degree Elbow Drawing

ASME B16.9 - 45 Degree Elbow Dimensions
Nom Size Inches	OD mm	Dim 'B' (mm)	Sch STD (kg)	Sch XS (kg)	Sch 160 (kg)	Sch XXS (kg)
1/2	21.3	16	0.04
3/4	26.7	11	0.04	0.07		0.08
1	33.4	22	0.11	0.13	0.17	0.18
1 1/4	42.2	25	0.15	0.20	0.23	0.25
1 1/2	48.3	29	0.21	0.27	0.35	0.52
2	60.3	35	0.35	0.47	0.79	0.96
2 1/2	73	44	0.75	0.86	1.35	1.7
3	88.9	51	1.01	1.39	2.0	2.6
3 1/2	101.6	57	1.42	2.14		3.9
4	114.3	64	1.91	2.65	4.3	4.8
5	141.3	79	3.26	4.65	7.65	8.6
6	168.3	95	5.18	7.5	13.5	14.4
8	219.1	127	10	15	29	27
10	273	150	18	24	61
12	323.8	190	27	33	104
14	355.6	222	33	43	125
16	406.4	254	46	59	187
18	457.2	286	57	77
20	508	318	70	92
24	610	381	100	133
26	660.4	406	124	164
30	762	470	165	214
36	914	565	239	318
42	1067	860	320	428
