Carbon Steel Welded Fittings

Carbon Steel Weld Fittings, Carbon Steel Welded Pipe Fitttings, ASTM A234 WPB Welded Fittings, ASTM A420 LTCS Welded Pipe Fittings, Carbon Steel Welded Fittings Suppliers, CS Welded Fittings, Carbon Steel Welded Pipe Fittings Manufacturers in India.

When it comes to Carbon Steel Welded Fittings, the variety of different products available is vast. Carbon steel welded fittings are strong and reliable and have many uses in various industries such as HVAC, plumbing, industrial piping, and more. These fittings come in a range of shapes and sizes with different specifications to meet the needs of any project.

Table of Content

What is Carbon Steel Welded Pipe Fittings?
Carbon Steel Welded Fittings Specification
Types of Carbon Steel Welded Pipe Fittings
Dimensions Of Carbon Steel Welded Fittings
Dimensional Tolerances of Carnon Steel Welded Fittings
Schedule 40 Welded Pipe Fttings Dimensions
Schedule 80 Black Welded Pipe Fittings Dimensions
Carbon Steel Welded Fittings Working Pressure
CS ASME B16.9 Fittings Pressure-Temperature Ratings
Factory-Made Wrought Welded Fittings Size Chart Carbon Steel
Specialized in Following ANSI B16.9 CS Welded Fittings
Carbon Steel Welded Fittings Price List
CS Welded Fittings Industrial Applications

Manufacturing of Welded Pipe Fittings in Factory

Carbon Steel Welded Fittings Manufacturer, ASTM A234 Carbon Steel Weld Reducers, CS Welded Pipe Fittings, Carbon Steel Welded Elbow, Low Temperature Carbon Steel A420 WPL6 Welded Tee, Carbon Steel Welded Pipe Fittings Suppliers In Mumbai.

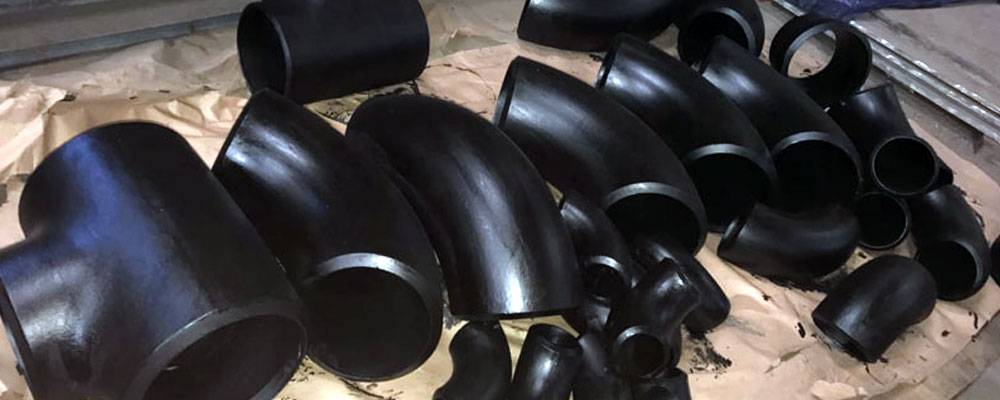

Our carbon steel welded fittings are manufactured using high-grade materials for superior performance and durability. Our product line includes Elbows, Tees, Reducers, Crosses, and Pipe Caps & Plugs among other design options ensuring that you get exactly what you need for your job. Our products also come in standard weight (STD), extra-heavy (XH), and double extra-heavy (XXH) wall thicknesses, allowing for a perfect fit.

Our products are designed to meet all applicable ASTM standards as well as most international standards, and we provide 100% inspection on all our welded fittings prior to shipment. We also offer custom pipe fabrication services that allow you to get the exact fitting you need for your application. With our commitment to quality and customer service, you can trust us to provide you with the right carbon steel welded fittings and service needed for any project.

CS Welded Pipe Cross, Carbon Steel Welded Pipe Cap, Carbon Steel Welded Fittings Exporter in India, ANSI B16.9 CS Welded Stub End, ASTM A860 High Yield Carbon Steel Welded Pipe Nipple, Manufacturer of Carbon Steel Welded Pipe Fittings in Mumbai, India.

Carbon Steel Welded Fittings Material Specification

Standard	ASTM A234, A860, A420 / ASME SA234, SA860, SA420
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Welded Butt Weld Fittings : 1/2″ – 10″
Schedule	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Wall Thickness	from 2 to 40 mm
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type	Welded / ERW / Welded
Carbon Steel Welded Fittings	ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Welded Fittings	ASTM A420 WPL3 / A420 WPL6
Form	90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub Ends

Types of Carbon Steel Welded Pipe Fittings

Call us to get the latest price list for Carbon Steel Welded Pipe Fitttings in Mumbai, Maharashtra. We have special offers available for CS Welded Fittings with the best price.

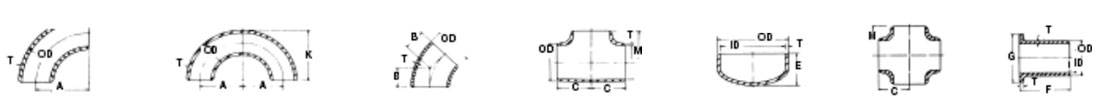

Carbon Steel Weld Fitting Dimensions

Nom. Pipe Size In.	OD	Wall Thickness T				90° Elbows		90° Returns		45° Elbows	Tees	Caps	Crosses	Stub Ends
Nom. Pipe Size In.	OD	ST	XS	160	XX	Long R A	Short R A	Long R K	Short R K	B	C	E	C	F	G
1/2	0.840	0.109	0.147	—	—	1-1/2	—	1-15/16	—	5/8	1	1	—	3	1-3/8
3/4	1.050	0.113	0.154	—	0.308	1-1/8	—	1-11/16	—	7/16	1-1/8	1-1/4	—	3	1-11/16
1	1.315	0.133	0.179	0.250	0.358	1-1/2	1	2-3/16	1-5/8	7/8	1-1/2	1-1/2	—	4	2
1-1/4	1.660	0.140	0.191	0.250	0.382	1-7/8	1-1/4	2-3/4	2-11/16	1	1-7/8	1-1/2	1-7/8	4	2-1/2
1-1/2	1.900	0.145	0.200	0.281	0.400	2-1/4	1-1/2	3-1/4	2-7/16	1-1/8	2-1/4	1-1/2	2-1/4	4	2-7/8
2	2.375	0.154	0.218	0.344	0.436	3	2	4-3/16	3-3/16	1-3/8	2-1/2	1-1/2*	2-1/2	6	3-5/8
2-1/2	2.875	0.203	0.276	0.375	0.552	3-3/4	2-1/2	5-3/16	3-15/16	1-3/4	3	1-1/2	3	6	4-1/8
3	3.500	0.216	0.300	0.438	0.600	4-1/2	3	6-1/4	4-3/4	2	3-3/8	2*	3-3/8	6	5
3-1/2	4.000	0.226	0.318	—	0.636	5-1/4	3-1/2	7-1/4	5-1/2	2-1/4	3-3/4	2-1/2*	3-3/4	6	5-1/2
4	4.500	0.237	0.337	0.531	0.674	6	4	8-1/4	6-1/4	2-1/2	4-1/8	2-1/2*	4-1/8	6	6-3/16
5	5.563	0.258	0.375	0.625	0.750	7-1/2	5	10-5/16	7-3/4	3-1/8	4-7/8	3*	4-7/8	8	7-5/16
6	6.625	0.280	0.432	0.719	0.864	9	6	12-5/16	9-5/16	3-3/4	5-5/8	3-1/2*	5-5/8	8	8-1/2
8	8.625	0.322	0.500	0.906	0.875	12	8	16-5/16	12-5/16	5	7	4*	7	8	10-5/8
10	10.750	0.365	0.500	1.125	1.000	15	10	20-3/8	15-3/8	6-1/4	8-1/2	5*	8-1/2	10	12-3/4
12	12.750	0.375	0.500	1.312	1.000	18	12	24-3/8	18-3/8	7-1/2	10	6*	10	10	15
14	14.000	0.375	0.500	—	—	21	14	28	21	8-3/4	11	6-1/2*	11	12	16-1/4
16	16.000	0.375	0.500	—	—	24	16	32	24	10	12	7*	12	12	18-1/2
18	18.000	0.375	0.500	—	—	27	18	36	27	11-1/4	13-1/2	8*	13-1/2	12	21
20	20.000	0.375	0.500	—	—	30	20	40	30	12-1/2	15	9*	15	12	23
22	22.000	0.375	0.500	—	—	33	—	44	—	13-1/2	16-1/2	10	16-1/2	—	—
24	24.000	0.375	0.500	—	—	36	24	48	36	15	17	10-1/2	17	12	27-1/4
26	26.000	0.375	0.500	—	—	39	—	52	—	16	19-1/2	10-1/2	19-1/2	—	—
30	30.000	0.375	0.500	—	—	45	30	60	45	18-1/2	22	10-1/2	22	—	—
34	34.000	0.375	0.500	—	—	51	—	—	—	21	25	10-1/2	25	—	—
36	36.000	0.375	0.500	—	—	54	36	—	54	22-1/4	26-1/2	10-1/2	—	—	—
42	42.000	0.375	0.500	—	—	63	42	—	—	26	—	12	—	—	—

Dimensional Tolerances of Carnon Steel Welded Fittings

All Fittings				90˚ & 45˚ Elbows Tees Crosses Laterals	Caps	180˚ Returns			Lap-Joint Stub Ends and Reducers	Lap-Joint StubEnds
NPS	Outside1 Diameter at Bevel O.D.	Inside Diameter at End i.D.	Wall Thickness	Center to End A,B,C,M	Overall Length E	Center to Center H	Back to Face K	Parallelity of Planes of Ends	Overall Length F,L	Outside Diameter of Lap G	Thickness of Lap t	Fillet Radius of Lap R	Outside Diameter of Barrel
DN	Outside1 Diameter at Bevel O.D.	Inside Diameter at End i.D.	Wall Thickness	Center to End A,B,C,M	Overall Length E	Center to Center H	Back to Face K	Parallelity of Planes of Ends	Overall Length F,L	Outside Diameter of Lap G	Thickness of Lap t	Fillet Radius of Lap R	Outside Diameter of Barrel
1/2 - 2 1/2	+.06 -.03	±.03	Not less than 87 1/2% of nominal thickness	±.06	±.12	±.25	±.25	±.03	±.06	+0 -.03	+.06 -0	+0 -.03	Refer to page 21.
15 - 65	±1	±8		±2	±4	±7	±7	±1	±2	+0 -1	+2 -0	+0 -1
3 - 3 1/2	±.06	±.06		±.06	±.12	±.25	±.25	±.03	±.06	+0 -.03	+.06 -0	+0 -.03
80 - 90	±1	±1.6		±2	±4	±7	±7	±1	±2	+0 -1	+2 -0	+0 -1
4	±.06	±.06		±.06	±.12	±.25	±.25	±.03	±.06	+0 -.03	+.06 -0	+0 -.06
100	+2 -1	±1.6		±2	±4	±7	±7	±1	±2	+0 -1	+2 -0	+0 -2
5 - 6	+.09 -.06	±.06		±.06	±.25	±.25	±.25	±.03	±.06	+0 -.03	+.06 -0	+0 -.06
125 - 150	+3 -1	±1.6		±2	±7	±7	±7	±1	±2	+0 -1	+2 -0	+0 -2
8	+.09 -.06	±.06		±.06	±.25	±.25	±.25	±.03	±.06	+0 -.03	+.06 -0	+0 -.06
200	±2	±1.6		±2	±7	±7	±7	±1	±2	+0 -1	+2 -0	+0 -2
10	+.16 -.12	±.12		±.09	±.25	±.38	±.25	±.06	±.09	+0 -.06	+.06 -0	+0 -.06
250	+4 -3	±3.2		±2	±7	±10	±7	±2	±2	+0 -2	+2 -0	+0 -2
12 - 18	+.16 -.12	±.12		±.09	±.25	.38	±.25	±.06	±.09	+0 -.06	+.06 -0	+0 -.06
300 - 450	+4 -3	±3.2		±3	±7	±10	±7	±2	±3	+0 -.2	+2 -0	+0 -2
20 - 24	±.25 -.19	±.19		±.09	±.25	±.38	±.25	±.06	±.09	+0 -.06	+.06 -0	+0 -.06
500 - 600	+6 -5	±4.8		±3	±7	±10	±7	±2	±3	+0 -2	+2 -0	+0 -2
26 - 30	+.25 -.19	±.19		+.12	+.38				±.19
650 - 750	+7 -5	±4.8		±3	±10				±5
32 - 48	±.25 -.19	±.19		±.19	±.38				±.19
800 - 1200	+7 -5	±4.8		±5	±10				±5

Schedule 40 Welded Pipe Fttings Dimensions

NPS (Normal Pipe Size)	O.D. (Outside Diameter)	Ave. I.D. (Inside Diameter)	Mani. WALL	Normal Weight	Maxi. W.P. psi
1/4"	.540	.282	.119	.105	1130
3/8"	.675	.403	.126	.146	920
1/2"	.840	.526	.147	.213	850
3/4"	1.050	.722	.154	.289	690
1"	1.315	.936	.179	.424	630
1-1/4"	1.660	1.255	.191	.586	520
1-1/2"	1.900	1.476	.200	.711	470
2"	2.375	1.913	.218	.984	400
2-1/2"	2.875	2.290	.276	1.500	420
3"	3.500	2.864	.300	2.010	370
3-1/2"	4.000	3.326	.318	2.452	350
4"	4.500	3.786	.337	2.938	320
5"	5.563	4.768	.375	4.078	290
6"	6.625	5.709	.432	5.610	280
8"	8.625	7.565	.500	8.522	250
10"	10.750	9.493	.593	12.635	230
12"	12.750	11.294	.687	17.384	230
14"	14.000	12.410	.750	20.852	220
16"	16.000	14.213	.843	26.810	220
18"	18.000	16.014	.937	33.544	220
20"	20.000	17.814	1.031	41.047	220
24"	24.000	21.418	1.218	58.233	210

Schedule 80 Black Welded Fittings Dimensions

NPS (Normal Pipe Size)	O.D. (Outside Diameter)	Ave. I.D. (Inside Diameter)	Mani. WALL	Normal Weight	Maxi. W.P. psi
1/4"	.540	.282	.119	.105	1130
3/8"	.675	.403	.126	.146	920
1/2"	.840	.526	.147	.213	850
3/4"	1.050	.722	.154	.289	690
1"	1.315	.936	.179	.424	630
1-1/4"	1.660	1.255	.191	.586	520
1-1/2"	1.900	1.476	.200	.711	470
2"	2.375	1.913	.218	.984	400
2-1/2"	2.875	2.290	.276	1.500	420
3"	3.500	2.864	.300	2.010	370
3-1/2"	4.000	3.326	.318	2.452	350
4"	4.500	3.786	.337	2.938	320
5"	5.563	4.768	.375	4.078	290
6"	6.625	5.709	.432	5.610	280
8"	8.625	7.565	.500	8.522	250
10"	10.750	9.493	.593	12.635	230
12"	12.750	11.294	.687	17.384	230
14"	14.000	12.410	.750	20.852	220
16"	16.000	14.213	.843	26.810	220
18"	18.000	16.014	.937	33.544	220
20"	20.000	17.814	1.031	41.047	220
24"	24.000	21.418	1.218	58.233	210

Carbon Steel Welded Fittings Working Pressure

Service	Pressure Temperature Limits	Pressure Limits
condensate & Steam	maximam 366^oF (186^oC), minimam 0^oF (-18^oC)	150 psig (1000 kPa)
gases & vapors, Air	maximam 200^oF (93^oC), minimam 0^oF (-18^oC)	150 psig (1000 kPa)
Nonflammable Liquids	maximam 250^oF (121^oC), minimam 0^oF (-18^oC)	350 psig (2300 kPa)

CS ASME B16.9 Fittings Pressure-Temperature Ratings

Pressure-Temperature ratings for ASME B16.9 Welded fittings (psig)
Temperature Ratings		Pressure Class
		150	300
			1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
(^oF)	(^oC)		1/4 - 1 inch.	1 1/4 - 2 inch.	2 1/2 - 3 inch.
-20 to 150	-29 to 66	300	2000	1500	1000
200	93	265	1785	1350	910
250	121	225	1575	1200	825
300	149	185	1360	1050	735
350	177	150	1150	900	650
400	204	-	935	750	560
450	232	-	725	600	475
500	260	-	510	450	385
550	288	-	300	300	300

Factory-Made Wrought Welded Fittings Size Chart Carbon Steel

O.D. or I.D. Diameter	Equivalent Decimal	Nominal Diameter	Typical Threads In Inch
5/16	0.313	1/16	27
13/32	0.405	1/8	27
35/64	0.540	1/4	18
43/64	0.675	3/8	18
27/32	0.840	1/2	14
1-3/64	1.050	3/4	14
1-5/16	1.315	1	11-1/2
1-21/32	1.660	1-1/4	11-1/2
1-29/32	1.900	1-1/2	11-1/2
2-3/8	2.375	2	11-1/2
2-7/8	2.875	2-1/2	8
3-1/2	3.500	3	8
4	4.000	3-1/2	8
4-1/2	4.500	4	8

Searching for a trusted ASME B16.9 Welded Fittings manufacturer in India? buy from oldest Carbon Steel Welded Fittings manufacturers in Mumbai. Check Carbon Steel Welded Fittings, CS Welded Fittings Suppliers

Specialized in Following ASME B16.9 Carbon Steel Welded Pipe Fittings

Standard Carbon Steel Welded Fittings
Carbon Steel 2D Welded Pipe Elbow
Carbon Steel 3D Welded Elbow
Welded Carbon Steel Pipe Fittings Wholesaler
CS Welded Pipe Fittings Supplier
Stockist of Carbon Steel Welded Fittings
Buy Carbon Steel Welded Fittings
CS Welded Fittings Manufacturers in Mumbai
Carbon Steel Industrial Welded Fittings
ASTM A234 CS Welded Fittings Manufacturer
A234 Gr.WPB Carbon Steel Welded Equal Tee
CS Welded Fittings at Best Price In India
Low Temperature Carbon Steel A420 Welded Unequal Tee
High Yield CS A860 Welded Cross
Carbon Steel ASTM A234 Welded Fittings Suppliers
Carbon Steel Welded 90 Deg. LR Elbow
Carbon Steel Long Radius Welded Elbow Dealer

Exporter of Carbon Steel Welded Fittings
Carbon Steel 5D Welded Elbow
Carbon Steel 10D Welded Pipe Elbow
Carbon Steel 45 Deg Short Radius Welded Elbow
A860 High-Yield Carbon Steel Welded Pipe Cap Suppliers
Carbon Steel Dimensions Welded Fittings ASME B16.9
A234 CS Weld 180° Return Bend Supplier
CS ANSI/ASME B16.9 Welded Pipe Fittings
Carbon Steel Welded Fittings Manufacturer In India
ASTM A420 WPL3 LTCS Weld Concentric Reducer
A420 Low Temperature Steel Weld Eccentric Reducer
CS Welded Reducing Cross Manufacturer
Carbon Steel Welded Short Radius Elbow
Carbon Steel Welded Long Stub Ends
Carbon Steel Welded Short Stub Ends
Carbon Steel Welded Fittings Supplier in India
Supplier of Carbon Steel 180° SR Welded Elbow

Carbon Steel Welded Pipe Fittings Price List

astm a234 wpb carbon steel welded fittings	FOB Price: US$ 0.60 - 81.00 / Piece
astm a420 wpl6 low temperature steel welded pipe fittings	FOB Price: US$ 6.00 - 200.00 / Piece
low temperture carbon steel sa420 wpl3 welded Fittings	FOB Price: US$ 5.00 - 8.00 / Piece
carbon steel asme b16.9 welded pipe fittings	FOB Price: US$ 2.00 - 3.00 / Piece
welded pipe fittings high yield carbon steel	FOB Price: US$ 18.00 / 200.00 Piece
carbon steel welded equal and unequal cross	FOB Price: US$ 6.00 - 500.00 / Piece
ansi b16.9 dimension of cs welded reducing tee	FOB Price: US$ 7.00 - 200.00 / Piece
astm a234 grade wpb carbon steel 90 degree welded pipe bends	FOB Price: US$ 18.00 / 170.00 Piece
carbon steel a234 wpb welded pipe fittings dimensions	FOB Price: US$ 5.70 - 300.00 / Piece
carbon steel sch 40 welded pipe fittings	FOB Price: US$ 6.50 - 150.00 / Piece

Carbon Steel Welded Fittings Industrial Applications

Oil & Gas Industry
Power Plants
Refinery Industry
Petrochemical
Marine Industry
Fire Fighting
HVAC & MEP

Are you in search of a reliable manufacturer of Carbon Steel Welded Fittings in Mumbai, India? We offer high-quality Carbon Steel Welded Pipe Fittings at competitive prices.
