What are CS Pipe Fittings?
CS Pipe Fittings are made of carbon and iron and are known for their strength and durability. They are also contain with small amounts of manganese, silicon, and copper to enhance their performance.
The dimensions of these fittings adhere to industry standards and are tailored according to nominal pipe sizes, providing a precise fit for various applications.
A distinctive characteristic of carbon steel, which sets them apart from all other steels that is its superior resistance to corrosion and wear. That makes Carbon Steel Buttweld Pipe Fittings a suitable choice for high pressure applications.
Available in various shapes, sizes, and wall thicknesses, our fittings adhere to the ASME B16.9 standard, catering to diverse dimensions and pressure ratings. For example our schedule 80 buttweld fittings, known for their more robust walls, have a higher level of resistance to stress and leakage which makes them suitable for applications with high pressure. However our smaller and lighter schedule 10 fittings, characterized by their thin walls, are great for situations where weight is an issue.
We at Rajdhan Metal, we prioritize the durability, resistance to pressure, and corrosion resistance with our pipe fittings in carbon steel. We are committed to providing high-quality fittings that are built to withstand the stress of different industrial projects
Essential Factors in Selecting CS Pipe Fittings
Choosing the right fitting requires careful consideration of several factors, including grade, size, connection type, and pressure rating. These factors significantly affect the lifespan and performance of fittings. Our Carbon steel buttweld pipe fittings include elbows, tees, reducers, and caps - with elbows being the most frequently used piece to alter pipe flow direction; while tees join two or more pipes together and reducers connect pipes of different sizes; finally caps are used to seal off pipe ends.
To assist our customers with the selection process, we provide an extensive carbon steel pipe fittings catalogue pdf. This catalogue, which includes a variety of fittings for pipes, was made to make the decision-making process much easier. You can trust Rajdhan Metal for fittings that guarantee the highest performance and durability for your pipe systems.
Carbon Steel Pipe Fittings Specifications
| Specifications | ASTM A234 WPB, A420, A860 / ASME SA234, SA420, SA860 / ASME SA403 |
| Size | Seamless Buttweld Fittings: 1/2" - 10" Welded Pipe Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D,
7D-40D Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Key markets and industries |
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Types of Carbon Steel Pipe Fittings
Check the schedule 40 carbon steel buttweld pipe fittings dimensions chart and price list in India.
Carbon Steel Pipe Fittings Dimensions
| Normal Pipe Size For (NPS) For ANSI/ASME B16.9 | 10S Schedule | 40S Schedule | 80S Schedule | ||||||
| Buttweld 90 Degree Elbow | Buttweld 45 Degree Elbow | B16.9 Buttweld Equal Tee | Buttweld 90 Deg Elbows | Buttweld 45 Deg Elbows | B16.9 Buttweld Equal Tee | Buttweld 90 Degree Elbow | Buttweld 45 Degree Elbow | ASME B16.9 Buttweld Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
| Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 | 10S Schedule | 40S Schedule | 80S Schedule | ||||||
| Buttweld Con Pipe Reducer | Buttweld Ecc Pipe Reducer | Buttweld Unequal And Reducing Tee | Buttweld Con Pipe Reducer | Buttweld Ecc Pipe Reducer | Buttweld Unequal And Reducing Tee | Buttweld Con Pipe Reducer | Buttweld Ecc Pipe Reducer | Buttweld Unequal And Reducing Tee | |
| 40x.25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.26 | 0.76 | 0.34 | 0.34 | 0.90 |
| 50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 0.40 | 1.10 | 0.54 | 0.54 | 1.37 |
| 50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 0.45 | 1.15 | 0.59 | 0.59 | 1.43 |
| 80x.50 | 0.55 | 0.55 | 1.56 | 1.00 | 1.00 | 2.91 | 1.79 | 1.79 | 3.91 |
| 100x50 | 0.78 | 0.78 | 2.94 | 1.50 | 1.50 | 4.48 | 1.95 | 1.95 | 6.55 |
| 100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 1.74 | 4.64 | 2.33 | 2.33 | 6.79 |
| 150x80 | 1.82 | 1.82 | 6.86 | 3.95 | 3.95 | 9.68 | 5.51 | 5.51 | 11.57 |
| 150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 4.07 | 11.94 | 5.96 | 5.96 | 11.97 |
| 200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 6.55 | 17.98 | 9.23 | 9.23 | 24.18 |
| 200x150 | 3.19 | 3.19 | 14.08 | 6.74 | 6.74 | 18.82 | 10.12 | 10.12 | 25.31 |
Pressure Rating Of Schedule 10 Carbon Steel Pipe Fittings
| Nominal Pipe Size (NPS) | Outside Diameter (in) | Wall Thickness (in) | Water at 70°F (psi) | Air at 70°F (psi) |
|---|---|---|---|---|
| ½ | 0.840 | 0.065 | 300 | 200 |
| ¾ | 1.050 | 0.065 | 250 | 160 |
| 1 | 1.315 | 0.065 | 200 | 130 |
| 1 ¼ | 1.660 | 0.065 | 150 | 100 |
| 1 ½ | 1.900 | 0.065 | 125 | 80 |
| 2 | 2.375 | 0.065 | 100 | 60 |
| 2 ½ | 2.875 | 0.065 | 80 | 50 |
| 3 | 3.500 | 0.065 | 70 | 40 |
| 4 | 4.500 | 0.065 | 50 | 30 |
| 5 | 5.563 | 0.065 | 40 | 25 |
| 6 | 6.625 | 0.065 | 30 | 20 |
Schedule 40 Carbon Steel Pipe Fittings Dimensions
| Schedule 40 Pipe Fittings Dimensions | |||||
| NPS | Outside Diameter | Ave. Inside Daimeter |
Minimum WALL |
Normal Weight Chart |
Maximum W.P. psi |
| 1/4" | .540 | .344 | .088 | .086 | 780 |
| 3/8" | .675 | .473 | .091 | .115 | 620 |
| 1/2" | .840 | .602 | .109 | .170 | 590 |
| 3/4" | 1.050 | .804 | .113 | .226 | 480 |
| 1" | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4" | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2" | 1.900 | 1.590 | .145 | .537 | 330 |
| *2" | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2" | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3" | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2" | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4" | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5" | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6" | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8" | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10" | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12" | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14" | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16" | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18" | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20" | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24" | 24.000 | 22.544 | .687 | 33.652 | 120 |
Schedule 80 Carbon Steel Pipe Fittings Pressure Ratings
| Nominal Pipe Size (NPS) | Outside Diameter (in) | Wall Thickness (in) | Water at 70°F (psi) | Air at 70°F (psi) |
|---|---|---|---|---|
| ½ | 0.840 | 0.133 | 3,000 | 2,000 |
| ¾ | 1.050 | 0.145 | 2,500 | 1,600 |
| 1 | 1.315 | 0.154 | 2,000 | 1,300 |
| 1 ¼ | 1.660 | 0.179 | 1,800 | 1,200 |
| 1 ½ | 1.900 | 0.191 | 1,500 | 1,000 |
| 2 | 2.375 | 0.216 | 1,200 | 800 |
| 2 ½ | 2.875 | 0.248 | 1,000 | 600 |
| 3 | 3.500 | 0.280 | 800 | 500 |
| 4 | 4.500 | 0.314 | 600 | 400 |
| 5 | 5.563 | 0.344 | 500 | 300 |
| 6 | 6.625 | 0.375 | 400 | 250 |
Looking for carbon steel pipe fittings price in India? Get a free quote from Rajdhan Metal, one of the renowned carbon steel pipe fitting suppliers in Mumbai.
Specialized in Following ASME B16.9 Carbon Steel Fittings
- Carbon Steel Buttweld Elbow
- Carbon Steel Weld Pipe Fittings
- Carbon Steel Weldable Elbows
- Buy Carbon Steel Buttweld Reducer
- 2 inch Black Pipe Fittings Suppliers
- Carbon Steel Industrial Pipe Fittings
- Carbon Steel Buttweld Fittings Manufacturer
- ASME B16.9 Carbon Steel Black Fittings
- Carbon Steel Black Iron Pipe Fittings
- Galvanized Carbon Steel Pipe Fitting
- Low Carbon Steel Pipe Fitting for Piping Connection
- Carbon Steel Pipe Fittings Manufacturers in India
- Stockists of Carbon Steel Seamless Pipe Fittings
- A350 LF2 Low Temperature Steel Pipe Fittings
- High Yield Carbon Steel Pipe Fittings
- Carbon Steel Two Joint Pipe Fittings
- Manufacturers of Pipe Fittings Carbon Steel
- 2 Inch Carbon Steel Pipe Fittings
- Carbon Steel 4 inch Pipe Fitting
- Carbon Steel Pipe Bend Wholesaler
- Carbon Steel 45 Deg Elbow Stockholder
- Carbon Steel Long Radius Elbow
- Carbon Steel weld on Pipe Fittings
- Carbon Steel Short Radius Elbow
- Carbon Steel Two Halve Butt weld Fittings
- Carbon Steel Schedule 40 Weld Fittings
- Carbon Steel Buttweld 90 Degree Elbows
- Schedule 10 Carbon Steel Pipe Fittings
- Exporter of CS Schedule 80 Pipe Fittings
- Manufacturers of Carbon Steel Pipe Elbow
- Carbon Steel Large Diameter Pipe Fittings
- Carbon Steel BW Pipe Fittings Dealer
- High Carbon Steel sch 80 6 inch Fittings
- Carbon Steel Welding Elbow Distributor
Carbon Steel Pipe Fittings Price List
| Carbon Steel Pipe Fittings Price Per Piece | Price in INR | Price in USD | Price in UAE Dirham |
| CARBON STEEL ELBOW PRICE LIST | |||
| CARBON STEEL SEAMLESS PIPE FITTING (90 ELBOW ASTM A234 WPB B16.9 SMLS SIZE 3/4 SCH40) | 35 | USD $ 0.49 | UAE Dirham 1.81 |
| CARBON STEEL BUTT WELDING FITTINGS: 90 DEGREE ELBOW LONG RADIUS | 137 | USD $ 1.92 | UAE Dirham 7.07 |
| PIPE FITTINGS CARBON STEEL : 90 DEGREE ELBOW (LR), 10MM, SA420 | 99 | USD $ 1.39 | UAE Dirham 5.11 |
| CARBON STEEL : 90 DEGREE ELBOW (SR), SHORT RADIUS ELBOW THK 10.97MM | 154 | USD $ 2.16 | UAE Dirham 7.95 |
| ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40 CARBON STEEL | 65 | USD $ 0.91 | UAE Dirham 3.35 |
| CARBON STEEL 45 DEGREE ELBOW (SR), SCH 80, SA234 GR.WPB | 78 | USD $ 1.10 | UAE Dirham 4.02 |
| CARBON STEEL : LONG RADIUS 45 DEGREE ELBOW (LR), SCH 40/STD, A234 WPB | 77 | USD $ 1.08 | UAE Dirham 3.97 |
| CARBON STEEL FITTING (45 ELBOW ASTM A234 WPB B16.9 SMLS SIZE 1.1/4 SCH40) | 35 | USD $ 0.49 | UAE Dirham 1.81 |
| B16 9 CARBON STEEL TEE PRICE LIST | |||
| CARBON STEEL EQUAL TEE, BUTTWELD, SCH. 80, SEAMLESS, ASME B16.9 | 36 | USD $ 0.47 | UAE Dirham 1.70 |
| CARBON STEEL EQUAL TEE, BUTTWELD, SCH. 80, SEAMLESS, ASME B16.9 | 36 | USD $ 0.47 | UAE Dirham 1.70 |
| 15MM B16.9 CARBON STEEL BW SCH-40 REDUCING TEE PRICE | 49 | USD $ 0.69 | UAE Dirham 2.53 |
| CARBON STEEL BW SCH-40 UNEQUAL TEE 4” X 2” X SCH 40 | 30 | USD $ 0.49 | UAE Dirham 1.71 |
| SCH-80 CARBON STEEL PIPE EQUAL TEE 2" X 4 | 30 | USD $ 0.49 | UAE Dirham 1.71 |
| CARBON STEEL STUB END PRICE LIST | |||
| PIPE FITTING CARBON STEEL STUB END STD WT-FITTING BUTTWELD TYPE-LAP JOINT STUB END | 994 | USD $ 13.96 | UAE Dirham 51.29 |
| CARBON STEEL REDUCER PRICE LIST | |||
| 4 X 2 X SCH 80 X SCH 160 CARBON STEEL CONCENTRIC REDUCER -FITTING BUTTWELD | 77 | USD $ 1.08 | UAE Dirham 3.97 |
| PIPE FITTING - 4 X 2 X SCH 80 X SCH 160 CARBON STEEL ECCENTRIC REDUCER | 62.10 | USD $ 0.941 | UAE Dirham 2.53 |
| B16.9 CARBON STEEL CAP PRICE LIST | |||
| BUTT WELDING PIPE FITTINGS - CARBON STEEL CAP STD 2" X SCH 80 | 52.10 | USD $ 0.931 | UAE Dirham 2.43 |
| CARBON STEEL FITTING - PIPE CAP STD 3/4" X SCH 160 | 137 | USD $ 1.92 | UAE Dirham 7.07 |
| STD 11/4 X SCH 40 CARBON STEEL FITTING BW END CAP | 137 | USD $ 1.92 | UAE Dirham 7.07 |
Carbon Steel Pipe Fittings Weight Chart
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y |
Wall Thickness T (Pipe Elbow Schedule) |
45 Deg. Elbow LR Centre to Face B | 90 Deg. Elbow LR Weight | 45 Deg. Elbow LR Weight |
90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow SR Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | mm | Schedule | mm | kg | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.08 | 0.04 | 38.1 | – |
| 3.73 | X.S | 15.9 | 0.10 | 0.05 | 38.1 | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.08 | 0.04 | 28.6 | – |
| 3.91 | X.S | 11.1 | 0.11 | 0.05 | 28.6 | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.15 | 0.09 | 38.1 | 0.11 |
| 4.55 | X.S | 22.2 | 0.19 | 0.11 | 38.1 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.28 | 0.14 | 47.6 | 0.18 |
| 4.85 | X.S | 25.4 | 0.39 | 0.2 | 47.6 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.4 | 0.2 | 57.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.5 | 0.25 | 57.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.72 | 0.36 | 76.2 | 0.5 |
| 5.54 | X.S | 34.9 | 1.0 | 0.5 | 76.2 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 1.46 | 0.73 | 95.2 | 0.95 |
| 7.01 | X.S | 44.4 | 1.82 | 0.91 | 95.2 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 2.18 | 1.1 | 114.3 | 1.45 |
| 7.62 | X.S | 50.8 | 2.86 | 1.45 | 114.3 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 4.2 | 2.1 | 152.4 | 2.8 |
| 8.56 | X.S | 63.5 | 5.7 | 2.9 | 152.4 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 6.8 | 3.4 | 190.0 | 4.8 |
| 9.5 | X.S | 79.4 | 10.0 | 5.0 | 190.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 10.1 | 5.1 | 229.0 | 6.8 |
| 10.97 | X.S | 95.2 | 15.3 | 7.7 | 229.0 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 20.4 | 10.2 | 305.0 | 13.6 |
| 12.7 | X.S | 127.0 | 30.9 | 15.5 | 305.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 36.1 | 18.1 | 381.0 | 24.1 |
| 12.7 | X.S | 159.0 | 48.8 | 24.4 | 381.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 53.1 | 26.6 | 457.0 | 35.4 |
| 12.7 | X.S | 190.0 | 70.0 | 35.0 | 457.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 68.1 | 34.1 | 533.0 | 45.4 |
| 12.7 | X.S | 222.0 | 90.0 | 45.0 | 533.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 89.3 | 45.0 | 610.0 | 59.5 |
| 12.7 | X.S | 254.0 | 118.0 | 59.0 | 610.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 113.0 | 56.5 | 686.0 | 75.6 |
| 12.7 | X.S | 286.0 | 150.0 | 75.0 | 686.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 140.0 | 85.0 | 762.0 | 93.5 |
| 12.7 | X.S | 318.0 | 186.0 | 112.5 | 762.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 203.0 | 101.5 | 914.0 | 135.0 |
| 12.7 | X.S | 381.0 | 269.0 | 134.5 | 914.0 | 179.0 | |||
| Buttweld Tee and Cap Nominal Size |
Pipe Tee and Cap Wall Thickness T |
Pipe Tee and Cap Outside Diameter Y |
Buttweld Cap End to End |
Buttweld Cap Weight |
Buttweld Tee Dimensions (C and M) |
Buttweld Tee Weight |
||
|---|---|---|---|---|---|---|---|---|
| mm | in | mm | Schedule | mm | mm | kg | mm | mm |
| 15 | 1/2” | 2.78 | STD | 21.3 | 25.4 | 0.58 | ||
| 3.73 | X.S | 25.4 | 0.21 | |||||
| 20 | 3/4” | 2.87 | STD | 26.7 | 28.6 | 0.21 | ||
| 3.91 | X.S | 28.6 | 0.27 | |||||
| 25 | 1” | 3.38 | STD | 33.4 | 38.1 | 0.1 | 38.1 | 0.34 |
| 4.55 | X.S | 38.1 | 0.14 | 38.1 | 0.43 | |||
| 32 | 11/4” | 3.56 | STD | 42.2 | 38.1 | 0.14 | 47.6 | 0.64 |
| 4.85 | X.S | 38.1 | 0.18 | 47.6 | 0.75 | |||
| 40 | 11/2” | 3.68 | STD | 48.3 | 38.1 | 0.18 | 57.1 | 0.95 |
| 5.08 | X.S | 38.1 | 0.23 | 57.1 | 1.13 | |||
| 50 | 2” | 3.91 | STD | 60.3 | 38.1 | 0.27 | 63.5 | 1.45 |
| 5.54 | X.S | 38.1 | 0.32 | 63.5 | 1.72 | |||
| 65 | 21/2” | 5.16 | STD | 73.0 | 38.1 | 0.41 | 76.2 | 2.45 |
| 7.01 | X.S | 38.1 | 0.45 | 76.2 | 2.95 | |||
| 80 | 3” | 5.49 | STD | 88.9 | 50.8 | 0.64 | 85.7 | 3.45 |
| 7.62 | X.S | 50.8 | 0.82 | 85.7 | 4.3 | |||
| 100 | 4” | 6.02 | STD | 114.3 | 63.5 | 1.13 | 105.0 | 5.7 |
| 8.56 | X.S | 63.5 | 1.54 | 105.0 | 7.3 | |||
| 125 | 5” | 6.65 | STD | 141.3 | 76.2 | 1.91 | 124.0 | 9.1 |
| 9.5 | X.S | 76.2 | 2.59 | 124.0 | 11.8 | |||
| 150 | 6” | 7.11 | STD | 168.3 | 88.9 | 2.95 | 143.0 | 13.6 |
| 10.97 | X.S | 88.9 | 4.1 | 143.0 | 19.0 | |||
| 200 | 8” | 8.18 | STD | 219.1 | 101.6 | 5.0 | 178.0 | 25.0 |
| 12.7 | X.S | 101.6 | 7.3 | 178.0 | 33.5 | |||
| 250 | 10” | 9.27 | STD | 273.0 | 127.0 | 9.1 | 216.0 | 41.0 |
| 12.7 | X.S | 127.0 | 12.0 | 216.0 | 54.0 | |||
| 300 | 12” | 9.52 | STD | 323.9 | 152.4 | 13.6 | 254.0 | 57.0 |
| 12.7 | X.S | 152.4 | 17.0 | 254.0 | 77.0 | |||
| 350 | 14” | 9.52 | STD | 355.6 | 165.1 | 15.9 | 279.0 | 73.0 |
| 12.7 | X.S | 165.1 | 21.0 | 279.0 | 93.0 | |||
| 400 | 16” | 9.52 | STD | 406.4 | 178.8 | 20.0 | 305.0 | 91.0 |
| 12.7 | X.S | 178.8 | 26.0 | 305.0 | 120.0 | |||
| 450 | 18” | 9.52 | STD | 457.0 | 203.2 | 26.0 | 343.0 | 127.0 |
| 12.7 | X.S | 203.2 | 34.0 | 343.0 | 165.0 | |||
| 500 | 20” | 9.52 | STD | 508.0 | 228.6 | 33.0 | 381.0 | 227.0 |
| 12.7 | X.S | 228.6 | 43.0 | 381.0 | 270.0 | |||
| 600 | 24” | 9.52 | STD | 610.0 | 266.7 | 46.0 | 432.0 | 345.0 |
| 12.7 | X.S | 266.7 | 61.0 | 432.0 | 430.0 | |||
Carbon Steel Material / Grade
| Material | Fitting |
| Carbon Steel | A234 Gr WPA |
| A234 Gr WPB | |
| A234 Gr WPC | |
| Carbon Steel High-Temp | A234 Gr WP1 |
| A234 Gr WP11 | |
| A234 Gr WP12 | |
| A234 Gr WP22 | |
| A234 Gr WP5 | |
| A234 Gr WP9 | |
| Carbon Steel Low-Temp | A420 Gr WPL6 |
| A420 Gr WPL3 |
Carbon Steel Pipe Fittings Standards
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing Buttweld Pipe Fitting tees, caps, reducers |
Carbon Steel Pipe Fittings Manufacturing Process

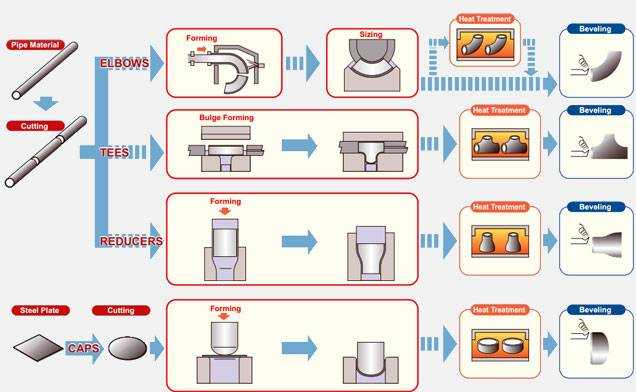

The process begins with selecting the appropriate grade of carbon steel material, standards, and special properties. There are various buttweld fitting manufacturing processes that want to manufacture elbows, tees, reducers, caps, etc. The carbon steel material is cut to the required shape and size and then heated to a specific temperature for forming. The heated material is then shaped into the desired fitting using one of the manufacturing processes such as forging, butt welding, seamless pipe forming, or welded pipe forming. The finished fitting is inspected and tested to ensure that it meets the required industry standards for dimensions, wall thickness, surface finish, and mechanical properties.

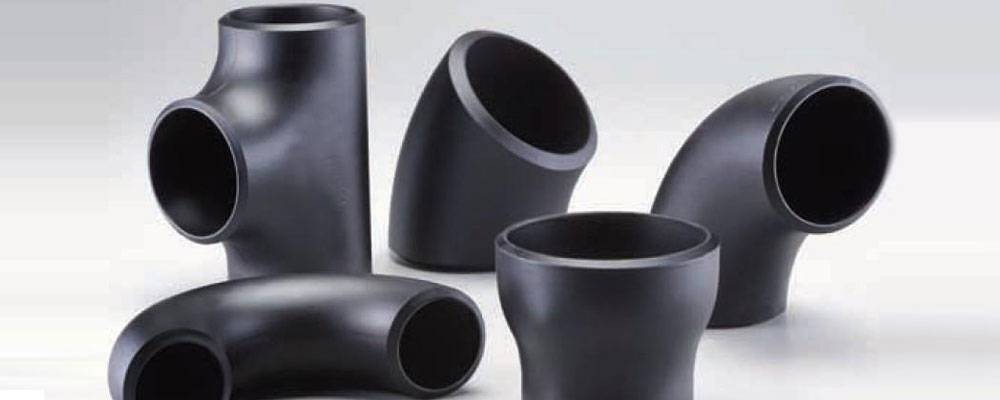

Looking for Carbon Steel Black Pipe Fittings Suppliers in Mumbai? We sell high-quality CS Pipe Fittings based on Custom Pipe Fitting Drawings and Designs.
