Carbon Steel Socket weld Union
Carbon Steel Forged Socketweld Union, Carbon Steel SW Pipe Union, Carbon Steel Socket weld Union Supplier in Mumbai, Carbon Steel Socket weld Union Manufacturers in India.
Rajdhan Metal is a manufacturer of premium Carbon Steel socket weld Union. They specialize in this area and provide Union manufactured to their consumers worldwide in a variety of standards and non-standard measurements. The criteria covered by this Carbon Steel socket weld Union include tolerances, ratings, dimensions, labelling, sizes, grades, and material.
Table of Content
- What is a Carbon Steel Socket weld Union?
- Carbon Steel Socket weld Union Specification
- Carbon Steel Socket weld Union Dimensions
- Specialized in Following ASME B16.11 Carbon Steel Socket weld Union
- Carbon Steel Socket weld Union Price List
- Carbon Steel Socket weld Union Weight Chart
- Carbon Steel SW Union Industrial Applications
Carbon Steel Socket Weld Unions Manufacturer, Supplier of Carbon Steel SW Union, Black Steel Socket weld Union Suppliers in India.

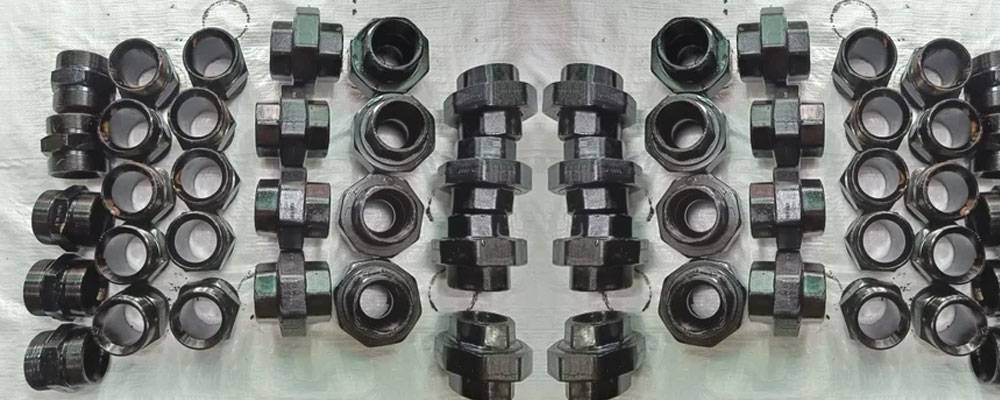

What is a Carbon Steel Socket weld
Union?
A type of fitting known as a Carbon Steel socket weld Union may be created to
connect two pipes. Additionally, the connected pipe can be removed without deforming it. The ability
to gather or disassemble pipe associations of various widths is provided by socket weld pipe unions.
Using a Carbon Steel socket weld Union has various benefits:
- The cost of a Carbon Steel socket weld Union is quite low.
- Every Carbon Steel socket weld Union on the market today is simple to install.
- The junction between two pipes might be simply removed when a union is employed.
- Additionally, multiple socket weld union dimensions can be utilized to join two separate pipes of varied sizes depending on the ultimate usage or the buyer's order.
The Carbon Steel socket weld Union has the following characteristics:
- A Carbon Steel socket weld Union provides great corrosion resistance. When these socket weld unions are utilized in piping systems, this quality is crucial. Since the alloy used in these fittings has great corrosion resistance, it can easily survive damage from oxidation and chemical reactions.
- Another crucial aspect of a Carbon Steel socket weld Union is that they frequently have a substantially longer lifespan. Longer service life and improved corrosion resistance translate to cost-effectiveness.
- Additionally, Carbon Steel socket weld Union provides excellent weldability.
- Consequently, Carbon Steel socket weld Union can be welded with materials other than just ones that are identical to them. Additionally, the union includes strong formability in terms of its advantages.
Price List of Carbon Steel Socket-weld Union, Black Socket weld Union Dimensions, ASME B16.11 3000# CS Socket Weld Union Exporter in India, A350 Gr LF2 LTCS Socket weld Forged Unions.
Carbon Steel Socket weld Union Specifications
| Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Supplier, exporter and distributor of black forged steel SW unions in Mumbai, India. Check socket weld union dimensions as per ASME B16.11

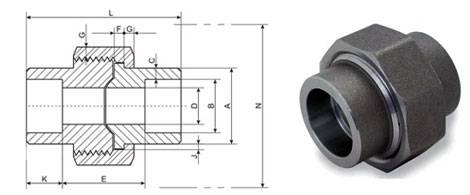

MSS SP-83 Carbon Steel Socket weld Union Dimensions
| Nom | Pipe | Socket | Socket | Water | Laying | Male | Nut | Threads | Bearing | Depth | Length | Clear |
| Pipe | End | Bore | Wall | Way | Length | Flange | (Min.) | Per | (Min.) | of | Assem. | Assem. |
| Size | (Min.) | Dia. | (Min.) | Bore | (Min.) | 25.4mm | Socket | Nom. | Nut | |||
| (Min.) | ||||||||||||
| A | B | C | D | E | F | G | H | J | K | L | N | |
| 1/8″ | 21.8 | 11.18 | 3.18 | 7.59 | 22.4 | 3.18 | 3.18 | 16 | 1.24 | 9.7 | 41.4 | 50.8 |
| 10.67 | 6.07 | 19.1 | ||||||||||
| 1/4″ | 21.8 | 14.61 | 3.3 | 10.01 | 22.4 | 3.18 | 3.18 | 16 | 1.24 | 9.7 | 41.4 | 50.8 |
| 14.1 | 8.48 | 19.1 | ||||||||||
| 3/8″ | 25.9 | 18.03 | 3.51 | 13.28 | 26.9 | 3.43 | 3.43 | 14 | 1.37 | 9.7 | 46 | 55.9 |
| 17.53 | 11.76 | 20.6 | ||||||||||
| 1/2″ | 31.2 | 22.23 | 4.09 | 16.56 | 26.9 | 3.68 | 3.68 | 14 | 1.5 | 9.7 | 49 | 58.4 |
| 21.73 | 15.04 | 20.6 | ||||||||||
| 3/4″ | 37.1 | 27.56 | 4.27 | 21.69 | 31.8 | 4.06 | 4.06 | 11 | 1.68 | 12.7 | 56.9 | 66 |
| 27.05 | 20.17 | 25.4 | ||||||||||
| 1″ | 45.5 | 34.29 | 4.98 | 27.41 | 34.3 | 4.57 | 4.45 | 11 | 1.85 | 12.7 | 62 | 78.7 |
| 33.78 | 25.88 | 26.2 | ||||||||||
| 1-1/4″ | 54.9 | 43.05 | 5.28 | 35.81 | 40.6 | 5.33 | 5.21 | 11 | 2.13 | 12.7 | 71.1 | 94 |
| 42.55 | 34.29 | 32.5 | ||||||||||
| 1-1/2″ | 61.5 | 49.15 | 5.54 | 41.66 | 42.2 | 5.84 | 5.59 | 10 | 2.31 | 12.7 | 76.5 | 111.8 |
| 48.64 | 40.13 | 34 | ||||||||||
| 2″ | 75.2 | 61.62 | 6.05 | 53.26 | 45.5 | 6.6 | 6.35 | 10 | 2.69 | 15.7 | 86.1 | 132.1 |
| 61.11 | 51.74 | 37.3 | ||||||||||
| 2-1/2″ | 91.7 | 74.45 | 7.67 | 64.24 | 61.7 | 7.49 | 7.11 | 8 | 3.07 | 15.7 | 102.4 | 149.9 |
| 73.81 | 61.19 | 52.1 | ||||||||||
| 3″ | 109.2 | 90.42 | 8.31 | 79.45 | 63.8 | 8.26 | 8 | 8 | 3.53 | 15.7 | 109 | 175.3 |
| 89.79 | 76.4 | 53.6 |
Class 3000 Socket Weld Union Dimensions
| CLASS 3000 Socket Weld Union | ||||||||||||
| PIPE SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| A | 1.375 | 1.375 | 1.625 | 1.813 | 2.250 | 2.562 | 3.063 | 3.438 | 4.063 | 4.875 | 5.688 | 6.875 |
| B | 1.688 | 1.688 | 1.813 | 1.938 | 2.250 | 2.438 | 2.813 | 3.000 | 3.375 | 4.031 | 4.313 | 8.000 |
| C | 0.865 | 0.865 | 1.025 | 1.235 | 1.465 | 1.795 | 2.165 | 2.425 | 2.965 | 3.615 | 4.305 | 5.415 |
| D | 0.426 | 0.560 | 0.693 | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 | 2.910 | 3.536 | 4.545 |
| E | 0.813 | 0.813 | 0.938 | 0.938 | 1.125 | 1.188 | 1.438 | 1.500 | 1.625 | 2.250 | 2.313 | 5.000 |
| LBS | 0.40 | 0.38 | 0.52 | 0.73 | 1.19 | 1.66 | 2.66 | 3.42 | 5.36 | 9.12 | 12.58 | 17.50 |
Class 6000 Socket Weld Union Dimensions
| CLASS 6000 Socket Weld Union | ||||||||||||
| PIPE SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| A | 1.375 | 1.625 | 1.813 | 2.250 | 2.562 | 3.063 | 3.438 | 4.063 | 4.875 | 5.688 | 6.875 | — |
| B | 1.688 | 1.813 | 1.938 | 2.250 | 2.438 | 2.813 | 3.000 | 3.375 | 4.031 | 4.313 | 8.000 | — |
| C | 0.865 | 1.025 | 1.235 | 1.465 | 1.795 | 2.165 | 2.425 | 2.965 | 3.615 | 4.305 | 5.415 | — |
| D | 0.426 | 0.560 | 0.693 | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 | 2.910 | 3.536 | — |
| E | 0.813 | 0.813 | 0.938 | 0.938 | 1.125 | 1.188 | 1.438 | 1.500 | 1.625 | 2.250 | 5.750 | — |
| LBS | 0.48 | 0.56 | 0.75 | 1.35 | 2.01 | 3.17 | 3.92 | 6.60 | 10.12 | 14.00 | 40.891 | — |
Class 9000 Socket Weld Union Dimensions
| CLASS 9000 Socket Weld Union | ||||||||||||
| PIPE SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 |
| A | 1.750 | 2.000 | 2.250 | 2.563 | 3.063 | 3.688 | 4.313 | 5.000 | 5.750 | 6.875 | — | — |
| B | 2.500 | 2.563 | 2.938 | 3.250 | 3.750 | 4.000 | 4.625 | 4.813 | 5.563 | 6.25 | — | — |
| C | 1.000 | 1.250 | 1.500 | 1.750 | 2.250 | 2.500 | 3.000 | 3.625 | 4.250 | 5.000 | — | — |
| D | 0.426 | 0.560 | 0.693 | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 | 2.910 | — | — |
| E | 1.720 | 1.688 | 1.938 | 2.000 | 2.375 | 2.375 | 3.000 | 2.938 | 3.188 | 3.750 | — | — |
| LBS | 0.89 | 1.045 | 1.955 | 3.29 | 5.34 | 7.99 | 12.73 | 18.34 | 26.36 | 37.07 | — | — |
Rajdhan Metal offers high-quality and cost-effective carbon steel socketweld union in India. View socket weld union weight chart and price list.
Specialized in Following ASME B16.11 Carbon Steel Socket weld Union
- ASME B16.11 CS Socket welding Union
- Carbon Steel SW Union for Piping Connection
- Carbon Steel Socket Weld Pipe Union
- Carbon Steel Class 6000 SW Unions
- 3000lb, Carbon Steel SW Union Stockholder
- Stockists of Carbon Steel Socket Weld Unions
- Low Carbon Steel Socket weld Union
- Carbon Steel Socket weld Union Suppliers
- Carbon Steel Industrial Forged Socketweld Union
- Carbon Steel Socket weld Unions Trader
- CS Socket weld Hex Union in Mumbai
- 1" Galvanised Carbon Steel Socket weld Union
- Low Temperature Steel A350 LF2 SW Union
- Buy Black Steel 2" Socket weld Unions
- Black Iron Socketweld Unions Stockist
- Carbon Steel Socket weld Forged Union
- Carbon Steel Socket weld Union in India
- Carbon Steel Black Union Socket weld
- Black Iron SW Unions Distributor
- Carbon Steel Socket Weld Union Stock
- Carbon Steel ASTM A105 Socket weld Union
- Carbon Steel SW Forged Union Supplier
- Manufacturers of CS Socket weld Unions
- Carbon Steel Forged Socket Weld Union
- High Carbon Steel S/W Unions 6000#
- Carbon Steel Socket weld Forged Unions
- CS Forged High Pressure Socket weld Union
- Carbon Steel Socket welding Unions Wholesaler
- Cast Iron Socket weld Union Dealer
- Exporter of Carbon Steel Socket Weld Union
- Socket Weld Forged Carbon Steel Union
- ASME B16.11 Black Steel SW Union Fitting
Carbon Steel Socket weld Union Price List
| SIZE (in MM) | SIZE (in Inches) | Price (in INR) |
| 8MM | 1/4" | 240.00 |
| 10MM | 3/8" | 244.00 |
| 15MM | 1/2" | 259.00 |
| 20MM | 3/4" | 434.00 |
| 25MM | 1" | 656.00 |
| 32MM | 1-1/4" | 1009.00 |
| 40MM | 1-1/2" | 1305.00 |
| 50MM | 2" | 1912.00 |
ASME B16.11 Carbon Steel Socket weld Union Weight Chart
| Size (in) | Class 3000 | Class 6000 |
| 1/2 | 0.23 lbs | 0.28 lbs |
| 3/4 | 0.35 lbs | 0.49 lbs |
| 1 | 0.55 lbs | 0.82 lbs |
| 1 1/4 | 1.02 lbs | 1.44 lbs |
| 1 1/2 | 1.46 lbs | 2.07 lbs |
| 2 | 2.50 lbs | 3.53 lbs |
| 2 1/2 | 4.58 lbs | 6.47 lbs |
| 3 | 6.43 lbs | 9.10 lbs |
| 4 | 13.16 lbs | 18.63 lbs |
