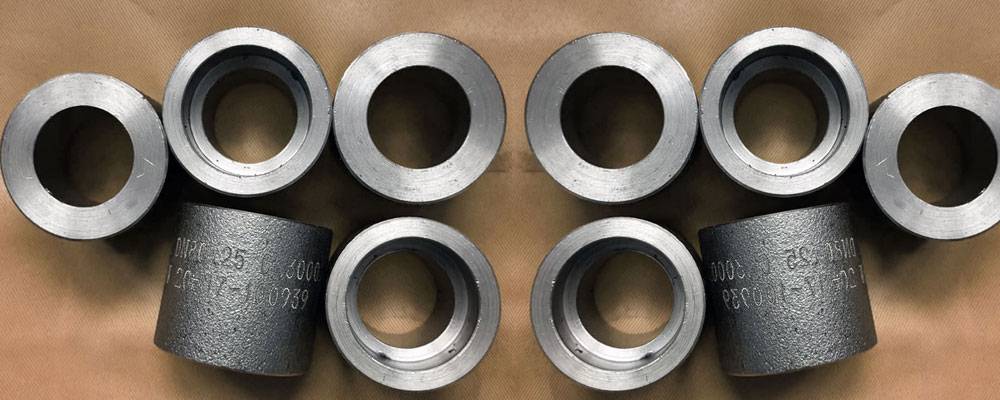

Rajdhan Metal shines as a leading, ISO-certified manufacturer and supplier of full coupling socket weld on national and international fronts. Specializing in the seamless integration of small bore pipes, our Full Couplings are meticulously crafted to ensure a secure and effective piping network. Unlike threaded couplings, Socket Weld Full Couplings do not have precision-engineered threaded ends. Instead, they are designed for piping systems where pipes are inserted into the coupling's recessed area (or socket) and then welded around the joint. This method provides a high-integrity seal and is preferred for its enhanced strength and leak-proof connection, which is crucial for high-pressure applications.
We are committed to delivering top-tier ASME B16.11 Forged Socket Weld Full Couplings at competitive rates. Tailored to meet our clients' diverse needs, these couplings are available in various sizes and thicknesses. They adhere to the ASME B16.11 Standard, ensuring exacting tolerances, ratings, and material requirements for seamless compatibility with a broad range of systems, including those specified in the ASME Boiler and Pressure Vessel Code and B31 Piping Codes.
Our offerings in Class 3000 lbs, 6000 lbs, and 9000 lbs ensure that our Forged Socket Weld Full Couplings provide a dependable and secure connection for pipes of varying dimensions. Ideal for small-diameter pipelines operating at moderate to high temperatures and pressures, choosing our solutions guarantees a commitment to unparalleled quality and service excellence in every product. Opt for our expertise for your piping essentials and embrace the confidence of impeccable quality and unmatched expertise.
Rajdhan Metal is a certified manufacturer of full coupling with ISO accreditation and distributes socket-welded full coils in India. We provide competitive CS Socket Weld Full Coupling prices in India. Rajdhan Metal is committed to offering cost-effective solutions without compromising quality, making us a preferred supplier.
For reliable carbon steel socket welding full coupling suppliers, choose Rajdhan Metal for top-notch products, precision engineering, and competitive prices.
Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB |
Types | Socketweld Fittings, Screwed-Threaded Fittings |
Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Manufacturer, Supplier, Exporter and Distributor of black forged steel SW couplings in Mumbai, India. Check socket weld full coupling price and dimensions as per ASME B16.11
CS Socket Weld Full Coupling Price Per Piece | Price in INR | Price in Saudi Riyal | Price in UAE Dirham |
Carbon Steel Full Coupling 3000 lbs Socketweld End | Rs. 77.63 | Saudi Riyal 37.50 | UAE Dirham 36.74 |
Full Coupling Connection Socket Weld Carbon Steel | Rs. 116.44 | Saudi Riyal 22.50 | UAE Dirham 22.04 |
Forged Carbon Steel SW Full Coupling Price List | Rs. 895.77 | Saudi Riyal 46.69 | UAE Dirham 45.74 |
6000# CS Socket Weld Full Coupling Size 3/4 Cost | Rs. 419.54 | Saudi Riyal 21.87 | UAE Dirham 21.42 |
Carbon Steel 2 Socket Weld Coupling Rate | Rs. 523.13 | Saudi Riyal 27.27 | UAE Dirham 26.71 |
Forged Carbon Steel 3 Socket Weld Coupling | Rs. 487.80 | Saudi Riyal 25.43 | UAE Dirham 24.91 |
Full Coupling Carbon Steel 4 Socket Weld Coupling | Rs. 478.80 | Saudi Riyal 26.39 | UAE Dirham 29.81 |

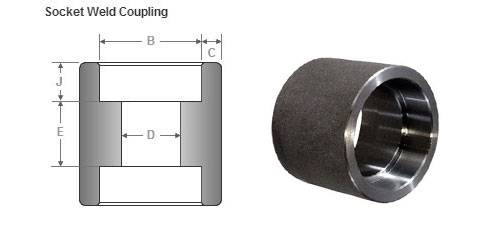

NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
B | J | D | C | Coupling E |
||
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
9.5 | |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
9.5 | |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
13 | |
1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
13 | |
1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
13 | |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
19 | |
2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
19 | |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
19 | |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
19 |
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
B | J | D | C | Coupling E |
||
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
9.5 | |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
9.5 | |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
13 | |
1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
13 | |
1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
13 | |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
19 |
Rajdhan Metal offers high-quality and cost-effective carbon steel socketweld full coupling in India. View socket weld full coupling weight chart.
Nominal Pipe Size (NPS) | Coupling Size | Weight (lbs) |
1/2 | 1/2 | 0.12 |
3/4 | 3/4 | 0.23 |
1 | 1 | 0.42 |
1 1/4 | 1 1/4 | 0.68 |
1 1/2 | 1 1/2 | 0.93 |
2 | 2 | 1.60 |
2 1/2 | 2 1/2 | 2.80 |
3 | 3 | 4.50 |
4 | 4 | 8.30 |
