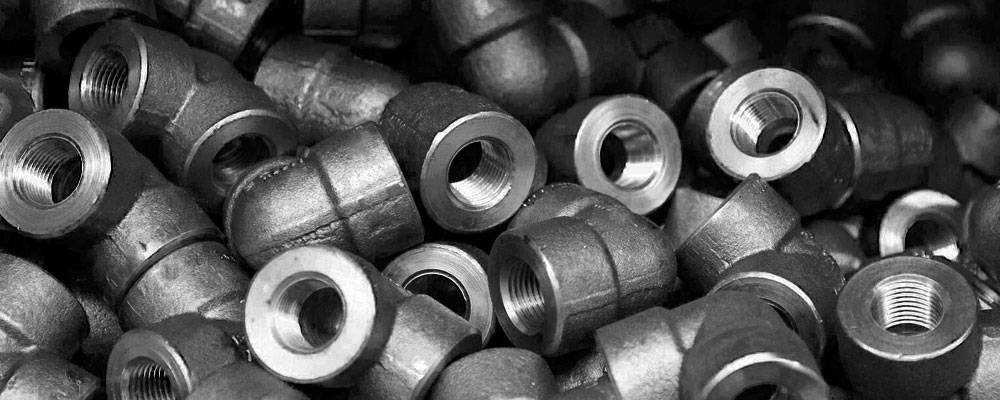

Introduction to ASTM A105 Carbon Steel Elbow

Carbon Steel ASTM A105 Forged Elbows are metal connections that join straight pipe sections. They prevent clogging during welding, plumbing, and ventilation applications and can withstand high temperatures. These forged elbows come in various sizes and can be conveniently purchased from our nearby location in Mumbai. However, before purchasing one, it is important to take note of the material type and specifications. ASTM A105 Forged Elbows are primarily used for changing the flow direction in piping systems at 90-degree or 45-degree angles and are commonly seen in smaller diameter systems.

ASTM A105 Forged Steel Socket Weld & Threaded Elbow, Carbon Steel Forged Elbow at Best Price, ASTM A105 Elbow, A105 Forged Carbon Steel Elbow Manufacturers in India.

Table of Content
Manufacturing of Forged Elbow in Factory

A105N Elbows, ASTM A105 45 Deg Elbows, ASME B16.11 High Pressure Forged CS Elbow, SA105 CS 90 Degree Elbows, Supplier of ASME SA 105 Street Elbow.

Specifications and Characteristics of ASTM A105 Forged Elbows

ASTM A105 is a specification primarily used to produce carbon steel forged piping components. The alloy comprises low carbon, manganese and silicon content steel that can be formed at temperatures ranging between 2200 F to 1700 F with closed die forging processes, after which quenching and tempering or normalization must be done to finish forging operations. It can be utilized across many industries but is particularly well suited to high-pressure applications requiring fittings that can withstand wear-and-tear as well as corrosion-proof fittings that withstand wear-tear damage.

Composition and Versatility of A105 Elbow Fittings in Industry

A105 Elbow Fittings are suitable for connecting various pipe connections that transport fluids or gases. Available in various shapes, sizes, finishes and threading methods - they can even be threaded or welded - they're often employed within the oil and gas industry to regulate flow through systems.

ASTM A105 Elbows
Rajdhan Metal

Standards and CS Forged Elbow Thread Type

Carbon Steel Forged elbows that conform to the ASME B16.11 standard come in straight and reduced types and 90° and 45 ° angles. Forged fittings typically adhere to specific thread types, mostly NPT and BSP. NPT threads feature tapered designs, while BSP has parallel ones. Each type has advantages and disadvantages, so it is important to understand their differences before selecting the best thread type for your needs.

Rajdhan Metal: Pioneers in Manufacturing ASTM A105 Forged Elbows

Rajdhan Metal is an established manufacturer, supplier and exporter of Carbon Steel ASTM A105 Forged Elbow as well as other Forged Pipe Fittings made of Carbon Steel ASTM A105 such as Crosses, Socket weld Unions, Threaded Coupling, A105 Equal Tees and Full Couplings manufactured to client specifications for optimal client experience. We manufacture all our products according to client needs for optimal client experience!

ASTM A105 Elbow Material Specification

Specifications ASTM A105 , ASME SA 105
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Thread NPT, BSPT, BSPP
Connection Socket Welded (male or female), Screwed-Threaded Fittings
Types of Elbow in Piping Threaded Elbow, Socket Weld Elbow, 45 Deg Elbow, 90 Deg Elbow, Street Elbow
Pressure Rating Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding 3000, 6000, 9000 LBS
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Comprehensive Quality Testing of A105 Forged Carbon Steel Elbows

Our expert team works diligently to ensure our A105 Forged Carbon Steel Elbows are made from only high-grade material sourced from reliable vendors. Each sample undergoes stringent quality tests such as positive material identification, intergranular corrosion test, radiographic inspection and tensile test before being visually inspected for any imperfections that could reduce performance or efficiency.

Packaging and Documentation of Forged Fittings - Elbow A105

Our forged carbon steel elbow a105 come packed in wooden boxes, crates, or cartons, depending on the order quantity and are then wrapped with plastic wrap to protect them from transit and storage damage. Custom packaging options can also be requested to ensure that our product arrives in perfect condition; all forged pipe fittings products come complete with a commercial invoice, HS code number, raw material test report, disinfection report, and specification guide documentation.

ASTM A105 Carbon Steel Forged Pipe Elbow Types

Carbon Steel ASTM A105 Elbow

Carbon Steel ASTM A105 Forged Elbow

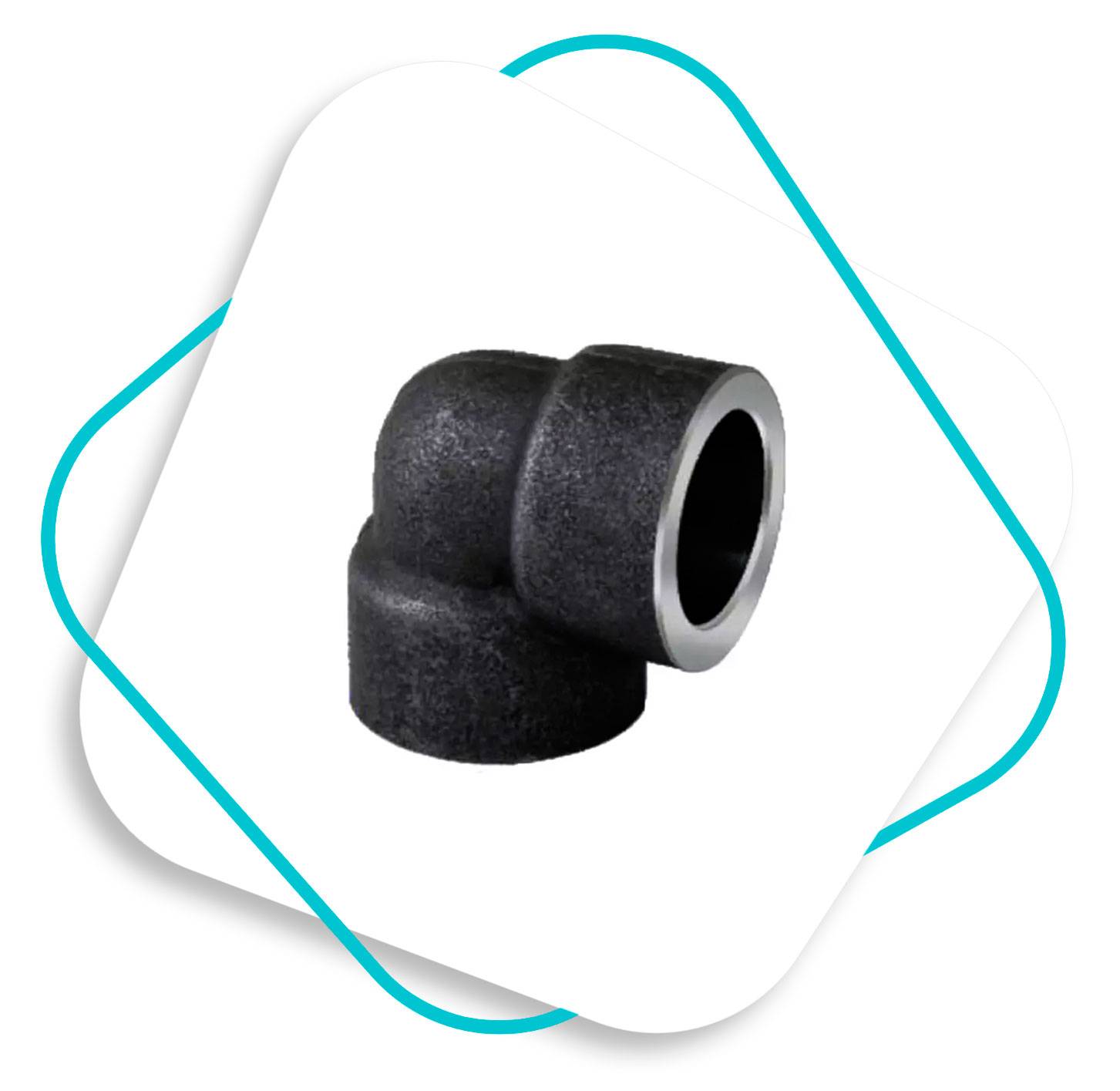

ASTM A105 Forged Socket weld Elbow

ASTM A105 Socket weld Elbow

Carbon Steel ASTM A105 90 Deg Socket weld Elbow

ASTM A105 Socket weld 90 Deg Elbow

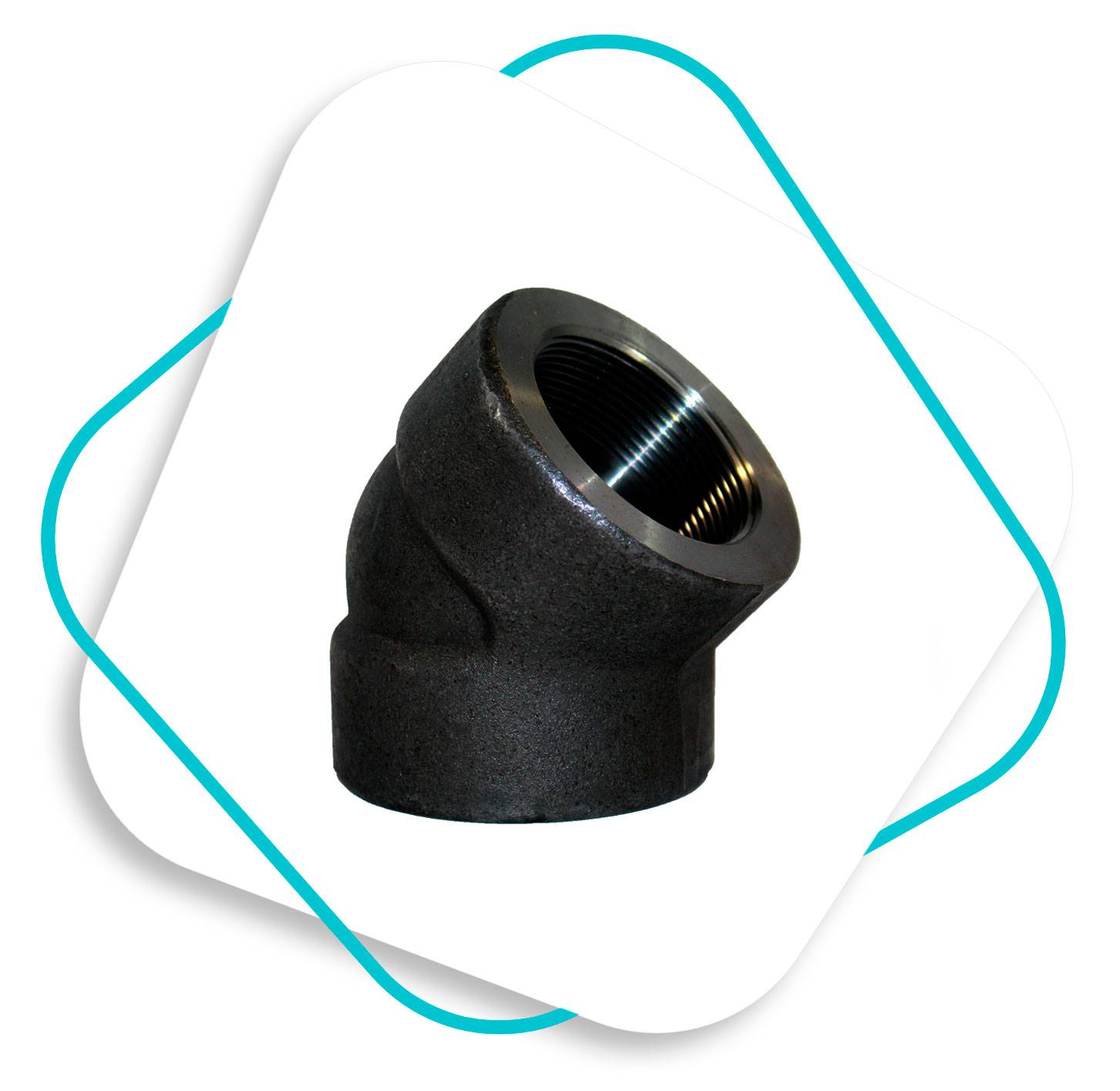

Carbon Steel ASTM A105 45 Deg Socket weld Elbow

ASTM A105 Socket weld 45 Deg Elbow

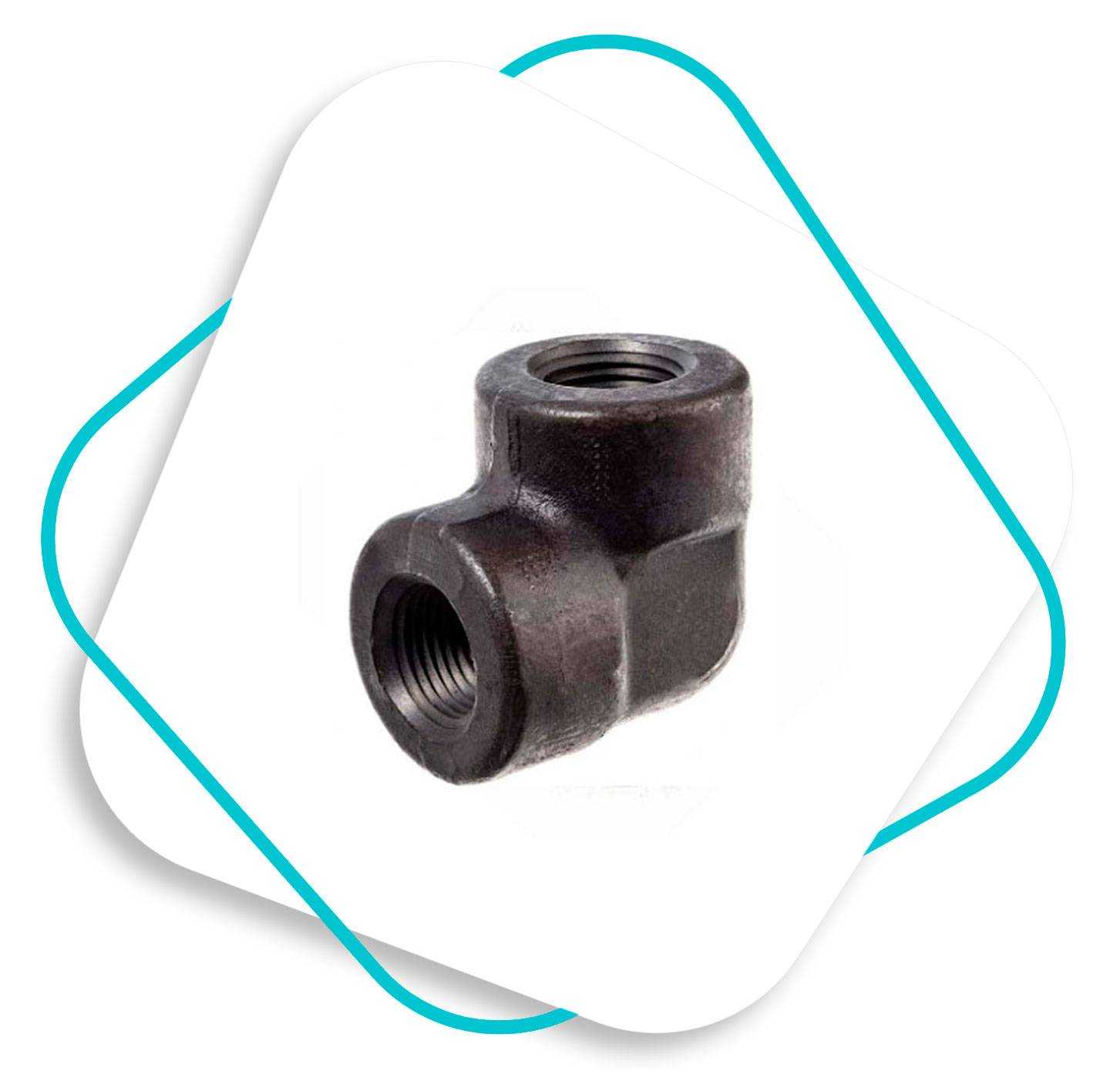

Carbon Steel A105 Threaded Elbow

ASTM A105 Forged Threaded Elbow

ASTM A105 90 Deg Threaded Elbow

ASTM A105 Threaded 90 Deg Elbow

ASTM A105 45 Deg Threaded Elbow

A105 CS Threaded 45 Deg Elbow

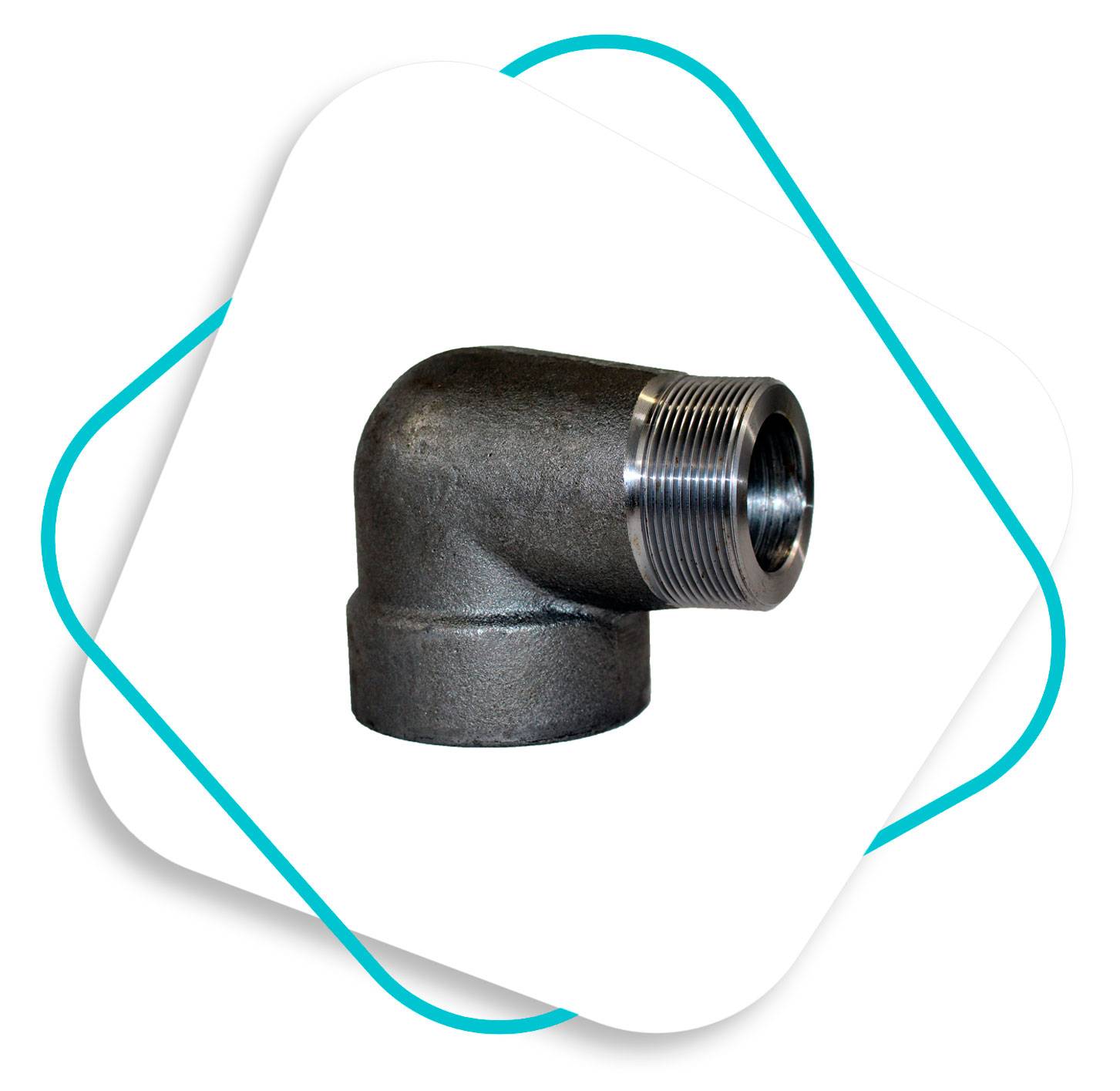

ASTM A105 Street Elbow

Forged Steel SA105N Street Elbow

Check Price List and Dimensions of Black Steel A/SA105N NPT Elbows.

ASTM A105 Elbow Dimensions

NPS (Nominal Pipe Size) : 1/8" to 4"
Degree : 45 Deg, 90 Deg
End type : Socket weld or threaded
Pressure rating: Class 2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs

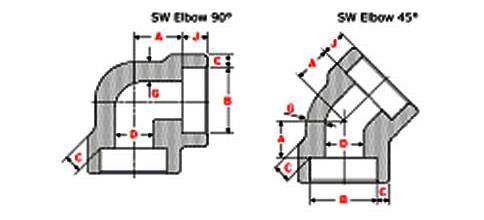

ASTM A105 Socket Weld Elbow Dimensions

Socket Weld Elbow Dimensions
Normal Pipe Size (NPS) Socket Weld
Bore		 Depth
Socket Weld		 Bore
diameter		 Socket Weld
wall thick.		 Body
wall thick.		 Center to bottom
of Socket Weld
A
B J D C G 45°
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 11.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 12.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 14
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 17
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 21
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 25
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 29
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 31.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 41.5

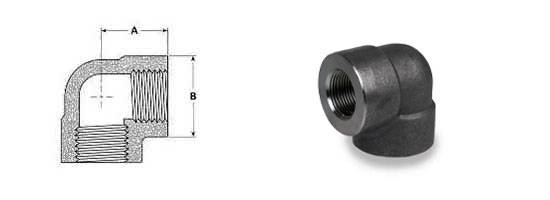

ASTM A105 Threaded Elbow Dimensions

Threaded Elbow Dimensions

Class 2000		 Nominal
Pipe
Size		 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4 1 1/2 2" 2 1/2 3" 4"
A – 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B – 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
Wt – 0.198 0.283 0.500 0.773 1.013 1.550 2.180 3.140 6.500 10.925 26.675
Class 3000
A 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
Wt 0.236 0.350 0.592 0.973 1.355 2.265 2.407 3.500 5.920 11.900 14.438 31.975
Class 6000
A 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 3/16 4 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.250 0.625 1.023 1.625 2.625 3.500 6.750 7.500 13.438 20.875 39.050 38.000
Normal Pipe Size Min. Length
of Thread		 O.D. Diameter
of Band		 Min.
Weight		 Center to End
B J D G 45°
C
1/2 10.9 13.6 33 3.18 22
3/4 12.7 13.9 38 3.18 25
1 14.7 17.3 46 3.68 28
1.1/4 17 18 56 3.89 33
1.1/2 17.8 18.4 62 4.01 35
2 19 19.2 75 4.27 43
2.1/2 23.6 28.9 92 5.61 52
3 25.9 30.5 109 5.99 64
4 27.7 33 146 6.55 79

ASTM A105 Screwed Street Elbow Dimensions

DN Nom. H A J G1 G2¹ B² L2² L
Pipe (Min.) (Min.)
Size 3000 6000 3000 6000 3000 6000 3000 6000 3000 6000 （Min.) (Min.)
6 1/8″ 19 25 19 22 25 32 3.18 5.08 2.74 4.22 6.4 6.7 10
8 1/4″ 25 32 22 25 32 38 3.3 5.66 3.22 5.28 8.1 10.2 11
10 3/8″ 32 38 25 28 38 41 3.5 6.98 3.5 5.59 9.1 10.4 13
15 1/2″ 38 44 28 35 41 48 4.09 8.15 4.16 6.53 10.9 13.6 14
20 3/4″ 44 51 35 44 48 57 4.32 8.53 4.88 6.86 12.7 13.9 16
25 1″ 51 62 44 51 57 66 4.98 9.93 5.56 7.95 14.7 17.3 19
32 1-1/4″ 62 70 51 54 66 71 5.28 10.59 5.56 8.48 17 18 21
40 1-1/2″ 70 84 54 64 71 84 5.56 11.07 6.25 8.89 17.8 18.4 21
50 2″ 84 102 64 83 84 105 7.14 12.09 7.64 9.7 19 19 22

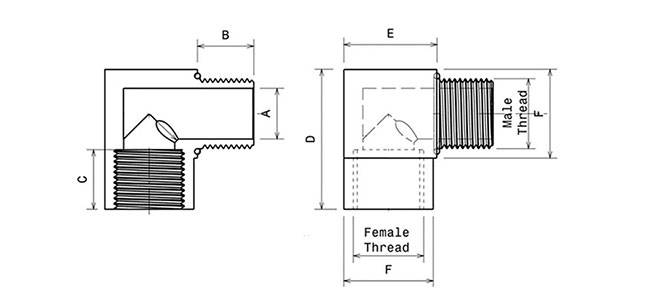

ASME SA 105 Threaded Male & Female Elbow Dimensions

Threaded Male & Female Elbow Dimensions
NPS (Normal Pipe Sizes) Min. Length
of Thread		 O.D.
of Band		 Min
WT		 Center to End
B J D G 90°
A 		45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1.1/4 17 18 75 10.59 60 43
1.1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2.1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79

Looking for astm a105 forged threaded elbow with BSPT or NPT connections? Rajdhan Metal is a renowned manufacturer and stockist of carbon steel a105n male and female elbow, available in class 3000 or 6000 pressure ratings. Contact us for the best prices and a free quote.

Specialized in Following ASME B16.11, SA105 Forged Carbon Steel Elbow

  • Buy SA 105N Socket Weld Carbon Steel Forged Elbow
  • Carbon Steel ASTM A105 Screwed Elbows Suppliers
  • Forged Carbon Steel ASTM A105 Industrial Elbows
  • ASTM A105 Elbow Manufacturer
  • Carbon SA105 Male Threaded Elbow
  • Stockists of SA 105 Forged Steel BSPT Elbow
  • ASTM A105 45 Degree Carbon Steel Forged Elbow
  • ASTM A105 Socket Weld Pipe Elbows
  • Forged Carbon Steel A105 Screwed Elbows
  • Carbon Steel Forged A105 High Pressure Elbows
  • ASTM A105 90 Degree Carbon Steel Forged Elbow
  • Carbon Steel A105 Class 6000 Forged Elbows
  • ASME B16.11 Carbon Steel SA105 Threaded Elbow
  • Carbon Steel A105 NPT Threaded Street Elbow
  • SA 105 Galvanized Carbon Steel Forged Elbow
  • ASTM A105N 3000lbs NPT Elbows
  • FNPT End, 3000#, 1/2 NPS, A105N Elbow
  • 2000 LB, 1 1/2 Inch ASTM A105 Elbow
  • Carbon Steel A105 BSP Elbows
  • Class 3000, 1 1/3 Inch ASTM A105 Elbow
  • Class 3000, 2 Inch A105 Carbon Forged Steel Elbows
  • ASTM A105 Forged Elbows Manufacturer In India
  • Steel A105 Forged Elbow Wholesaler
  • Manufacturer of A105 Elbows
  • 1 NPS, ASME SA105 Carbon Steel Elbow
  • Carbon Steel A105 Female Threaded Elbow
  • Carbon Steel ASTM A105 BSP Elbows
  • CS ASME SA105N Class 6000 Threaded Pipe Elbows
  • Carbon Steel Forged A105 45 Degree NPT Elbow
  • Steel Forged ASTM A105 Elbow Supplier in India
  • ASTM A105 Elbow Suppliers
  • Supplier of A105N CS NPT Threaded Pipe Elbows
  • Carbon Steel A105 BSP Threaded Forged Elbows Dealer
  • Exporter of ASTM A105 Threaded Carbon Steel Forged Elbow
  • Carbon Steel A105 Forged High Pressure Elbows
  • A105 Forged Steel Elbows Supplier
  • A105 High Pressure Carbon Steel Forged Elbow
  • Class 6000, 2 Inch, ASTM A105 Elbow
  • Manufacturer of Forged Carbon Steel A105 Elbows
  • 1 1/4 NPS, SW End, SA105 CS Elbow

Forged Carbon Steel ASTM A105 Elbows Price List

ASTM A105 Black Steel Forged Elbow Price in INR Price in USD Price in UAE Dirham
ASTM B16.11 A105 High Pressure Socket Welding 90 Degree Elbow 916.82 $14.15 UAE Dirham 49.30
Carbon Steel ASTM A105 6000# NPT Thread Female Elbow Price 1811.41 $24.79 UAE Dirham 90.70
ASTM A105 Elbow, 45°, FNPT, 3/4″ Price Per Piece 4309.95 $60.82 UAE Dirham 211.06
Carbon A105 90 Degree Street Elbow Price List 5513.36 $80.37 UAE Dirham 281.93

ASTM A105 Forged Carbon Steel Elbow Weight Chart

DN SIZE CLASS 3000 (Socket Weld) DN SIZE CLASS 6000 (Socket Weld)
Elbow 90 Elbow 45 Elbow 90 Elbow 45
  kg Lb kg Lb   kg Lb kg Lb
1/2 .22 .482 .20 .401 1/2 .40 .92 .36 .71
3/4 .33 .68 .28 .55 3/4 .73 1.52 .57 1.25
1 .53 1.06 .42 .89 1 1.17 2.42 .92 2.03
1 1/4 .84 1.72 .69 1.23 1 1/4 1.48 3.18 1.11 2.17
1 1/2 1.08 2.33 .80 1.76 1 1/2 2.79 6.23 2.01 2.39
2 1.68 3.88 1.35 3.02 2 3.28 7.27 2.90 5.11
2 1/2 3.20 7.34 2.53 7.62 2 1/2 5.48 12.06 3.81 8.37
3 5.38 11.61 5.10 12.49 3 9.62 21.16 5.47 12.02
DN SIZE CLASS 3000 (Threaded) DN SIZE CLASS 6000 (Threaded)
Elbow 90 Elbow 45 Elbow 90 Elbow 45
  kg Lb kg Lb   kg Lb kg Lb
1/2 .43 .92 .34 .76 1/2 .80 1.72 .63 1.41
3/4 .69 1.47 .56 1.23 3/4 1.31 2.76 1.07 2.25
1 1.14 2.33 .94 1.87 1 1.61 3.79 1.27 2.81
1 1/4 1.42 2.98 1.03 2.29 1 1/4 2.93 6.66 2.27 5.28
1 1/2 2.63 5.72 2.05 4.60 1 1/2 3.79 8.39 2.54 6.16
2 2.92 6.53 2.23 5.50 2 7.31 13.74 4.37 10.04
2 1/2 5.99 11.03 3.71 7.84 2 1/2 9.88 23.24 7.01 15.63
3 8.88 18.83 5.97 13.52 3 16.43 36.22 14.16 30.54
Industrial Applications

Carbon Steel ASME SA105N Elbow Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
  • Fire Fighting
  • HVAC & MEP

Are you in search of a reliable manufacturer of ASTM A105 Forged Carbon Steel Elbows in Mumbai, India? We offer high-quality ASME SA105 Elbows at competitive prices.

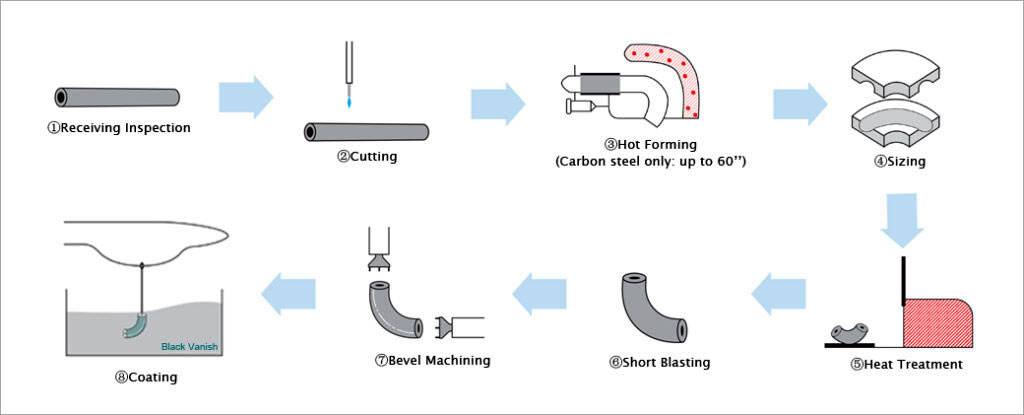

Carbon Steel Forged Elbow Manufacturing Process

Forged Elbow Manufacturing Process
