Rajdhan Metal is a well-known producer and supplier of Carbon Steel Branch Buttweld Pipe Fitting. We manufacture these Buttweld Pipe Fittings in all Carbon Steel grades. ASTM A105 is one of the acceptable grades that are ideal for the production of Forged Buttweld Pipe Fittings. Carbon Steel ASTM A105 is austenitic carbon steel containing 18% chromium, 8% nickel, and 0.08 percent carbon. Chromium-Nickel austenitic alloy is another name for it. This ASTM A105 grade includes several characteristics and benefits that make Buttweld Pipe Fittings the most suited and long-lasting. We manufacture these exceptional quality Carbon Steel A105 Forged Branch Buttweld Pipe Fittings in both bespoke and non-customized forms, taking into account the demands of our esteemed clients.

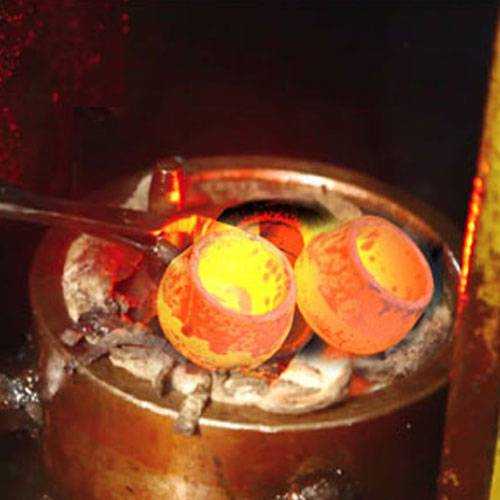

We adhere to quality and safety norms and have dedicated ourselves to accuracy. We have always prioritised providing exceptional products and services. We invest in more trustworthy resources, technology, and machinery. We are manufacturers, producers, and exporters of Carbon Steel Buttweld Pipe Fittings that can operate in temperatures ranging from ambient to high. Carbon Steel A105 Forged Buttweld Pipe Fittings are ductile low carbon Buttweld Pipe Fittings that provide a 90° branch on the pipeline. Forging is used to manufacture our Carbon A105 Steel Forged Buttweld Pipe Fittings, which may then be normalised to reduce internal tension.
Our CS A105 Forged Buttweld Pipe Fittings, which are easily machinable and weldable, link big diameter pipes and are frequently attached to thermowells, which function at highly variable, extreme temperatures. Our experienced staff advises us on all aspects of the manufacturing process, including raw material selection, storage, and packing. During storage and transportation, we make every effort to preserve our goods from heat, air, or water damage. For this, we adhere to all of our respected client's technical and packing criteria. We strive to provide strong and lasting goods that decrease maintenance costs. Our goods are suitable for a wide range of industrial applications, and we provide the quickest delivery with little damage.
Standards | ASTM A105, A350 / ASME SA105 SA350 |
Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
Size | 1/8"-4" (DN6-DN100) |
Thickness | SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 120S |
Class | 3000LBS, 25070LBS, 9000LBS |

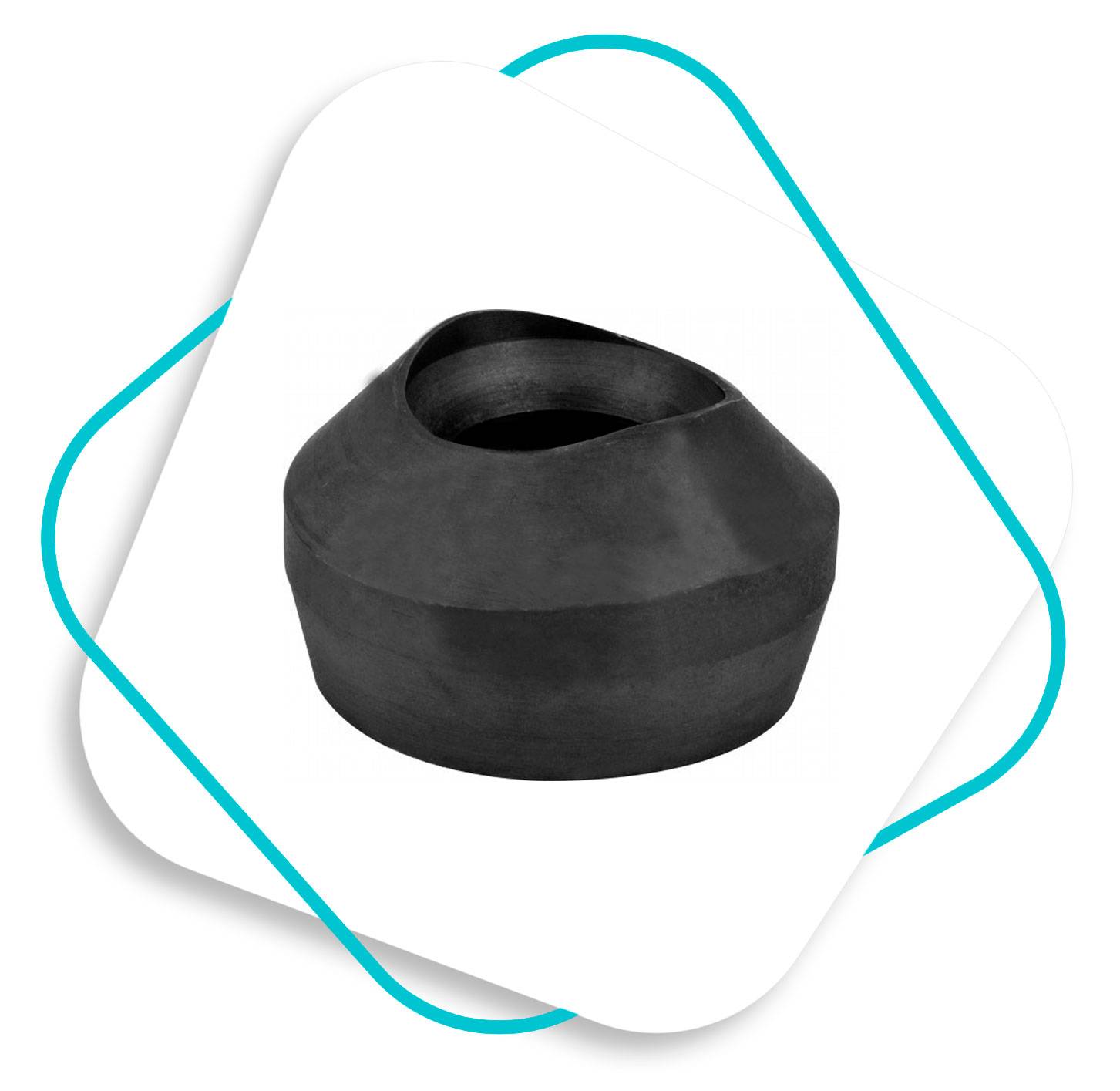

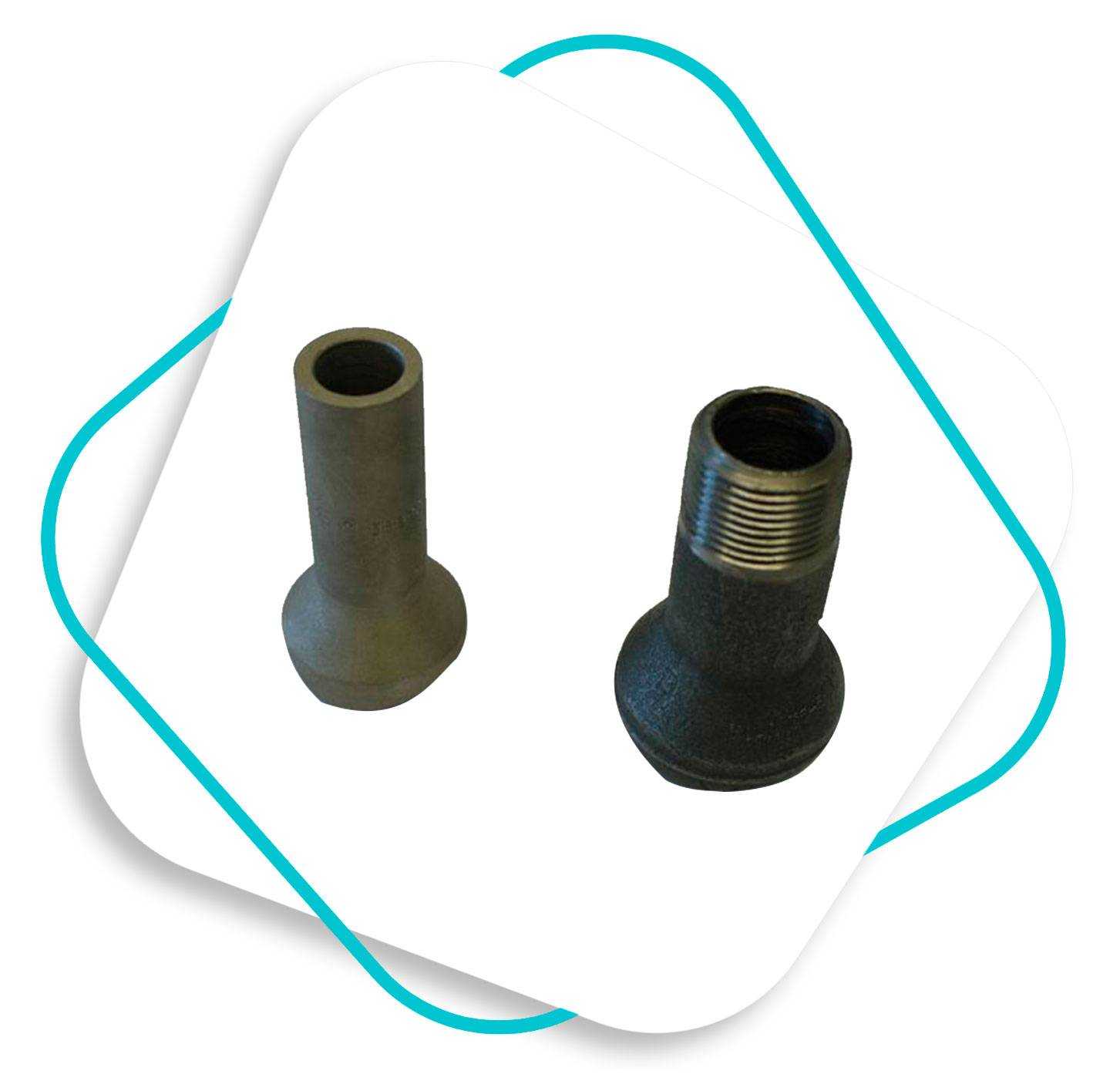

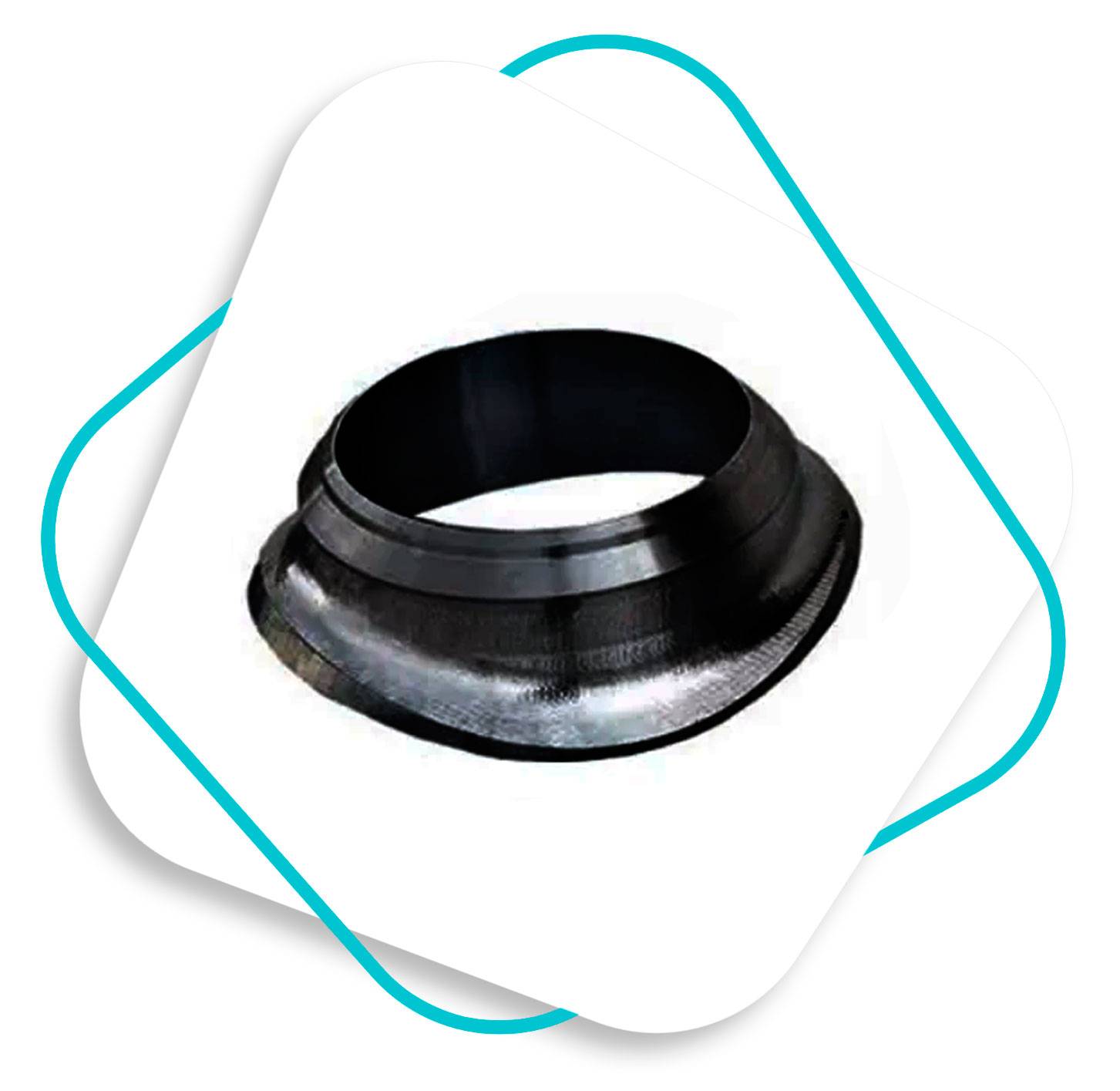

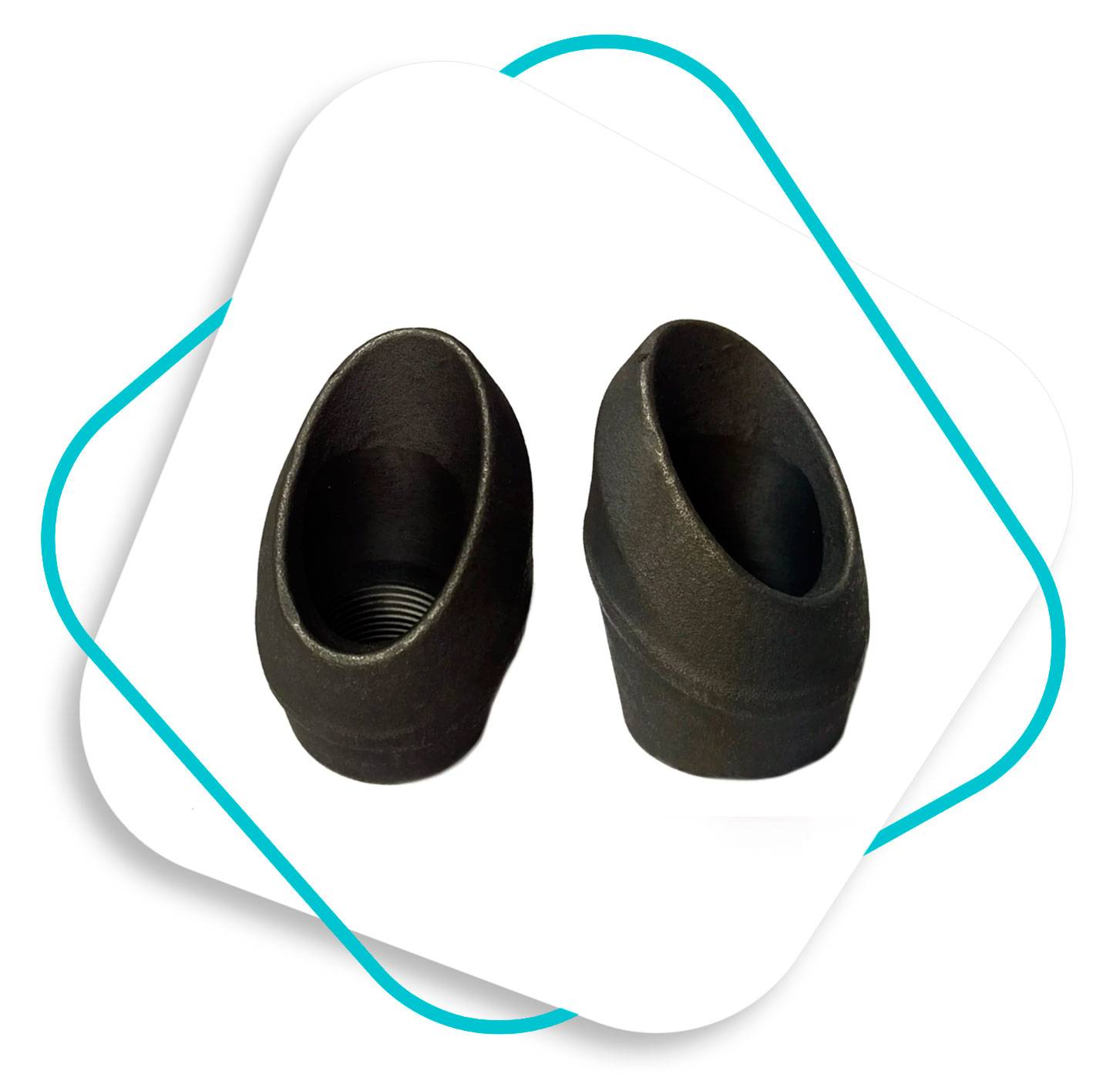

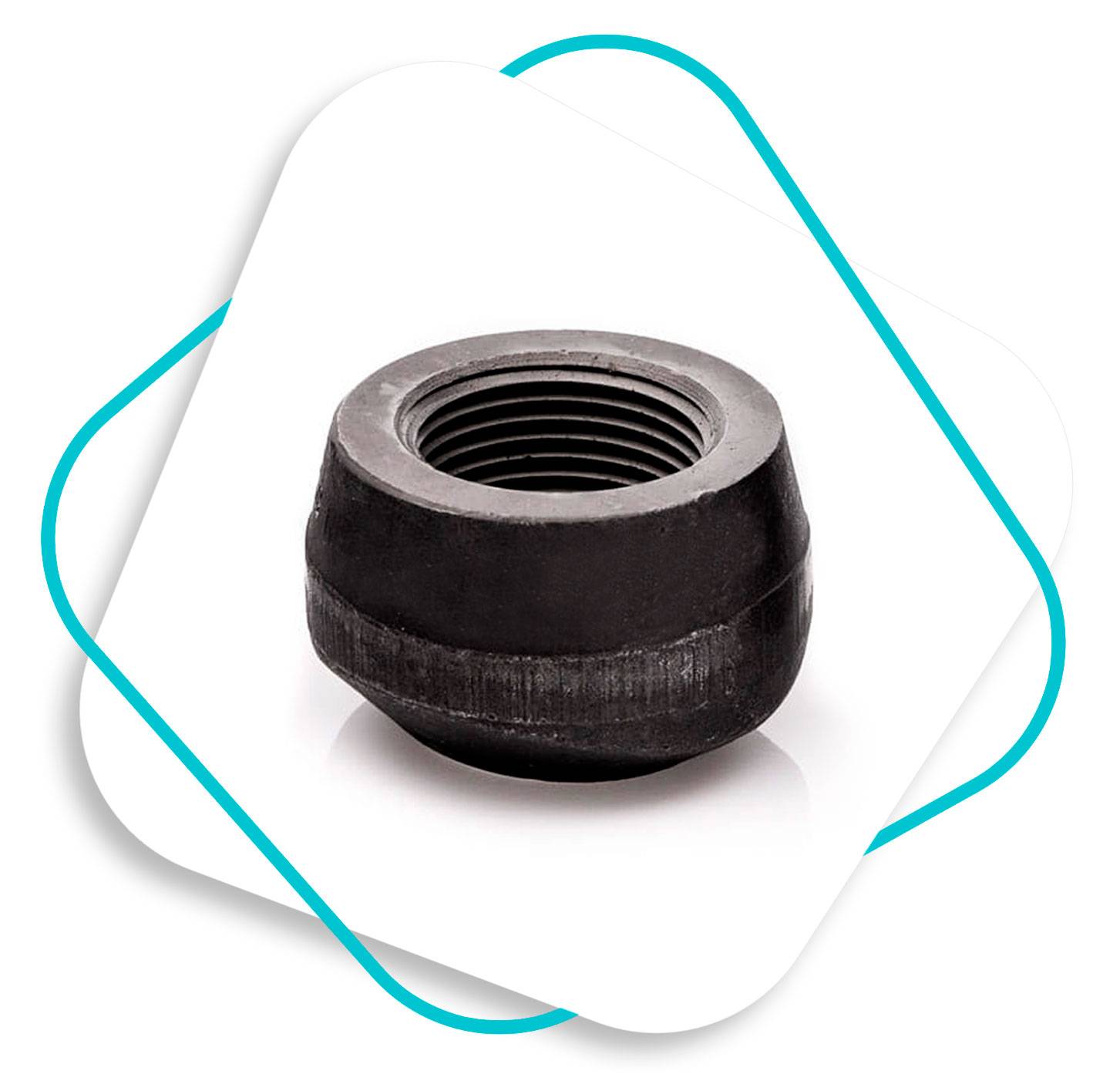

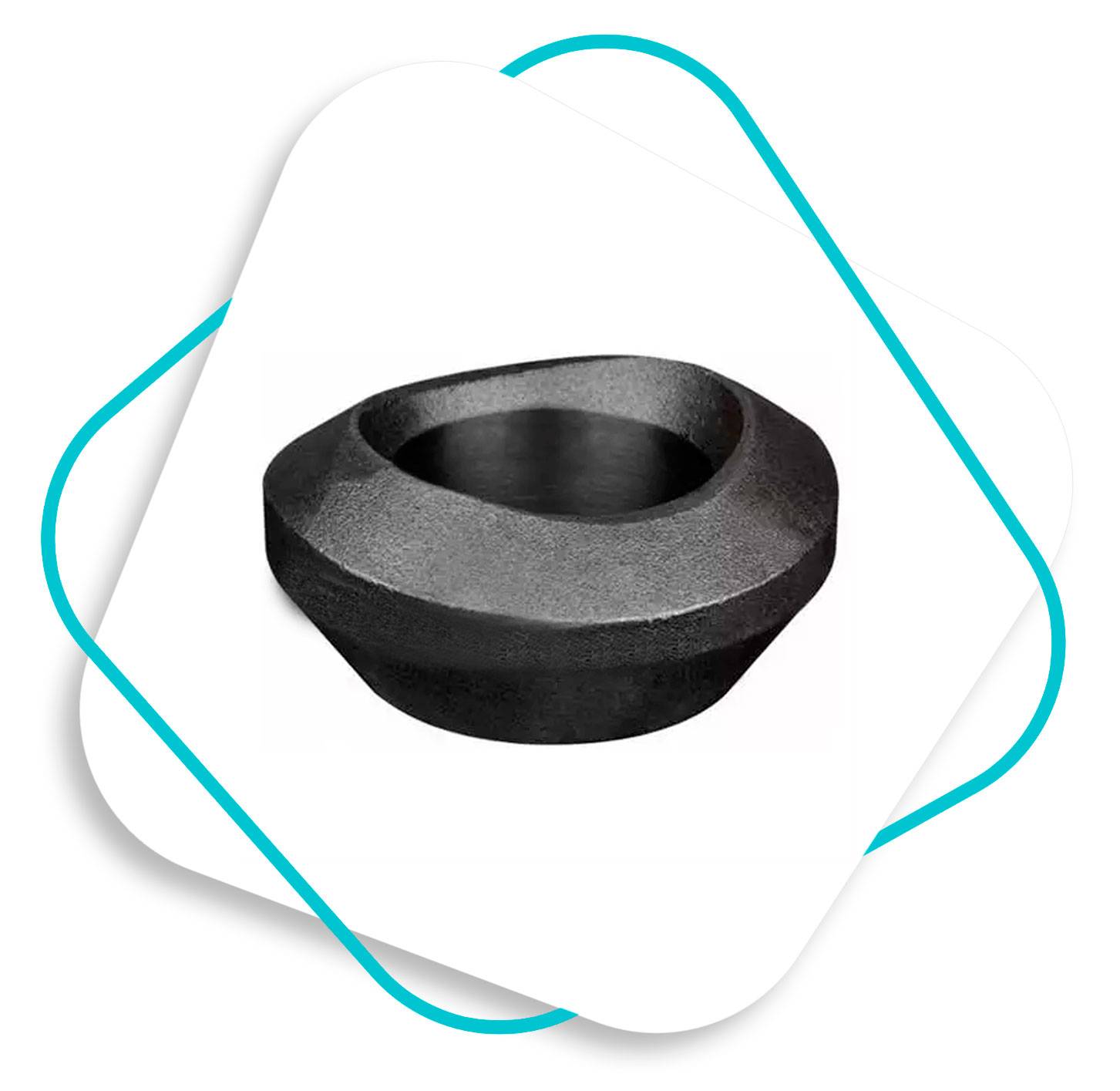

Types | Socket Weld (S/W) & Screwed (SCRD), Threadolet, Latrolet, Weldolet, Sockolet, Nippolet, Flexolet Threaded and Sweepolet, Flexolet butt-weld. |
Connect Type | Welded, threaded, BW, SW |
Origin | Indian Origin, European Origin, Japanese Origin |
Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
Check Price List and Dimensions of Black Carbon Steel Branch Connection Fittings.
ASTM A105, A350 / ASME SA105 SA350 | Standard Specification for Branch Buttweld Pipe Fittings |
ASME B16.11 | Forged, Socket – Welding and Threaded |
MSS SP-97 | Integrally Reinforced Forged Branch Olet Fittings – Socket Welding, Threaded and Buttwelding Ends |
ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: | EN10253-1, EN10253-2 |
Olet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
---|---|---|---|---|---|---|
1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
PIPE SIZE | CLASS 3000 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
A | 0.750 | 0.750 | 0.813 | 1.000 | 1.063 | 1.313 | 1.313 | 1.375 | 1.500 | 1.813 | 2.000 | 2.125 | 2.250 |
C | 0.269 | 0.364 | 0.493 | 0.622 | 0.824 | 1.049 | 1.380 | 1.610 | 2.067 | 2.469 | 3.068 | 3.548 | 4.026 |
LBS | 0.07 | 0.12 | 0.16 | 0.27 | 0.36 | 0.59 | 0.84 | 1.00 | 1.53 | 2.66 | 3.72 | 4.40 | 7.05 |
PIPE SIZE | CLASS 6000 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
A | 1.125 | 1.125 | 1.125 | 1.250 | 1.438 | 1.563 | 1.625 | 1.688 | 2.063 | 2.688 | 2.688 | — | 3.313 |
C | 0.157 | 0.250 | 0.359 | 0.464 | 0.612 | 0.815 | 1.160 | 1.338 | 1.687 | 2.125 | 2.624 | — | 3.438 |
LBS | 0.15 | 0.30 | 0.30 | 0.48 | 0.81 | 1.30 | 1.54 | 1.97 | 5.01 | 6.19 | 7.36 | — | 14.02 |
PIPE SIZE | CLASS 9000 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
A | — | — | — | 1.250 | 1.469 | 1.625 | 1.750 | 1.768 | 2.000 | 2.438 | 2.750 | — | 3.313 |
C | — | — | — | 0.252 | 0.434 | 0.599 | 0.896 | 1.100 | 1.503 | 1.771 | 2.300 | — | 3.152 |
LBS | — | — | — | 0.55 | 0.80 | 1.40 | 1.88 | 2.10 | 3.35 | 6.48 | 11.11 | — | 17.69 |
Olet Size (NPS) | A | B | C | D | E | Approx. Weight (lb) |
---|---|---|---|---|---|---|
1/2 | 1 1/4 | 1 23/32 | 3/4 | 0.466 | 7/8 | 0.50 |
3/4 | 1 7/16 | 1 61/64 | 1 | 0.614 | 7/8 | 0.80 |
1 | 1 9/16 | 2 7/16 | 1 5/16 | 0.815 | 15/16 | 1.30 |
1 1/4 | 1 5/8 | 2 23/32 | 1 1/2 | 1.160 | 13/16 | 1.60 |
1 1/2 | 1 11/16 | 3 1/4 | 1 15/16 | 1.338 | 7/8 | 2.00 |
2 | 2 1/16 | 4 1/32 | 2 3/4 | 1.689 | 1 3/16 | 5.15 |
Carbon Steel Nipple Buttweld Pipe Fitting | FOB Price: US $2-500 / Piece (FOB Price) |
Carbon Steel Threading Buttweld Pipe Fitting | FOB Price: US $3-300 / Piece (FOB Price) |
Carbon Steel Insert Weldolet | FOB Price: US $2-100 / Piece (FOB Price) |
Low Temperature Carbon Steel Brazolet | FOB Price: US $4-100 / Piece (FOB Price) |
Stockholders of Carbon Steel Threaded Pipe Buttweld Pipe Fittings | FOB Price: US $2-400 / Piece (FOB Price) |
Carbon Steel A350 LF2 Forged Branch Buttweld Pipe Fittings Fittings | FOB Price: US $2-250 / Piece (FOB Price) |
Suppliers of Carbon Steel Pipe Buttweld Pipe Fittings | FOB Price: US $3-160 / Piece (FOB Price) |
A350 LF3 LTCS Buttweld Pipe Fittings Pipe Fittings Traders in India | FOB Price: US $3-220 / Piece (FOB Price) |
1/2" NPT Black Carbon Steel Threaded Buttweld Pipe Fitting | FOB Price: US $2-300 / Piece (FOB Price) |
CS Forged Socket weld Branch Buttweld Pipe Fitting Fittings | FOB Price: US $2-400 / Piece (FOB Price) |
Carbon Steel A105 Branch Buttweld Pipe Fittings Fittings | FOB Price: US $3-250 / Piece (FOB Price) |

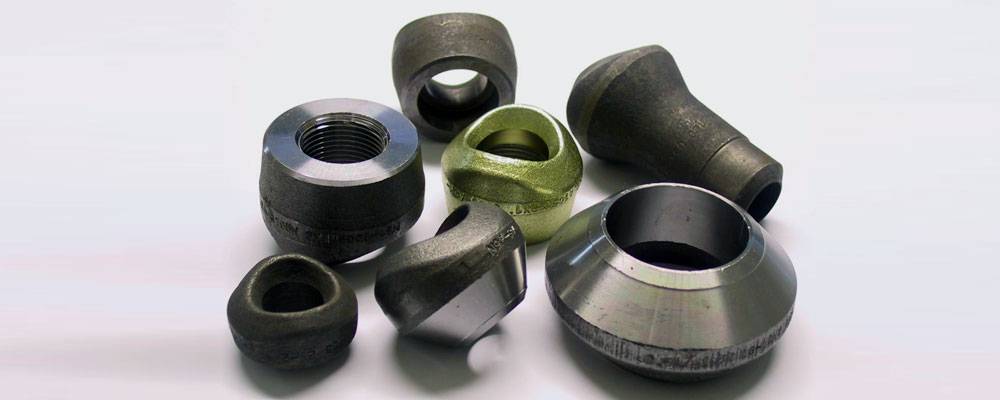

Carbon Steel Branch Connection Fitting | FOB Price: US $2-160 / Piece (FOB Price) |
