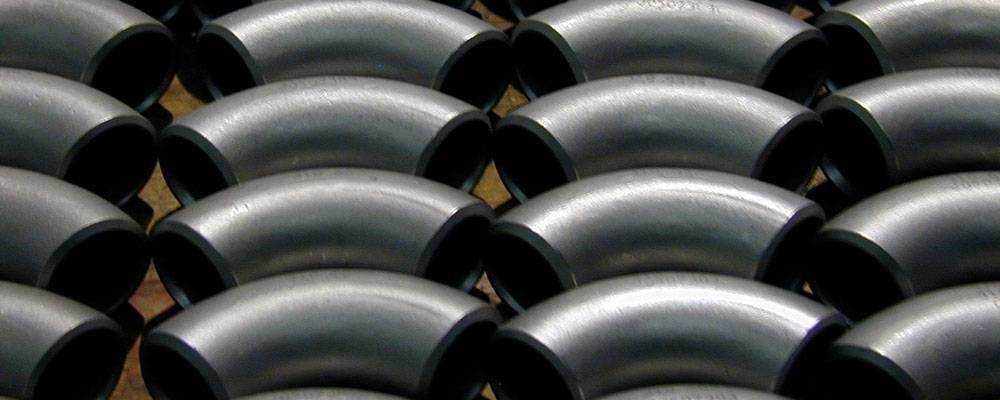

The ASME B16.9 Elbow is a durable and reliable fitting used to join two pieces of pipe at an angle. It is manufactured according to the highest quality standards outlined in the American Society of Mechanical Engineers (ASME) Standard B16.9, ensuring long-term performance and offering superior resistance to corrosion and physical damage. This elbow fitting is available in a variety of materials including carbon steel, stainless steel, aluminum, brass, copper, Hastelloy®, Incoloy®, Inconel®, Monel®, and titanium for maximum compatibility with a range of piping systems.
The ASME B16.9 Elbow can be used in low-pressure applications such as HVAC systems or in high-pressure applications such as nuclear and power plants. This fitting comes in both buttweld and socket weld designs, allowing for quick and easy installation with no additional fittings or equipment needed. With its robust construction and reliable performance, the ASME B16.9 Elbow is an essential component for any piping system.
- What is ASME B16 9 Elbow?
- ASME B16.9 Elbow Material Specification
- ASME B16.9 Elbow Types
- ASME B16.9 Elbows Dimensions
- Specialized in Following ASME B16.9 Elbows
- ASME B16 9 Elbow Price List
- ASME B16.9 Elbow Weight Chart
- ASME B16 9 Standard
- ASME B16 9 Tolerance Chart
- ASME/ANSI B16.9 Elbow Industrial Applications
B16 9 Pipe Elbows Suppliers, ASME B16.9 45 Degree Elbow, ASME B16 9 90 Deg Elbow, ASME B16.9 Material Buttweld Pipe Elbows, ASME B16.9 SCH 40 180 Deg Elbow.

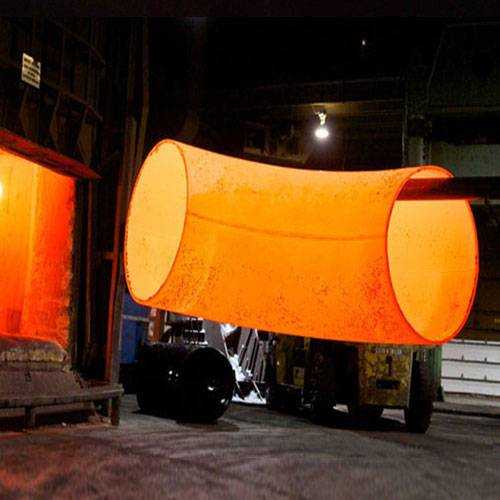

What is ASME B16 9 Elbow?
ASME B16.9 Elbows from Rajdhan Metal make it easy to join two lengths of pipes together in a
variety of positions. These elbows are perfect for low- and high-pressure applications, and they allow
you to form or change the direction of the flow of fluids and gases without adding additional
components like reducers or caps.
Our ASME B16.9 elbows come in a wide range of sizes ranging from 1/2" up to 24". They can be made from any pipe material including carbon steel, stainless steel, alloy steel, and various grades such as 304L, 316L, 317L, etc., depending on the application needs.
The seamless construction ensures that our ASME B16.9 elbows are strong, durable, and can withstand extreme temperatures. The ends are beveled for easy welding with no external reinforcement required to increase their strength. All our ASME B16.9 elbows undergo rigorous testing to ensure they meet all the required standards before being shipped out to customers.
At Rajdhan Metal, we take pride in providing high-quality products that exceed customer expectations at competitive prices. We offer a large selection of ASME B16.9 elbows and provide excellent customer service to help you find exactly what you need for your project. With our experienced staff and wide range of products, you can trust us when it comes to finding the perfect fit for your needs
ASME B16.9 Elbows Manufacturer in Mumbai, Schedule 10 ASME B16.9 Seamless Elbows, ANSI B16.9 Butt Welding Elbows, B16.9 Welded Elbows, ASME B16 9 BW Elbows Exporter in India.
ASME B16.9 Elbow Material Specification
| Size | Seamless Buttweld Fittings: 1/2" - 10" Welded Pipe Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D,
7D-40D Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Key markets and industries |
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Long Radius Elbow, Short Radius Elbow, Short Radius 180-deg Rerurns, Reducing Elbows |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Types of ASME B16.9 Elbows in Piping
B16 9 Elbow Manufacturers in India, View ASME B16 9 Elbows Dimension Chart and price list in India.
ASME B16.9 Elbow Dimensions in mm
Long Radius Elbow Dimensions
Short Radius Elbow Dimensions
90 Degree Elbow Dimensions Chart
45 Degree Elbow Dimensions Chart
180 Degree Elbow Dimensions
ASME B16.9 Factory-Made Wrought Buttwelding Fittings, such as Long Radius 90 Degree Elbow, 180 Degree Short Radius Elbow from Mumbai, India. We provide customized sizes of ASME B16.9 Carbon Steel Elbow.
Specialized in Following ASME B16.9 Elbows
- ASME B16.9 Buttweld Elbows Manufacturer
- ASME B16.9 Elbow for Piping Connection
- ASME B16 9 Elbows Manufacturers in India
- Stockists of ASME B16.9 Seamless Pipe Elbows
- ASME B16.9 180 Degree Short Radius Elbow
- Manufacturers of 180 Deg Elbow ASME B16.9
- ASME B16.9 Weld Pipe Elbows
- ASME B16 9 Weldable Elbows
- ASME B16.9 Reducind Elbow
- 2 inch Elbow B16.9 Suppliers
- ANSI B16.9 Elbow Pipe Fitting
- ASME B16.9 Industrial Pipe Elbows
- ASME B16 9 weld on Pipe Elbows
- ASME B16 9 Short Radius Elbow
- ASME B16 9 Standard Materials Elbows
- ASME B16.9 Buttweld Elbow
- ANSI B16.9 12 Inch Pipe Elbows
- ASME B16 9 4 inch Pipe Elbow
- Manufacturers of ASME B16.9 Elbow
- ANSI B16.9 Large Diameter Pipe Elbows
- ASME B16 9 BW Elbows Dealer
- ASME B16.9 Pipe Bend Wholesaler
- ASME B16.9 45 Deg Elbow Stockholder
- ASME B16.9 Long Radius Elbow
- ASME B16.9 90° LR Elbows
- ASME B16.9 Schedule 40 Elbows
- ANSI B16 9 Buttweld 90 Degree Elbows
- Schedule 10 ANSI B16.9 Elbows
- ANSI B16 9 Piping Elbow
- Exporter of B16 9 Schedule 80 Elbow
- ASME B16.9 sch 120 6 inch Elbows
- ASME B16 9 Welding Elbow Distributor
ASME B16 9 Elbow Price List
| Description | Price In INR (Per Piece) |
| B16.9 Elbow | |
|---|---|
| 2" X SCH 40 | 209.00 |
| 3" X SCH 40 | 312.00 |
| 4" X SCH 40 | 456.00 |
| 6" X SCH 40 | 1130.00 |
| ASME B16.9 90 Deg Elbow Price | |
| Schedule 40 90 Degree Elbow | 175.00 |
| 2 inch 90 Degree Elbow | 161.00 |
| 3 Inch 90º Sch 40 Weld on Elbow | 331.00 |
| ASME B16 9 45º SMLS Elbow Price | |
| 6" X SCH 40 | 754.00 |
| 8" X SCH 40 | 1393.00 |
| 10" X SCH 40 | 2300.00 |
| 90 Degree LR Elbow Price List | 90 Degree SR Elbow Price List |
| 45 Deg Long Radius Elbow Price | 45º Short Radius Elbow Price List |
| ASME B16 9 1D Elbow Price List | ASME B16.9 1.5D Elbow Price |
| ANSI B16 9 3D Elbow Price | ASME B16.9 5D Elbow Price List |
ASME B16.9 Elbow Weight Chart
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y |
Wall Thickness T (Pipe Elbow Schedule) |
45 Deg. Elbow LR Centre to Face B | 90 Deg. Elbow LR Weight | 45 Deg. Elbow LR Weight |
90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow SR Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | mm | Schedule | mm | kg | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.08 | 0.04 | 38.1 | – |
| 3.73 | X.S | 15.9 | 0.10 | 0.05 | 38.1 | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.08 | 0.04 | 28.6 | – |
| 3.91 | X.S | 11.1 | 0.11 | 0.05 | 28.6 | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.15 | 0.09 | 38.1 | 0.11 |
| 4.55 | X.S | 22.2 | 0.19 | 0.11 | 38.1 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.28 | 0.14 | 47.6 | 0.18 |
| 4.85 | X.S | 25.4 | 0.39 | 0.2 | 47.6 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.4 | 0.2 | 57.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.5 | 0.25 | 57.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.72 | 0.36 | 76.2 | 0.5 |
| 5.54 | X.S | 34.9 | 1.0 | 0.5 | 76.2 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 1.46 | 0.73 | 95.2 | 0.95 |
| 7.01 | X.S | 44.4 | 1.82 | 0.91 | 95.2 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 2.18 | 1.1 | 114.3 | 1.45 |
| 7.62 | X.S | 50.8 | 2.86 | 1.45 | 114.3 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 4.2 | 2.1 | 152.4 | 2.8 |
| 8.56 | X.S | 63.5 | 5.7 | 2.9 | 152.4 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 6.8 | 3.4 | 190.0 | 4.8 |
| 9.5 | X.S | 79.4 | 10.0 | 5.0 | 190.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 10.1 | 5.1 | 229.0 | 6.8 |
| 10.97 | X.S | 95.2 | 15.3 | 7.7 | 229.0 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 20.4 | 10.2 | 305.0 | 13.6 |
| 12.7 | X.S | 127.0 | 30.9 | 15.5 | 305.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 36.1 | 18.1 | 381.0 | 24.1 |
| 12.7 | X.S | 159.0 | 48.8 | 24.4 | 381.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 53.1 | 26.6 | 457.0 | 35.4 |
| 12.7 | X.S | 190.0 | 70.0 | 35.0 | 457.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 68.1 | 34.1 | 533.0 | 45.4 |
| 12.7 | X.S | 222.0 | 90.0 | 45.0 | 533.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 89.3 | 45.0 | 610.0 | 59.5 |
| 12.7 | X.S | 254.0 | 118.0 | 59.0 | 610.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 113.0 | 56.5 | 686.0 | 75.6 |
| 12.7 | X.S | 286.0 | 150.0 | 75.0 | 686.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 140.0 | 85.0 | 762.0 | 93.5 |
| 12.7 | X.S | 318.0 | 186.0 | 112.5 | 762.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 203.0 | 101.5 | 914.0 | 135.0 |
| 12.7 | X.S | 381.0 | 269.0 | 134.5 | 914.0 | 179.0 | |||
ASME B16 9 Elbow Standard
| ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing Buttweld Pipe Fitting tees, caps, reducers |
ASME B16 9 Elbow Tolerance Chart
| ASME B16.9 Elbow Tolerances | |||||||
| For all fittings | Elbow 90 Deg / Elbow 45 Deg | 180 Deg Returns Elbow | |||||
| Nominal Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | Center to Center Dim. O |
Back to Face Dim. K |
Align- ment of Ends U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
| 12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
| 20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | 3 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | 5 | ….. | ….. | ….. | |
